Operating Instructions
1. System overview
A measuring point consists of the following components:
Transmitter (in the DIN rail housing or field housing)
•
Sensor mount for welding to the pipeline
•
Sensor (union nut, spacer rings, sealing ring for adjusting to the wall thickness)
•
Installation instructions
•
C1- or C3-box
•
Sensor

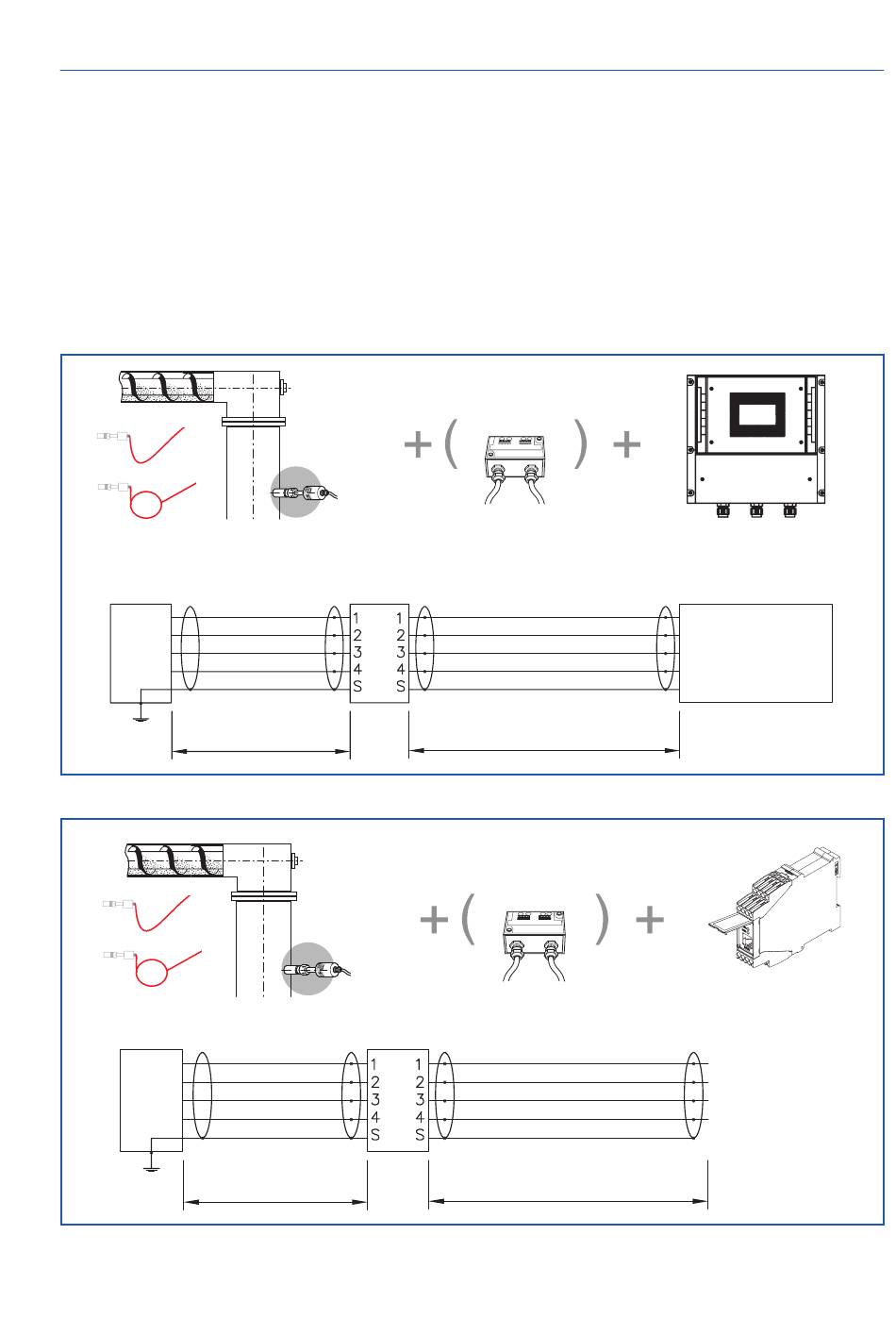

Fig. 1: Overview with C1-box and field housing transmitter
Sensor
Fig. 2: Overview with C1-box and DIN rail transmitter
Sensor
C1-Box
2 m
Sensor
C1-Box
2 m
C1-Box
max. 300 m
C1-Box
max. 300 m
Transmitter
1 (+ 24 V)
2 (GND)
3 (A)
4 (B)
S (Earth)
Transmitter
16 (+ 24 V)
15 (GND)
14 (A)
13 (B)
3
