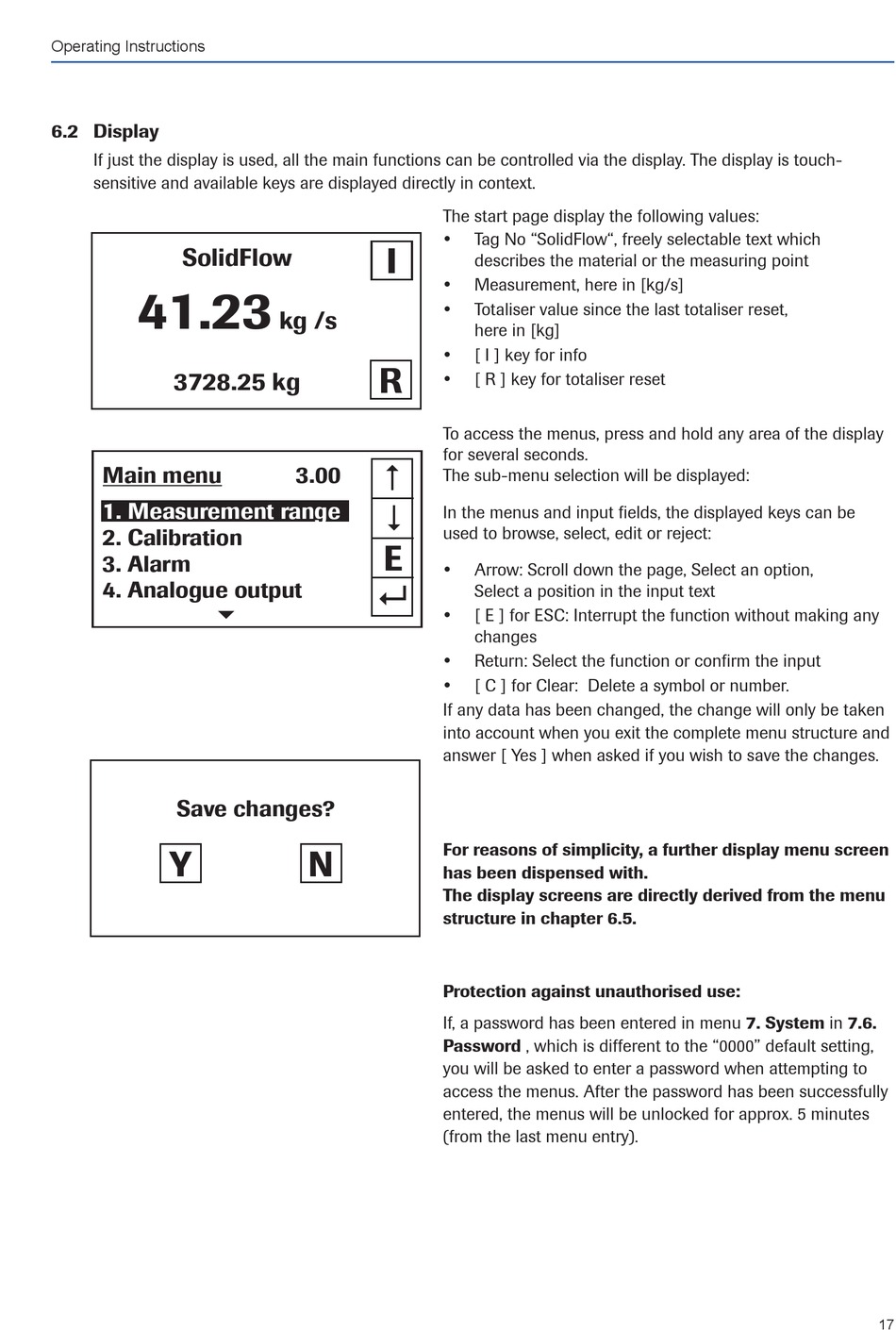

6.2 Display
If just the display is used, all the main functions can be controlled via the display. The display is touch-
sensitive and available keys are displayed directly in context.
SolidFlow
41.23
3728.25 kg
Main menu
1. Measurement range
2. Calibration
3. Alarm
4. Analogue output
€
Save changes?
Y
The start page display the following values:
•
I
•
•
kg /s
•
R
•
To access the menus, press and hold any area of the display
for several seconds.
#
3.00
The sub-menu selection will be displayed:
$
In the menus and input fields, the displayed keys can be
used to browse, select, edit or reject:
E
•
8
•
•
•
If any data has been changed, the change will only be taken
into account when you exit the complete menu structure and
answer [ Yes ] when asked if you wish to save the changes.
For reasons of simplicity, a further display menu screen
N
has been dispensed with.
The display screens are directly derived from the menu
structure in chapter 6.5.
Protection against unauthorised use:
If, a password has been entered in menu 7. System in 7.6.
Password , which is different to the "0000" default setting,
you will be asked to enter a password when attempting to
access the menus. After the password has been successfully
entered, the menus will be unlocked for approx. 5 minutes
(from the last menu entry).
Tag No "SolidFlow", freely selectable text which
describes the material or the measuring point
Measurement, here in [kg/s]
Totaliser value since the last totaliser reset,
here in [kg]
[ I ] key for info
[ R ] key for totaliser reset
Arrow: Scroll down the page, Select an option,
Select a position in the input text
[ E ] for ESC: Interrupt the function without making any
changes
Return: Select the function or confirm the input
[ C ] for Clear: Delete a symbol or number.
