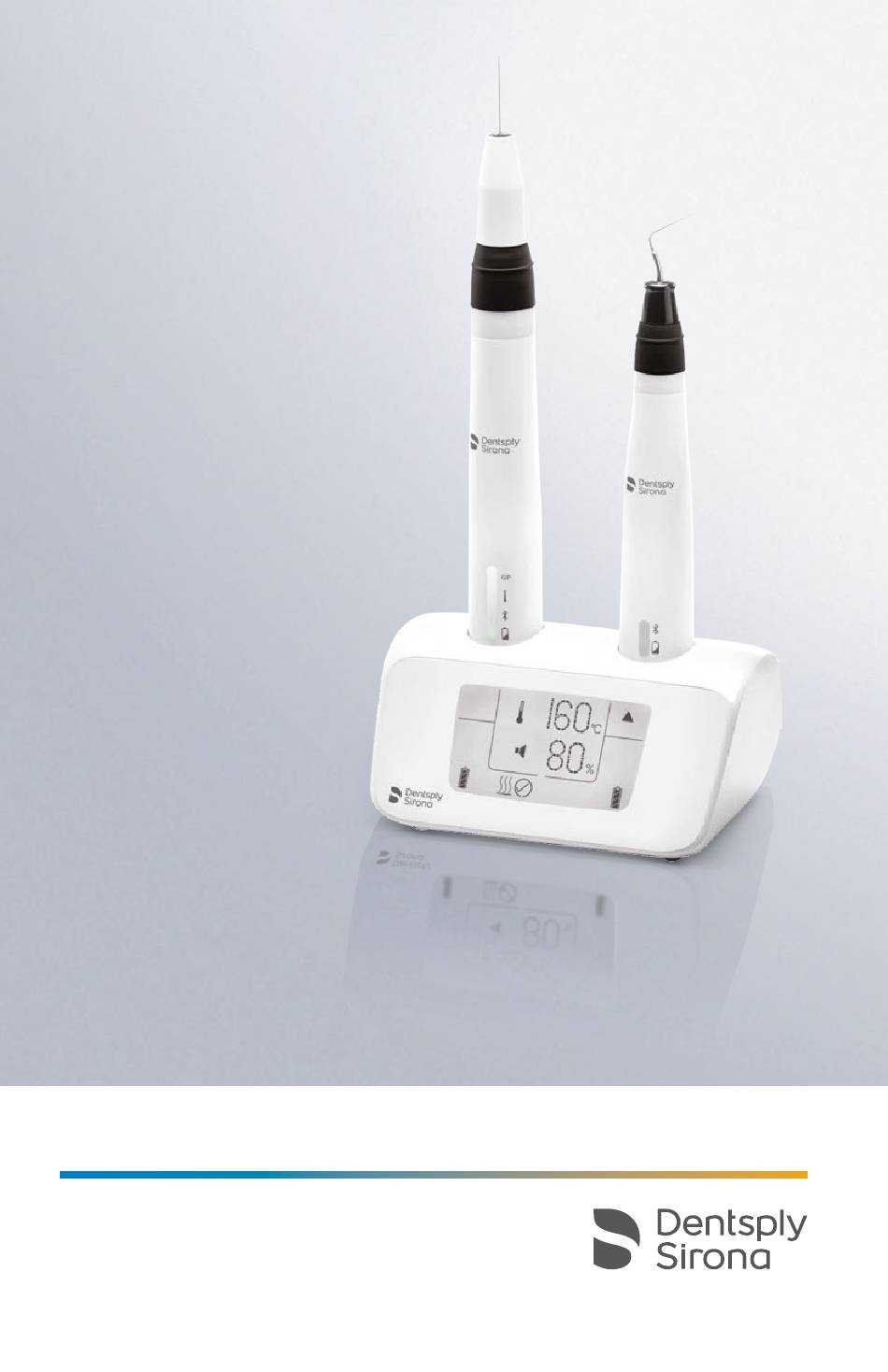

- Page 1 Gutta-Smart™ Getting Started Guide...
-
Page 2: Package Contents
Package contents COLOR AN JULY 24, 2 Flow Handpiece Thermal Response Tip* (TRT) Pack Handpiece *(purchased separately) COLOR AND MATERIALS JULY 24, 2017 REF AEU-65 SN EN19000719-001 Electric Heat Pluggers (EHP) Small Medium Large 40/.025 50/.05 60/.06 Base Station REF AEU-65 SN EN19000719-001 Flow Handpiece Front-end Sealing Cap... - Page 3 Disinfection & cleaning The electric heat pluggers, flow heaters and thermal response tips must be cleaned, disinfected and sterilized before each usage to prevent any contamination. This concerns the first use, as well as all subsequent uses. Refer to the Directions For Use for required sterilization instructions.
-
Page 4: Handpiece Set-Up
Handpiece set-up Before Use – System Setup Plug the cord from the power adapter into the socket on the back of the base station. Place both handpieces into the base station Allow to charge until the green LEDs on the handpieces stop flashing, indicating a full charge. - Page 5 After use, remove the TRT To remove the TRT, wait for it to cool down, then pull straight out from handpiece. Attaching Heater (and GP cartridge) to Flow Handpiece Select a gutta-percha (GP) cartridge 20, 23, or 25 gauge Insert the GP cartridge through the heater Thread the heater with the GP cartridge onto the flow handpiece Bend the cannula...
- Page 6 Features Pack Handpiece Features Electric Heat Plugger (EHP) Thermal Response Tip (TRT) Cuff switch EHP mode Temperature setting 100°-400°C. Press and hold the raised ridge on the cuff switch to heat the EHP. The heater will automatically turn off after 10 seconds of continuous heating.
-
Page 7: Bluetooth Indicator
Flow Handpiece Features Heater (HTR) Removing the HTR initiates GP push-rod retraction. Cuff Switch Press the raised ridge on the cuff switch to initiate heating, if not already at set temperature. Heating takes approximately 90 seconds. The heater will turn off after 10 minutes of inactivity to conserve battery power. - Page 8 Programming Programming the Pack Handpiece Press the screen directly below the pack handpiece to access the pack settings. Electric Heat Plugger Press the temperature segment mode on the touch-screen to adjust the pack temperature (100°–400°C) using the Setting the pack buttons that appear.
- Page 9 Programming the Flow Handpiece Press the screen directly below the flow handpiece to access the flow settings. Press the temperature segment on the touch-screen to adjust the flow temperature (130°–160°C) using the buttons that appear. Press the temperature segment again to exit the adjustment screen.
-
Page 10: Operation
Operation Operating the Pack Handpiece Press the power button to turn on the handpiece. Disinfect the handpiece and sterilize electric heat pluggers and thermal response tip before starting a procedure. Electric heat plugger Press and hold the raised ridge on mode the cuff switch on the pack handpiece to heat the electric heat plugger. - Page 11 Operating the Flow Handpiece Press the power button to turn on the handpiece. Disinfect the handpiece and sterilize the flow heater and thermal response tip before starting a procedure. Wipe the cannula with Press and release the raised ridge on alcohol.
- Page 12 Address: 608 Rolling Hills Drive Johnson City, TN 37604 Phone: 1.800.662.1202 Email: contact@dentsplysirona.com Fax: 1.800.597.2778 Web: dentsplysirona.com Outside U.S.A. and Canada: Dentsply Sirona Address: Maillefer Instruments Holding Sàrl Chemin du Verger 3 CH-1338 Ballaigues, Switzerland Web: dentsplysirona.com For Dental Use Only.
