Table of Contents

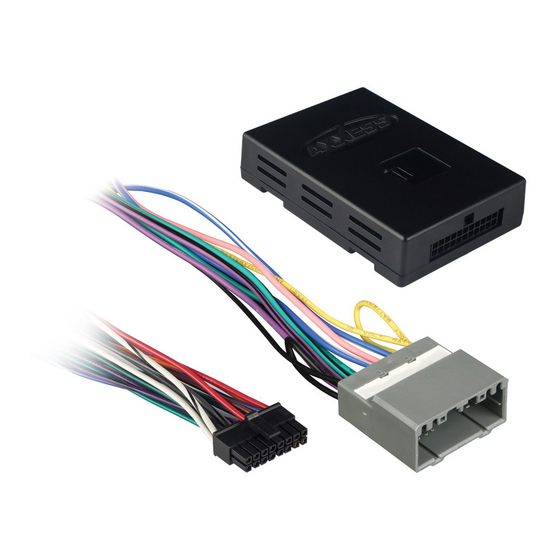

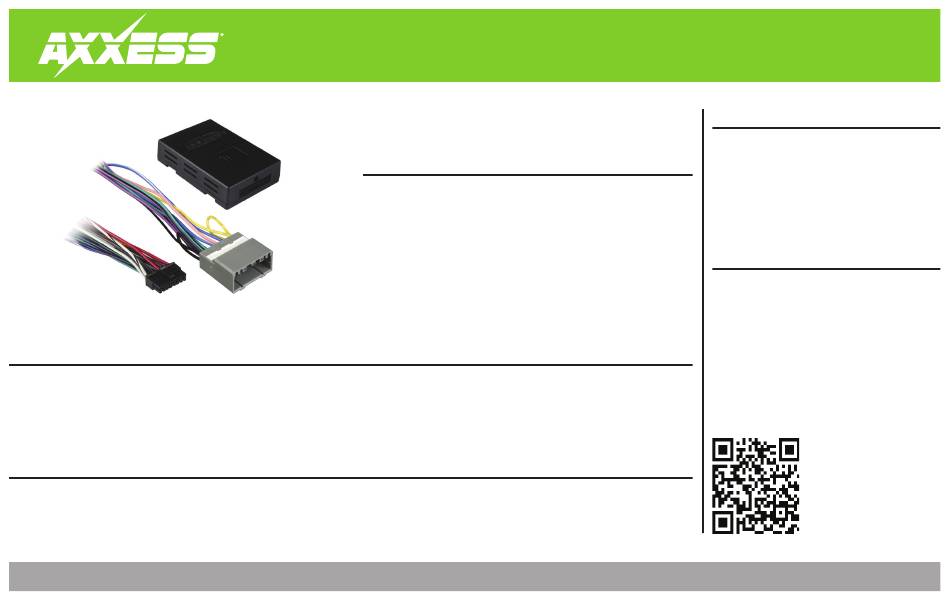

INTERFACE COMPONENTS
• CHTO-02 interface
• CHTO-02 harness
• 16-pin harness
APPLICATIONS
CHRYSLER
DODGE
Pacifica
2004-2008
Ram 1500
Ram 2500/3500 2003-2004
AxxessInterfaces.com
Chrysler/Dodge Data Interface
INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Designed for amplified systems
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired ASWC-1 harness (ASWC-1 sold separately)
• Adjustable gain control for overall volume
• High level speaker input
• Retains balance and fade
• Micro-B USB updatable
2002-2004
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
I N S TA L L AT I O N I N S T R U C T I O N S
2002-2008
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
Audio level adjustment .........................................3
TOOLS REQUIRED
• Cutting tool • Crimping tool • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Small flat-blade screwdriver
Product Info
CHTO-02
REV. 10/9/19 INSTCHTO-02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axxess CHTO-02
Summary of Contents for Axxess CHTO-02
- Page 1 • Cutting tool • Crimping tool • Tape • High level speaker input • Connectors (example: butt-connectors, bell • Retains balance and fade caps, etc.) • Small flat-blade screwdriver • Micro-B USB updatable INTERFACE COMPONENTS • CHTO-02 interface • CHTO-02 harness • 16-pin harness Product Info APPLICATIONS CHRYSLER DODGE...
-
Page 2: Connections
CONNECTIONS From the 16-pin harness to the aftermarket radio, connect the: From the CHTO-02 harness to the aftermarket radio, connect the: • Red wire to the accessory wire. • Black wire to the ground wire. • Blue/White wire to the amp turn on wire. • Yellow wire to the battery wire. • Gray wire to the front right positive speaker output. -
Page 3: Installation
1. With the vehicle and radio turned on, turn the volume up 3/4 of the way. 2. Connect the CHTO-02 harness to the wiring harness in the vehicle. 2. With a small flat-blade screwdriver, adjust the potentiometer clockwise to raise the audio level;... - Page 4 CHTO-02 I N S TA L L AT I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1187 Or via email at: techsupport@metra-autosound.com...
- Page 5 • Alto nivel de entrada del altavoz • Conectores (ejemplo: conectores de extremo, • Adaptable a USB de campana, etc.) • Pequeño destornillador • Retiene el balance y la intensidad COMPONENTES DE LA INTERFASE • Interfaz CHTO-02 • Arnés CHTO-02 • Arnés de 16-pins Información del producto APLICACIONES CHRYSLER...
- Page 6 CONEXIONES Del arnés de 16 pins al radio de mercado secundario, conecte el: Desde el arnés Chrysler de 22-pin al radio de mercado secundario, conecte el: • Cable rojo al cable de accesorios. • Cable negro al cable de tierra. • Cable azul/blanco con el encendido del amplificador. • Cable amarillo al cable de la batería. • Cable gris con la salida positiva de la bocina derecha del frente. •...
- Page 7 INSTALACIÓN AJUSTE DEL NIVEL DE AUDIO 1. Conecte el arnés de 16 pins y el arnés CHTO-02 a la interfaz CHTO-02. 1. Con el vehículo y la radio encendidos, suba el volumen 3/4 del camino. 2. Conecte el arnés CHTO-02 al arnés de cableado del vehículo.
- Page 8 CHTO-02 I N S T R U C C I O N E S D E I N S TA L AC I Ó N ¿Tienes dificultades? Estamos aquí para ayudar. Póngase en contacto con nuestra línea de soporte técnico en: 386-257-1187 O por correo electrónico a:...
