Axxess AX-DSPX-HYKIA4 Installation Instructions

Hyundai/kia data interface with amplifier bypass harness & dsp 2017-up

Download this manual

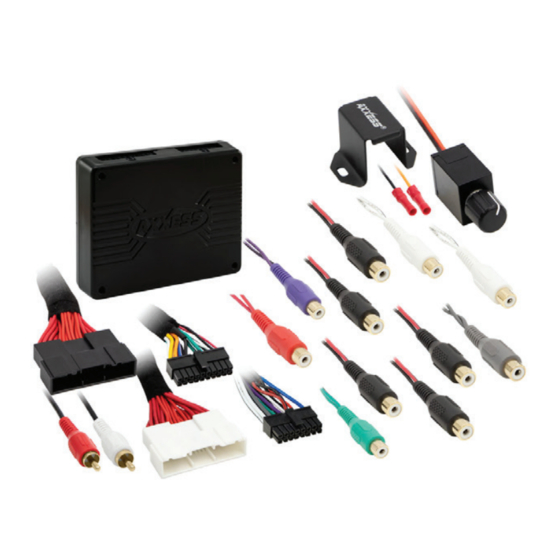

INTERFACE COMPONENTS

• AX-DSP-X

•AX-DSPX-HYKIA4 harness

• AX-BASSKNOB

• AX-DSP-X harness

• Amplifier bypass harness

APPLICATIONS

Hyundai

Santa Fe

AxxessInterfaces.com

Hyundai/Kia Data Interface with Amplifier

Bypass Harness & DSP 2017-up

INTERFACE FEATURES

• Designed for SPDIF amplified sound systems

• Includes an amp bypass harness

• Retains BlueLink/UVO voice prompts

• All chimes/voice prompts go through the aftermarket amp

• Adjustable chime level

• Micro-B USB updatable

2017

AX-DSPX-HYKIA4

I N S T A L L A T I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Connections ............................................................2

Installation ......................................................... 3-4

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Tone generator

Product Info

REV. 8/20/19 INSTAX-DSPX-HYKIA4

Need help?

Do you have a question about the AX-DSPX-HYKIA4 and is the answer not in the manual?

Page 1 • Adjustable chime level solder, and heat shrink • Tape • Wire cutter • Micro-B USB updatable • Zip ties • Tone generator INTERFACE COMPONENTS • AX-DSP-X •AX-DSPX-HYKIA4 harness • AX-BASSKNOB • AX-DSP-X harness Product Info • Amplifier bypass harness APPLICATIONS Hyundai...
Page 2 CONNECTIONS RCA Jacks (sold separately) White / Front Left + Green / Rear Left + Factory Amp Harness White/Black / Front Left - Green/Black / Rear Left - Factory Amp Gray / Front Right + Purple / Rear Right + (must be removed) Gray/Black Front Right - Purple/Black / Rear Right -...
Page 3 7. Connect the amp turn-on wire from the AX-DSPX-HYKIA4 harness. Click the Identify button to confirm that the AX-DSPX-HYKIA4 is connected properly. If so, a chime will be heard from the front left speaker. Test all functions of the installation for proper operation.
Page 4 AX-DSPX-HYKIA4 I N S T A L L A T I O N I N S T R U C T I O N S Having difficulties? We’re here to help. INSTALLATION (CONT’D) Contact our Tech Support line at: 386-257-1187...
