System Architecture

2.1.1

System Environment

No Device1
1 ARK 2250L/ePaper manager
2 WISE Gateway: 3610Z
4 WISE Router: WISE3240
6 EPD Device CC2650
2.2

System Specification

1. One Single network can be built by WISE-3610Z or WISE-3240.
2. One WISE-3610Z can support up to 400 EPD devices in one channel.
3. One WISE-3240 can support up to 400 EPD devices in one channel.
4. Support 11 channels in this system.
5. Support up to 10000 EPD devices in one system by 25 pcs routers.
6. System support white list to join the system from ePaper manager.
7. Support changeable encrypted key
EPD-023 User Manual

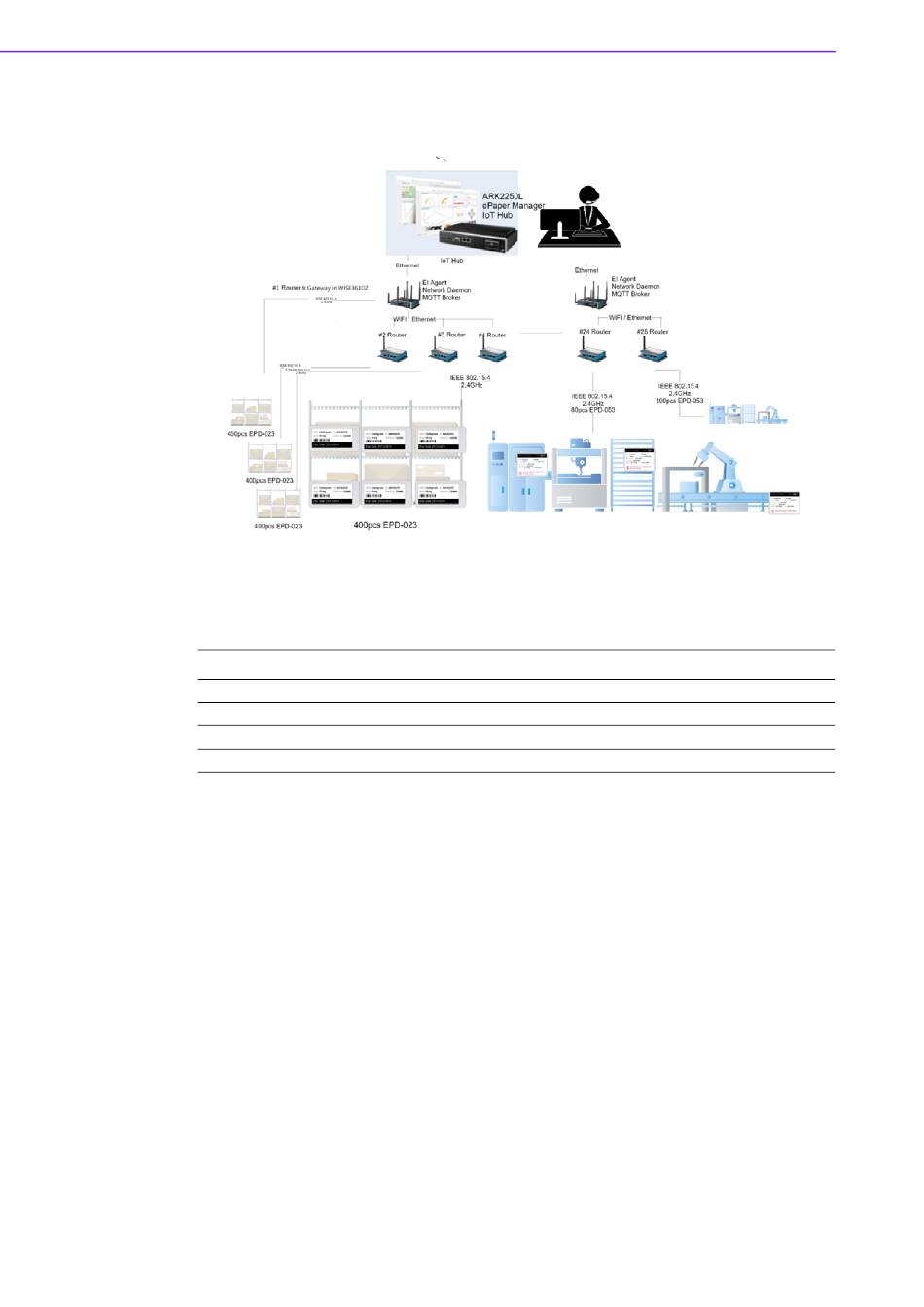

Figure 2.1 EPD-023 Network Topology
OS
WIN7, WIN10 (2019,Q3) 64 bit,
OpenWRT
OpenWRT
TI RTOS
6
Version
V1.0.0
V1.0.0
V1.0.0
V1.0.0
