TITLE
MODEL NAME
SERIAL NAME
Signature
Please return 1 copy for our
confirmation with your signature
and comments
Model :IDS31-320WC35DVA1E
USER MANUAL

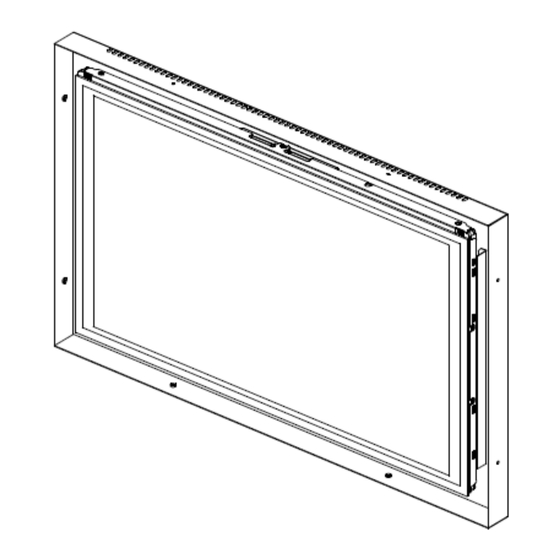

Industrial Monitor / Monitor
IDS31-320W
IDS31-320WC35DVA1E
Date
Prepared by
Rev. No : Ver. 0.90
Preliminary
Date :15/APR/2015
Date
Page
of 20
1
Advertisement
Related Manuals for Advantech IDS31-320W
Summary of Contents for Advantech IDS31-320W
- Page 1 Preliminary USER MANUAL Industrial Monitor / Monitor TITLE MODEL NAME IDS31-320W SERIAL NAME IDS31-320WC35DVA1E Signature Date Prepared by Date Please return 1 copy for our confirmation with your signature and comments Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20...
- Page 2 Preliminary TABLE OF CONTENTS ITEM PAGE Ⅰ Overview General Description Ⅱ Ⅲ Electrical Specifications Electrical Characteristics Interface Connections OSD Function Ⅳ Environment Specifications Ⅴ Reliability Ⅵ Ⅶ Visual Inspection Standard 11-13 Ⅷ Accessory 12~18 Mechanical Characteristics Ⅸ Packing Ⅹ BSMI 甲類 警告使用者這是甲類資訊產品, 在居住的環境中使用時, 可能會造成射頻干擾, 在這種情況下, 使用者會被要求採取某些適當的對策.
- Page 3 Preliminary Ⅰ. OVERVIEW The IDS31-320WC35DVA1E is designed 32.0 inch monitor Support the monitor with 1920 × 1080 resolution. Brightness - 350 cd/㎡ (without Touch) Contrast Ratio : 3000:1 Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20 Model :IDS31-320WC35DVA1E...
- Page 4 Preliminary Ⅱ. General Description Display Type TFT LCD Panel (32.0 inch) - P320HVN01.0_AUO Pixel Pitch 0.3637(H)mm X 0.3637(V)mm Pixel Format 1920 Hor. By 1080 Ver. Pixels RGB vertical stripe Display Colors 16.7M colors 350 cd/㎡ (Typical) Brightness Contrast Ratio 3000 : 1 (Typical) Response Time 8 ms ( G to G ) Horizontal...
- Page 5 Preliminary Ⅲ. Electrical Specifications 1-1. Electrical Characteristics DC Input Voltage / 5.0A ±10% Power Standby power 2.0 W Power consumption 48 W Type Analog RGB 0.714 ± 5% Gain Level Video Input impedance 75ohm ± 5%(terminated) Signal Pixel frequency Max. 165MHz Resolution Max.
- Page 6 Preliminary 2. I/O Port (Interface Connections) 2-1. Analog RGB Pin Assignment Connector P/No. Symbol Description VGA Input Red, analog input connector For 15P D-sub Green Green, analog input Blue Blue, analog input Not connected DGND Digital ground Red GND Ground for Red return Green GND Ground for Green return Blue GND...
- Page 7 Preliminary TMDS Data 0/5 Shield TMDS Data 5- TMDS Data 5+ TMDS Clock Shield RXCP TMDS Clock + RXCN TMDS Clock - Analog Red Analog Green Analog Blue HSYNC Analog Horizontal Sync 2-3. Input Signal format Horizontal Timing Vertical Timing Character Pixel Sync...
- Page 8 Preliminary Controller Board (ESCAP7000) Circuit Board Dimension 62 mm x 33 mm D.C. +5V External power Power Requirements 5~12VDC unRegulated Power (max. 65mA, typical 55mA, 50mV peak to peak Max ripple) -40 to 80 ℃ Operating Temperature ℃ Storage Temperature -40 to 90 Interface USB: 2.0 compliant, Full Speed...
- Page 9 Preliminary Ⅳ. OSD Function 1) Button Button Function Notes Power on/off button POWER - Turn power on or off Main menu on/off MENU - Show OSD menu on the screen - Exit the main menu or sub menu Adjust button RIGHT - Moves the bar right to increase the adjustment - Moves the main menu or sub menu...
- Page 10 Preliminary Ⅴ. Environment Specifications Values Parameter Units Notes Min. Max. Operating Temperature ℃ Storage Temperature ℃ Operating Humidity Storage Humidity Ⅵ. Reliability Test Item Conditions Ta : 50℃, 120Hr High temperature operating test Low temperature operating test Ta : 0℃, 120Hr High temperature storage test Ta : 60℃, 120Hr Ta : -20℃, 120Hr...
- Page 11 Preliminary Ⅶ. Inspection standard 1. Description These inspection standards shall be applied to LCD monitor supplied by GTT. 2. The condition of inspection 2.1 Inspection Environment 1) Ambient temperature : 15~25℃ 2) Humidity : 25~75%RH 3) Ambient Illumination : 400~600Lux for external appearance inspection 100~200Lux for light on inspection 2.2 Inspection condition - Viewing Distance : 30~50㎝...
- Page 12 Preliminary 3.3 LCD visual inspection [unit : mm] Item Standard Inspection equipment Random N≤ 10 2 adjacent N≤ 5 (Note 1) * PC for inspection * Pattern generator (Bright & Dark) 3 adjacent or more N≤ 2 * Lupe : ×10 Total N≤...
- Page 13 Preliminary 4. Function inspection (Resolution 1920*1080 at 60Hz) 4.1 OSD key function inspection Item Standard Inspection equipment Key function Function normally each key button on * PC the PC mode. 4.2 Display inspection Inspection equipment Item Standard Color No strange color displaying Flicker No flicker * PC...
- Page 14 Preliminary Accessory Ⅷ 1) VGA Cable Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20 Model :IDS31-320WC35DVA1E...
- Page 15 Preliminary 2) DVI Cable Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20 Model :IDS31-320WC35DVA1E...
- Page 16 Preliminary 3) AC Cord Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20 Model :IDS31-320WC35DVA1E...
- Page 17 Preliminary 4) USB Cable Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20 Model :IDS31-320WC35DVA1E...
- Page 18 Preliminary 5) Adaptor Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20 Model :IDS31-320WC35DVA1E...
- Page 19 Preliminary Ⅸ. Mechanical Characteristics Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20 Model :IDS31-320WC35DVA1E...
- Page 20 Preliminary Ⅹ. Packing 1) Packing Method Gift Box ( 1 monitor ) Standard packing - 1 pallet : 12 Gift boxes (or 13~14 Gift boxes) Pallet (Gift box X 12 or ~14) Rev. No : Ver. 0.90 Date :15/APR/2015 Page of 20 Model :IDS31-320WC35DVA1E...
