  • Page 1: User Manual

    FPM-3191G Industrial Flat Panel Monitor with 19” TFT LCD Display User Manual...
  • Page 2 Copyright This document is copyrighted by Advantech Co., Ltd. 2005. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time. Specifications are thus subject to change without notice.
  • Page 3 Product Warranty (1 year) Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for one year from the date of purchase. This warranty does not apply to any products which have been repaired or...
  • Page 4 • Consult the dealer or an experienced radio/TV technician for help Additional Information and Assistance 1. Visit the Advantech web site at www.advantech.com where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.

  • Page 5: Safety Instructions

    Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User's Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equip- ment and must be easily accessible.
  • Page 6 FPM-3191G User Manual...

  • Page 7: Table Of Contents

    Rack Mounting ............. 10 Figure 2.3:Rack Mounting..........10 Desktop, Swing-ARM Mounting ........11 2.2.1 Desktop Stand ............... 11 Figure 2.4:Desktop Stand for the FPM-3191G series... 11 2.2.2 Swing-ARM..............12 Figure 2.5:Swing-ARM for the FPM-3191G series ..12 Appendix A Touchscreen Installation .......14 Introduction ..............
  • Page 8 FPM-3191G Series User Manual viii...
  • Page 9 Introduction This chapter includes: • Introduction • Specifications • LCD Specification • Connectors • Dimensions...

  • Page 10: Chapter 1 Introduction

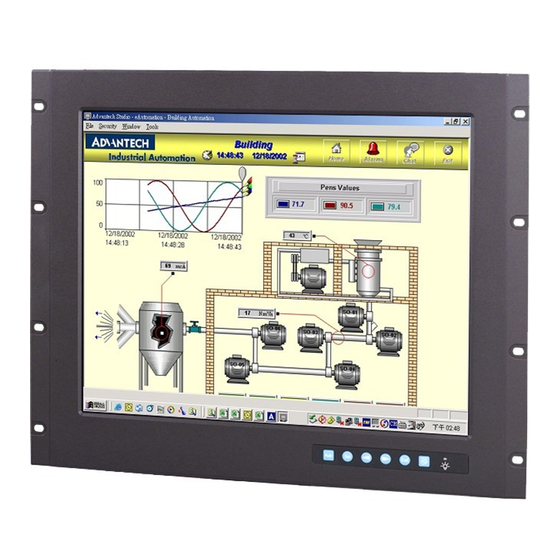

    Chapter 1 Introduction 1.1 Introduction Advantech's FPM-3191G Series is a 19" color TFT LCD flat panel moni- tor built specifically for industrial applications. With the optional touch- screen, the FPM-3191G Series is an excellent and user-friendly system control interface. In addition to its usual application as an LCD panel monitor, the FPM-...

  • Page 11: Specifications

    1.2 Specifications General • Control: OSD (On Screen Display) control pad on front side • Mounting: Rack/panel/wallmount, desktop, and VESA arm • Front Panel: Aluminum, NEMA4/IP65 compliant • I/O Ports: VGA, DC power input and RS-232/USB port (Touchscreen version only) •...

  • Page 12: Lcd Specifications

    USB port of the PC. The touchscreen cable is included with all orders which include the USB touchscreen option. DC 12V Power in This connector will be connected to a DC 12V Switching Power Supply. FPM-3191G User Manual...

  • Page 13: Dimensions

    1.5 Dimensions Figure 1.1: FPM-3191G Cutout Dimensions 444 x 376 mm (17.48" x 14.84") Chapter 1...
  • Page 14 FPM-3191G User Manual...
  • Page 15 System Setup This chapter includes: • Mounting the Monitor - Wall/Panel/Rack Mounting - Desktop Stand/Swing-ARM Mounting...

  • Page 16: Chapter 2 System Setup

    Chapter 2 System Setup 2.1 Mounting the Monitor The FPM-3191G Series can be placed as you require. The versatility of the FPM-3191G mounts enable it to be mounted on your desk or any- where else. 2.1.1 Wall Mounting With wall brackets, the FPM-3191G can be mounted directly to a wall.

  • Page 17: Panel Mounting

    2.1.2 Panel Mounting If you need to install the FPM-3191G series on a panel mount, please release the mounting brackets by detaching four screws on rear side and fix them on up and bottom side by screws. Figure 2.2: Panel Mounting...

  • Page 18: Rack Mounting

    2.1.3 Rack Mounting FPM-3191G series products could be directly mount to the industrial standard 19" rack. There are four screw holes on each side of the panel. Figure 2.3: Rack Mounting FPM-3191G User Manual...

  • Page 19: Desktop, Swing-Arm Mounting

    2.2 Desktop, Swing-ARM Mounting The FPM-3191G Series can be mounted in other ways. You can place the desktop stand for desktop use or attach it on a swing-arm bracket. 2.2.1 Desktop Stand The desktop stand brackets are attached to the rear of FPM-3191G.

  • Page 20: Swing-Arm

    2.2.2 Swing-ARM Detach the mounting brackets on the rear side, then attach the FPM- 3191G series onto the Swing-ARM mount (75mm or 100mm square bracket). Figure 2.5: Swing-ARM for the FPM-3191G series FPM-3191G User Manual...
  • Page 21 Touchscreen Driver Installation...

  • Page 22: A.1 Introduction

    Appendix A Touchscreen Installation A.1 Introduction The FPM-3191G Series’ optional touchscreens uses advanced resistive and capacitive technology. They provide more accurate sensing capacity than other technologies. The touchscreen is specially designed for tough industrial environments, and has been approved to FCC Class B stan- dards.

  • Page 23: Capacitive Type

    Communication Parameters • Baud Rate 9600 (default), and 19200 bps • 8 Data bits, 1 stop bit, no parity only. Interface - USB Conforms to USB Revision 1.1. If the USB is connected to the controller, the controller will communicate over the USB, and will not communicate over the serial port.
  • Page 24 Operating Temperature Range: -15 to 70°C for touch screen. Storage Temperature: Always store the touch screen sensor in its original shipping container between -50 and 85° C (MIL-STD- 810E). Never store touch sensors where condensation may form. FPM-3191G User Manual...

  • Page 25: Resistive Touchscreen Driver Installation

    A.2 Resistive Touchscreen Driver Installation A.2.1 Hardware Touchscreen controllers must be configured for the driver prior to instal- lation. Elo typically ships controllers in a default setup that is compatible with this driver. Controller requirements are: Serial Serial controllers must conform to these minimum requirements: •...

  • Page 26: Software

    CDROM: \\TouchScreen-DRV\ELOTOUCH\Win2K\SetupElo.exe Single monitor, serial controller Run the self-extracting zip file to unzip the files, using the Run EloSetup option EloSetup will launch. Check the "Install Serial Touchscreen Driv- ers" box. Review and accept the License Agreement FPM-3191G User Manual...
  • Page 27 Check "Auto-detect Elo devices" if your touchmonitor serial cable is connected to the computer and the serial cable supports hardware handshaking. If you connect the serial cable later, do not check the "auto-detect" box. Go to the next screen. A list of all the serial ports that the system detected is shown. If you checked the auto-detect box in the previous screen, and your touch- monitor serial cable is attached to the computer, the COM port that you selected should be checked in the list.
  • Page 28 (the Elo Video Align- ment program, EloVA) immediately or wait until later. If you choose not to run this program now, you can run it from the Elo Control Panel application. FPM-3191G User Manual...
  • Page 29 Multiple monitors, serial controllers Follow the general procedure for Single monitor, serial controller installation above, auto detecting or selecting all the serial ports that you will use. The driver files will install. When the "Setup Complete" screen appears, you may choose to run calibration (the Elo Video Align- ment program, EloVA) immediately or wait until later.
  • Page 30 To Silent install for USB controllers use EloSetup /iu /s To Silent install for a Serial controller on COM1 use EloSetup /is /P:1 /s To view all the options available for this installation method, run EloSetup as EloSetup /h. FPM-3191G User Manual...
  • Page 31 • Adding Additional Serial Controllers Click on the Change option from the Add/Remove programs in the Con- trol Panel, Elo entry. Appendix A...
  • Page 32 • Change Serial Port To change Serial port click on the Change option from the Add/Remove programs in the Control Panel, Elo entry. FPM-3191G User Manual...
  • Page 33 • Adding Additional USB Controllers If there are Elo USB devices already installed, plug the USB cable from the touchmonitor into the computer and run EloVA to calibrate the touch- monitors. If there are no Elo USB devices attached to the system, click on the Change option from the Add/Remove programs in the Control Panel, Elo entry.
  • Page 34 FPM-3191G User Manual...
  • Page 35 Supported Input Timing Modes...

  • Page 36: Appendix B Supported Input Timing Modes

    Note 3: Because adjustments may not fit, such as differing magnifying ratios or, in the case that you use it except for the display timing that was preset. FPM-3191G User Manual...
  • Page 37 OSD Operation Keypad...

  • Page 38: Appendix Cosd Operation Keypad

    Note 3: If auto setup would like to be selected, please follow the proce- dures below: 1. Press the auto button 2. Press the sel button, then select the save icon to save the current status. 3. The auto setup procedure finishes. FPM-3191G User Manual...

  • Page 39: Osd Function

    C.2 OSD Function Each selected value is stored into LCD memory after SEL signal input or time out. The stored values are not affected if the power is turned off. But the selected value is not available in case a selected mode is changed before time out or power is turned off before time out.
  • Page 40 FPM-3191G User Manual...
