- Page 1 Conexis ® Manual The Secure, Keyless Smart Door Lock The smarter way to protect your home •...
- Page 2 Secure, monitor and control your home with a range of smart Our Range security devices from Yale. Whether it’s a Smart Door Lock, an Alarm or CCTV system, Yale Smart Living products put you in of Products control of your home security. ALARMS...
-
Page 3: Table Of Contents
Introduction Thank you for choosing the Yale Conexis L1 Smart Door Lock. ® This simple to install product has been designed with the user in mind. Please read this manual completely before using the Yale Conexis L1 Smart Door Lock. -
Page 4: L1 Smart Door Lock

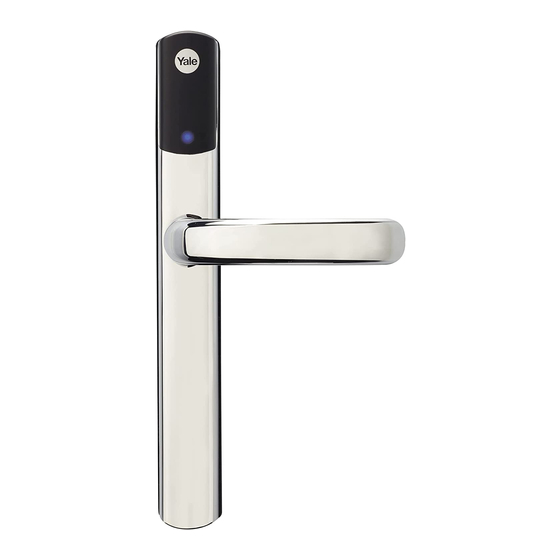

Conexis L1 Smart Door Lock INSIDE OUTSIDE Radio Cover Key Card/Tag Reader Bluetooth Wakeup Inside LED Button and LED Lever Handle Lever Handle Thumbturn Backup 9V contacts Battery Cover Tools Required... - Page 5 Inside The Box 4x AA Alkaline Fixing Pack A The smart way to protect your home. Fixing Pack B Fixing Pack C Fixing Pack D 70mm 80mm 55mm 145mm 160mm 170mm...
- Page 6 Remove the Current Handle • Do not close door until installation is complete. Please make a note of your current fixing screws. You should have 2 or 3 as below. Remove the cylinder...
- Page 7 Measuring Your Door Please measure the thickness of the door and the distance between the centre of the lock and the inside of the door to select the correct xing pack and tailbar. Fixing Pack B Fixing Pack C Fixing Pack D INSIDE 70mm 80mm...
- Page 8 Install lock Actuator • Tip: After installing actuator make sure it is not tilted in the door. Please screw lug into position to line up with previous handle xing screws (see page 6).
- Page 9 Fit External Handle • Lugs can be slid up and down to t current xing holes. Slide the lug up or down to align with the holes in the door.
- Page 10 Fit Internal Fixing Plate • No longer required Tip: Note Slightly removing the external handle from outside the door can help line up the xing screws. Insert xing screws to line up with previous handle Do not fully screws. tighten.
- Page 11 Unit Alignment • Make sure handle is parallel to door on both sides. INSIDE OUTSIDE Please ensure that alignment tool is at against the door as screws are tightened.
- Page 12 Fitting Internal Handle • o longer required Make sure arrows are facing up Do not turn thumbturn until installation is complete (page 16) Please make sure cable is tucked into allocated slot when fitting handle.
- Page 13 Installation Guide Loosely tighten Make sure handle operates freely once screws are tightened. Check seal! Then tighten screws Do not turn thumbturn until installation is complete (page 16)
- Page 14 Handing Procedure • Alkaline Batteries Only Hold R Button for 15 sec. “Beep Beep” Push Down & Release “Beep Beep” Push Up & Release “Beep Beep Beep ” Motor should lock & unlock...
- Page 15 Mode Learn PURPLE Success GREEN Timeout Place card/ tag just below Yale badge INSIDE The smart way to protect your home. “Beep” Press “R” Button to Finish “Beep Beep Beep” Please keep this card/tag on you as your backup OUTSIDE...
- Page 16 Lift the lever handle to lock again. Tap one of the paired Cards/Tags on the outside handle under the Yale logo. Make sure it unlocks and the lever handle can be pushed down. Your installation is now complete.
-
Page 17: Unlock With Cards/Tags
Unlock With Cards/Tags The smart way to protect your home. OUTSIDE Green Green Place card/tag just below Yale badge smart protect your home. Green Green... -
Page 18: Yale Lock App
Yale Lock App 1. Search on app store Conexis YALE LOCK ® . Download App YALE LOCK LOCK LOCK . Create Account LOCK Login User Registration E-mail First name E-mail First name Password Last name Password Last name Login E-mail... -
Page 19: Create Mobile Key Account
A lock would typically be named by its location or purpose. E.g. Front Door Or press ‘Add New Key’ and configure your own Yale lock. Cancel Q W E R T Y U I A S D F G H J... -
Page 20: Adding Cards/Tags Via App
Adding Additional Cards/ Tags Via App • Lock ‘name’ Lock ‘name’ Add New Lock Add New Lock Cards/Tags Lock Menu Details Cards/Tags Audit Lock Name Settings Date & Time New Card/Tag Press the Bluetooth Cards/Tags wakeup button Cards/Tags Name Cancel Q W E R T Y U Blue A S D F G H J K L... -
Page 21: Unlock With Yale App
Unlock With Yale App Your Smartphone must already have a mobile key for the lock to use this feature. If you’re setting up the lock for the first time please follow instructions on page 19, or the lock owner can send you a key. -
Page 22: Locking The Conexis
Locking The Conexis L1 Smart Door Lock ® “Beep beep beep” Checking... -
Page 23: Battery Indicator
Battery Indicator Low Battery “Beep beep beep Beep beep beep be be be be be” OUTSIDE voc ati on com pl ete Green No Battery Alkaline Batteries r evoca ti on com pl ete Green Backup 9V contacts... -
Page 24: Pairing With A Third Party Gateway
Pairing With A Third Party Gateway Connecting to a home automation system is a two-way process and may require the compatible home automation system to be configured to look for a new device. Please consult the manual that came with the system for more information. Insert Connection Module... -
Page 25: Factory Reset
Factory Reset Disconnect inside handle completely. Remove batteries. Press and hold “R” Insert batteries while pressing button R Hold until “beep” Remove batteries and install following installation instructions. - Page 26 Notes...
- Page 27 Notes...
- Page 28 THE YALE BRAND with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution. THE ASSA ABLOY GROUP is the world’s leading manufacturer and supplier of locking solutions, dedicated to satisfying end-user needs for security, safety and convenience.
