Table of Contents

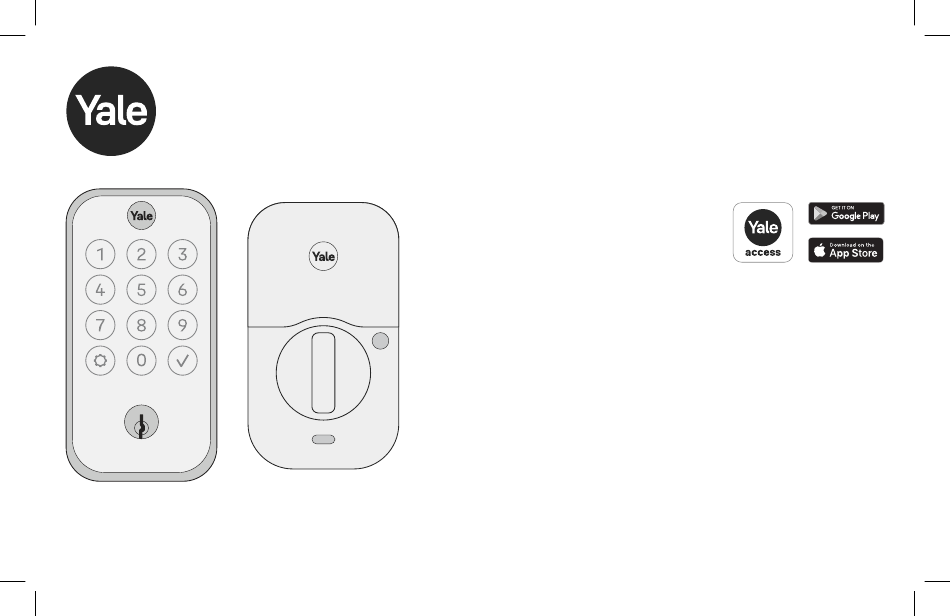

Assure Lock 2 Touch
Keyed YRD420 F
Trusted Every Day
P
Download Yale Access App
Create an account if you don't already have
one, and tap "Set Up a Device".
Note: If you have an account with the August App, use the same username and
password for the Yale Access App.
Install Your Lock
Follow the step-by-step Installation Guide in this manual (pages 8-22),
or refer to the app for installation instructions with helpful videos.
Note: If you use the app, please tear off the Door Checker and the Marking
Template (pages 3-6) to use when prompted.
Set Up and Use Your Lock
Create permanent entry codes, issue temporary entry codes for guests,
operate your lock with your phone and more (pages 23-31).
P/N YRD420-KD-F Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Keyed YRD420 FP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yale Keyed YRD420 FP

Summary of Contents for Yale Keyed YRD420 FP

  • Page 1 “Set Up a Device”. Note: If you have an account with the August App, use the same username and password for the Yale Access App. Install Your Lock Follow the step-by-step Installation Guide in this manual (pages 8-22), or refer to the app for installation instructions with helpful videos.
  • Page 2 P/N YRD420-KD-F Rev A...
  • Page 3 Door Checker Part 1 See Reverse for Part 2 Measure Clearance Measure Door Thickness Measure Backset Greater than A B, C or D Equals E or F Less than B or Less than A Doesn’t equal E nor F (Your door is not a match) (Your door is not a match) greater than D (Your door is not a match)
  • Page 4 Door Checker Part 2 See Reverse for Part 1 Measure Face Bore Measure Edge Bore and Strike Pocket Equals G or H Equals I Door (Edge Bore) Frame (Strike Pocket) Less than G Less than I (Adjust diameter to G or H) (Adjust diameter to I) Greater than H Greater than I...
  • Page 5 Marking Template for 2-1/8” (54mm) Face Bore 1-3/4” (44.5mm) 2-3/4” (70mm) Center of Door Thickness Backset 2-1/8” (54mm) Face Bore Center of 1” (25mm) Edge Bore Centerline Center of 1” (25mm) Edge Bore Center of 2-1/8” (54mm) 1-3/8” (35mm) 2-3/8” (60mm) Face Bore Door Thickness Backset...
  • Page 6 Marking Template for 1-1/2” (38mm) Face Bore 1-3/4” (44.5mm) 2-3/4” (70mm) Door Thickness Backset Center of 1-1/2” (38mm) Center of Face Bore 1” (25mm) Edge Bore Centerline Center of 1” (25mm) Center of Edge Bore 1-1/2” (38mm) Face Bore 1-3/8” (35mm) 2-3/8”...
  • Page 7 In the Box 1. Exterior Keypad Lock Hardware 2. Interior Lock 3. Strike Plate 4. Adjustable Deadbolt & Key 5. Manual 6. Reset Pin 7. Mounting Plate 8. AA Batteries 9. Screws a. Strike Plate and Deadbolt Screws b. Teal Screw Set B c.
  • Page 8 Installation Guide Required Tools You Might Also Need 1. Phillips Head Screwdriver 2. Door Checker (tear off pages 3-4 of this manual) 3. Tape Measure 4. Drill 5. Marking Template (tear off pages 5-6 of this manual) 6. Pencil Door Checker Part 1 7.

  • Page 9: Remove Existing Deadbolt

    Remove Existing Deadbolt If you have a new door, please proceed to step 1b. If you have a deadbolt on your door, use the diagram to help you remove it. Frame Door Keep your old deadbolt until your new lock has been successfully installed. P/N YRD420-KD-F Rev A...
  • Page 10 Check Door Measurements If your door doesn’t have holes, please proceed to step 1c. Tear off the Door Checker (pages 3-4) of this manual and follow the guidelines on If you need to make adjustments, go to both sides to measure each aspect of your door and frame. There are some cases step 1c and find the closest match to each when existing holes cannot be adjusted to be compatible.
  • Page 11 Make or Adjust Holes Skip this step if you have confirmed that the existing holes are compatible (step 1b). 1. Tear off the Marking Template (pages 5-6 of this manual), and choose the preferred face bore diameter (2- 1/8” or 1-1/2”) on either side of the template. 2.
  • Page 12 Install Deadbolt Latch 1. Correct deadbolt length is based on the backset. Refer to measurements E and F on the Door Checker (page 3) to verify backset. 2-3/8” Backset 2-3/4” Backset x 2 for Deadbolt Latch x 2 for Strike Plate (Out of box) (To adjust, twist neck by holding the body stable) (Actual size)
  • Page 13 Install Exterior Keypad 1. Refer to measurements G and H on the Door Checker (page 4) to measure face bore hole. If the hole is less than 2-1/8” (H), remove adapter by twisting it off the body of the lock. Install your lock with the door open.

  • Page 14: Install Mounting Plate

    Install Mounting Plate 1. Refer to measurements B, C, and D on the Door Checker (page 4) to select screws. x 2 Teal Screws (1-3/8” door thickness) x 2 Black Screws (1-3/8” - 1-3/4” door thickness) x 2 Silver Screws (1-3/4” - 2-1/4” door thickness) 2.
  • Page 15 Attach Wire Cable to Interior Lock 1. Remove battery cover by pulling it upwards off the body of the interior lock. 2. Make sure the side of the cable end with the ridges and the marked line faces outward. 3. Push cable into the designated slot until you hear a click. P/N YRD420-KD-F Rev A...
  • Page 16 Install Interior Lock 1. Make sure the tailpiece slot is in horizontal position. Use the thumbturn to adjust if needed. 2. Slide the tailpiece through the designated slot on the back of the thumbturn. 3. Press the lock against the mounting plate, adjusting its position until it clicks into place and the bottom of the lock is held in place.
  • Page 17 Test Thumbturn & Key If deadbolt latch does not lock or unlock with the key (from the outside) or the thumbturn (from the inside): • Ensure that the deadbolt latch is centered in the face bore hole; • Ensure that the tailpiece is positioned horizontally and inserted through deadbolt latch slot (step 3, point 3) into the thumbturn slot (step 6, point 2).
  • Page 18 Install Yale Smart Module (Optional) If your lock model does not include a Smart Module, please proceed to step 9a. Insert Yale Smart Module into the designated slot at the top of the Note: If you purchased your module separately, check compatibility with your Assure 2 Touch.
  • Page 19 Install DoorSense (Optional) If you do not wish to install DoorSense, please proceed to step 10. DoorSense is a magnet sensor installed on your door frame that can keep track of when the door is opened and closed. For surface mount instructions, please proceed to step 9b. For flush mount instructions, please proceed to step 9c.
  • Page 20 1-1/2” from the edge of your door frame. 5. Ensure DoorSense is in proper position by center aligning it with the Yale logo, and adhere it to the door frame. 6. Tighten pre-installed screws and attach cover.
  • Page 21 DoorSense Flush Mount 1. Take off DoorSense cover. 2. Push the magnet out of the housing. 3. Expose the adhesive on the magnet cap by removing the blue backing. 4. Press the magnet onto the cap so that the notches interlock. 5/8”...
  • Page 22 Install Batteries and Replace Cover Make sure you have Yale Access App downloaded and an account created. Once batteries are inserted, lock is ready to be set up with the app. 1. Before installing batteries, make sure the deadbolt latch is unlocked.
  • Page 23 Using Your Lock Exterior Keypad Interior Lock 1. Exterior LED indicator To lock your door 2. Wake / One-Touch Locking / Press Fingerprint Scanner 3. Warnings / Menu 4. Lock or Submit Entry Code To unlock your door 5. Thumbturn 6.

  • Page 24: Led Alerts

    LED Alerts Exterior Keypad Alerts Interior Lock Alerts Gear flashes amber Low battery level 1 LED indicator flashes blue Low battery levels 1, 2 and 3 Gear flashes red Low battery level 2 LED indicator flashes pink Passage mode enabled Gear flashes red, then stays red Low battery level 3 LED indicator flashes red...
  • Page 25 Resetting Your Lock to Factory Defaults If you have set up your lock with Yale Access App, you should reset it using the app. Go to your lock’s settings and choose “Factory Reset”. 1. Remove one battery. 2. Insert reset pin into the designated reset hole.
  • Page 26 · To turn passage mode off, lock your door or press and hold the Passage button until you hear a chime. · Yale Access products work in harmony with some of your favorite smart home brands. Integrations · Integrations can be set up in the Yale Access App from the “Works With” menu option. P/N YRD420-KD-F Rev A...

  • Page 27: App Settings

    This code is automatically created by the Yale Access App and used to access programming features: handing, Smart Module Programming Code integration, and diagnostics. This code cannot be used to unlock the door. Find your programming code in the Yale Access App, enter this code on the keypad and press the gear symbol.
  • Page 28 App Settings You can find these and other settings in the Yale Access App. Advanced Device Settings Volume You can turn the lock volume on or off, and set it to high or low. When turned on, it will show the active status (e.g. locked) of the lock. This light will also inform you...
  • Page 29 Lock Operations Troubleshooting · Press the Yale logo to activate the keypad. · Verify contact with the logo. Lock does not respond. · If keypad numbers are visible, check if they respond when pressed. · Check batteries are installed and oriented correctly in battery case. Replace batteries* if needed.
  • Page 30 · Make sure you are using different entry codes for different users. · Entry code must be entered while the keypad is active (tap on the Yale logo to wake it up and enter the entry code within 5 seconds).

  • Page 31: Hardware Troubleshooting

    Hardware Troubleshooting Deadbolt grinds and will not extend to lock when using an entry code but thumbturn · Lock was not handed properly. Find the setting called “Lock Handing” to fix this issue. locks and unlocks smoothly. Deadbolt is hitting the strike plate. ·...
  • Page 32 Yale® and Assure Lock® 2 are registered trademarks of Yale Home. Other products’ brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. ©Copyright 2023. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Home is prohibited. P/N YRD420-KD-F Rev A...
