How To Mount Edynamo - Magtek eDynamo Installation And Operation Manual

3 - Installation
3.4

How to Mount eDynamo

eDynamo is designed and tested to operate as a handheld device or surface-mounted device. For
solutions that require mounting, eDynamo can be installed in the optional docking station (shown in
Figure 3-3), which incorporates micro-suction mounting feet with considerable holding power.
The docking station is mostly suitable for solutions where eDynamo can operate permanently on USB
power, because the USB cable can not be disconnected for handheld use when the device is docked.
To install the device in the optional docking station, follow these steps (see Figure 3-4):
1) Remove the protective tape from the micro-suction pads on the docking station base, and stick it to a
clean, smooth surface.
2) Connect the USB cable to the device.
3) Place the device in the docking station base, with the USB cable facing the docking station's USB
cable clamp.
4) Snap the cover onto the docking station base, capturing the USB cable.
5) Press the device onto a clean, smooth surface to stick it in place.
6) Twist the device's base to unstick it from the surface.
eDynamo| Secure Card Reader Authenticator | Installation and Operation Manual

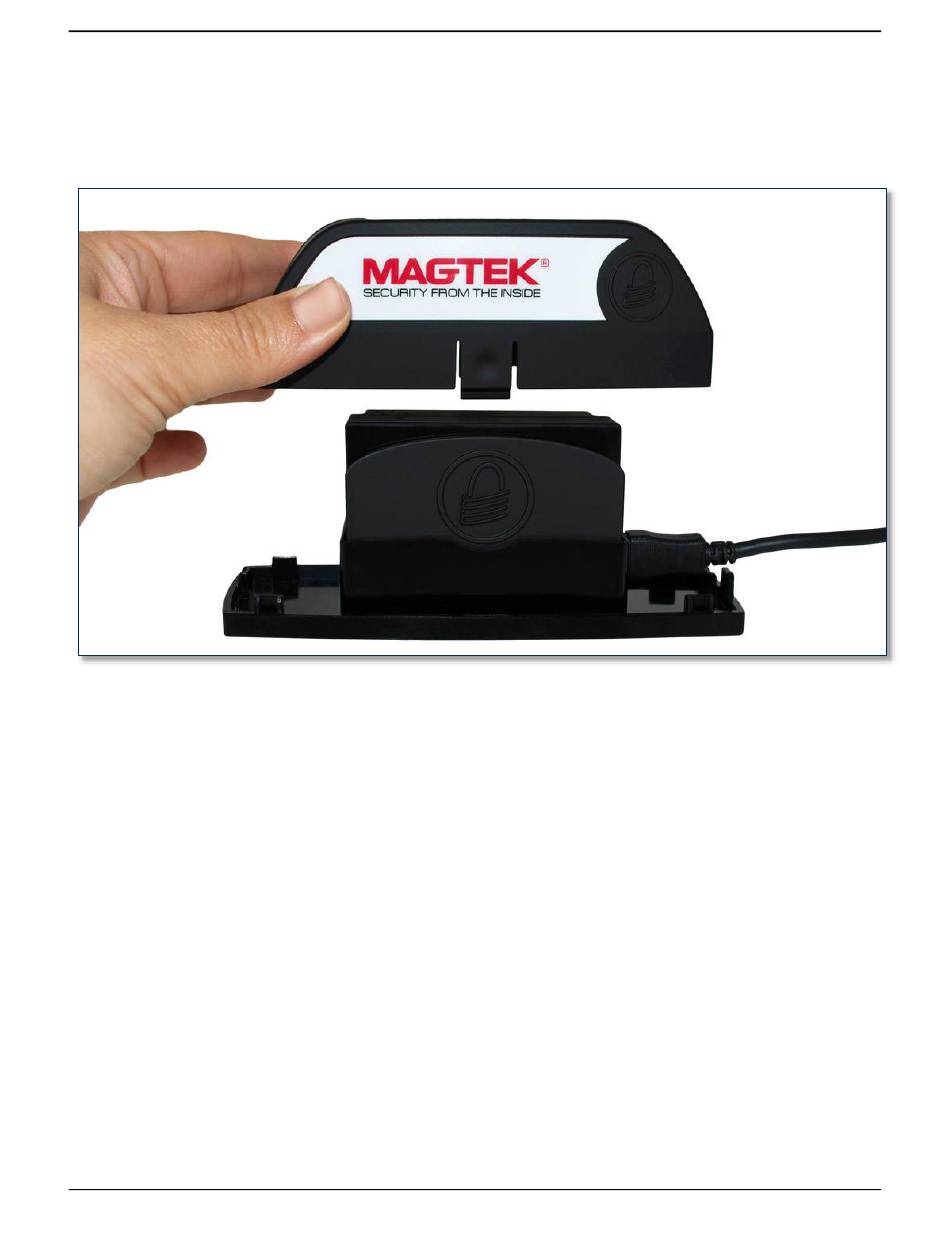

Figure 3-3 - eDynamo Installed In Optional Docking Station
