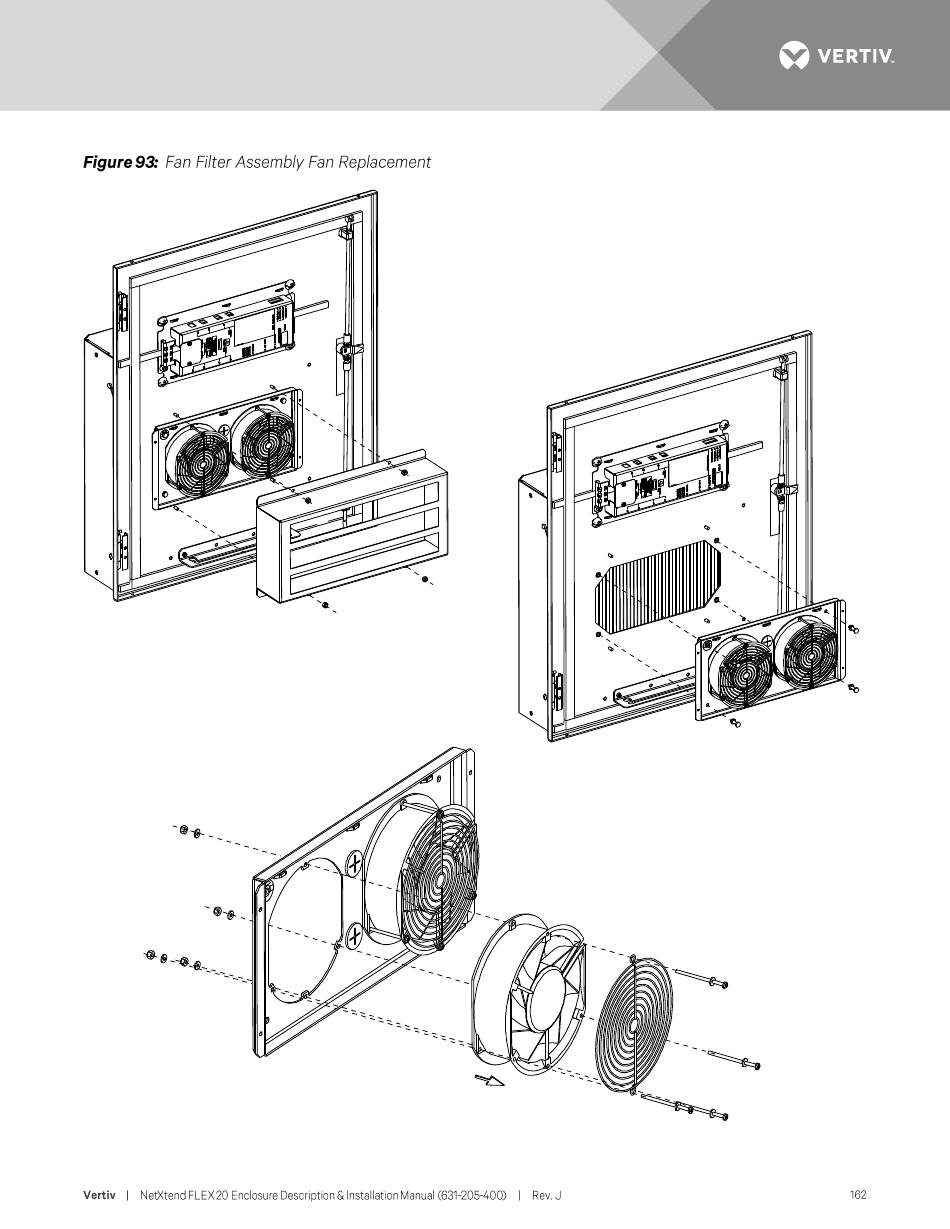

Typical Door with
Fan Filter Assembly
(Inside View)
FAN BAFFLE
Remove by removing
(4) 6-32 lock nuts.
Air Flow
Arrow
Remove by removing
(4) 1/4-20 x 1" bolts
and (4) 1/4" lock washers.
Remove by removing
FAN
(4) 6-32 lock nuts,
(8) #6 flat washers, and
(4) 6-32 x 2.5" screws.
FAN ASSEMBLY
