4. Product Description

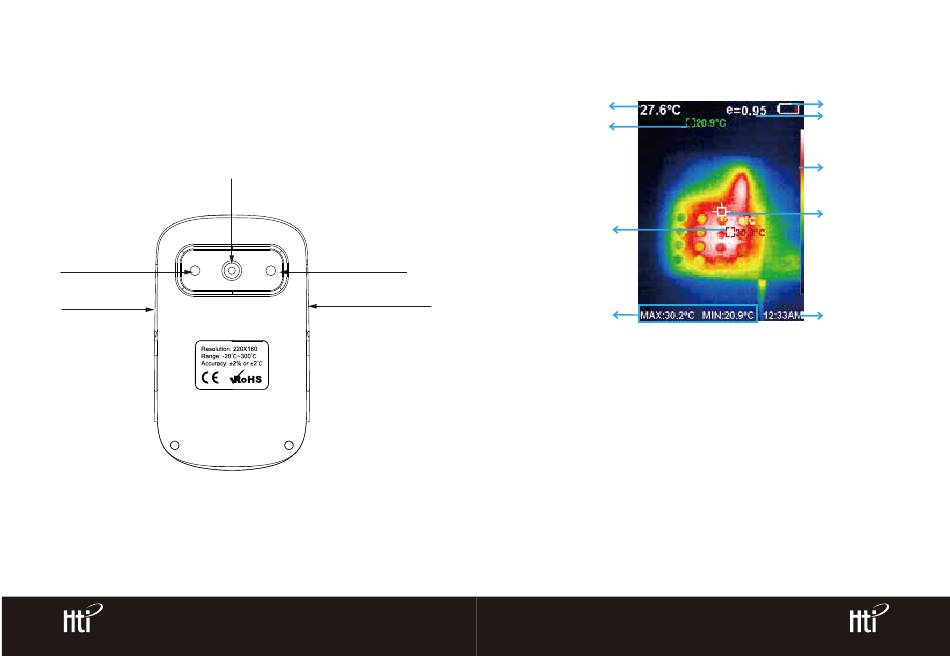

4.1. Instruction to structure

Infrared imaging sensor
Visible light camera
Micro USB
Back
www.xintest.com.cn
LED lighting lamp
Image capture key
4

4.2. Key Description

Central point
temperature
The lowest
temperature cursor
The highest
temperature cursor
Maximum value/
minimum value of
field temperature
1. Color code: used to mark the color corresponding to the relative tempera-
ture from low to high in the field of version.
2. The central point temperature cursor: used to indicate the central position
in the screen area. The cursor color displays white. The temperature value is
displayed top left corner of the screen.
3. The highest temperature cursor: used to indicate the highest tempera-
ture position in the screen area. It will move with the movement of the
highest temperature. The cursor displays red. The temperature value is
displayed at bottom left corner of the screen.
5
www.xintest.com.cn
Battery power
Current emissivity
Color code
Temperature
cursor at
central point
Time
