UAC-CB-01RS2, UAC-CB-01RS4, UAC-CB-01CAN Installation Guide

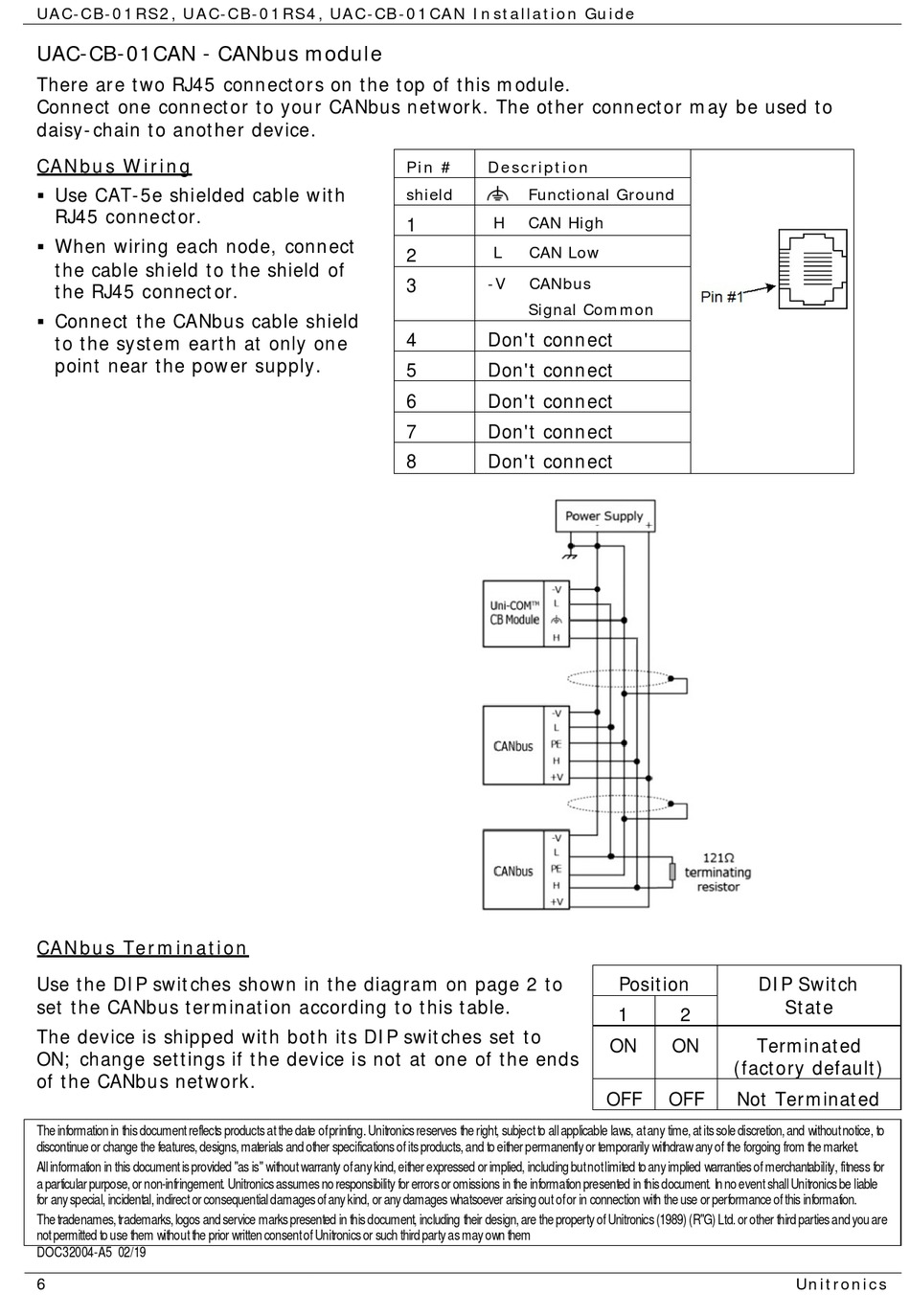

UAC-CB-01CAN - CANbus module
There are two RJ45 connectors on the top of this module.
Connect one connector to your CANbus network. The other connector may be used to
daisy-chain to another device.

CANbus Wiring

 Use CAT-5e shielded cable with
RJ45 connector.
 When wiring each node, connect
the cable shield to the shield of
the RJ45 connector.
 Connect the CANbus cable shield
to the system earth at only one
point near the power supply.

CANbus Termination

Use the DIP switches shown in the diagram on page 2 to
set the CANbus termination according to this table.
The device is shipped with both its DIP switches set to
ON; change settings if the device is not at one of the ends
of the CANbus network.
The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to
discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market.
All information in this document is provided "as is" without warranty of any kind, either expressed or implied, including but not limited to any implied warranties of merchantability, fitness for
a particular purpose, or non-infringement. Unitronics assumes no responsibility for errors or omissions in the information presented in this document. In no event shall Unitronics be liable
for any special, incidental, indirect or consequential damages of any kind, or any damages whatsoever arising out of or in connection with the use or performance of this information.
The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other third parties and you are
not permitted to use them without the prior written consent of Unitronics or such third party as may own them
DOC32004-A5 02/19
6
Pin # Description
shield Functional Ground
1 H CAN High
L CAN Low
2
-V CANbus
3
Signal Common
4 Don't connect
5 Don't connect
6 Don't connect
7 Don't connect
8 Don't connect
Position DIP Switch
1 2
ON ON Terminated
(factory default)
OFF OFF Not Terminated
State
