Operating and Installation
Instructions Display units
KERN VHP-T
Version 1.1
05/2016
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Importør:
Impex Produkter AS
Gamle Drammensvei 107
1363 Høvik
www.impex.no
info@impex.no
Tel.: 22 32 77 20
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
VHP-T-BA_IA-e-1611
Advertisement
Table of Contents
Related Manuals for KERN VHP-T
Summary of Contents for KERN VHP-T
- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating and Installation Instructions Display units KERN VHP-T Version 1.1 05/2016 Importør: Impex Produkter AS Gamle Drammensvei 107 1363 Høvik www.impex.no info@impex.no Tel.: 22 32 77 20...
-
Page 2: Table Of Contents
Version 1.1 05/2016 Operating and installation instructions Display units Contents Technical data ....................4 Device overview VHP-T ................. 5 Keyboard overview ..................6 Overview of display ........................7 Basic Information (General) ................7 Proper use ..........................7 Improper Use ..........................7 Warranty ............................. - Page 3 Menu ......................19 Servicing, maintenance, disposal .............. 20 10.1 Cleaning ........................... 20 10.2 Servicing, maintenance ......................20 10.3 Disposal ............................ 20 10.4 Error messages ........................20 Instant help ....................21 Configure display unit ................. 22 Declaration of Conformity ................23 VHP-T-BA_IA-e-1611...
-
Page 4: Technical Data
1 Technical data KERN VHP-T Display 5-digit Resolution 3000 Divisions 1,2,5,10,20,50 Weighing Units Functions Totalization Display LCD 10 mm digits with back lighting Max. 6 items 700 Ω; DMS weighing cells sensibility: 1±0.2mv/V. We recommend ≥ 50 % max. Range calibration... -
Page 5: Device Overview Vhp-T

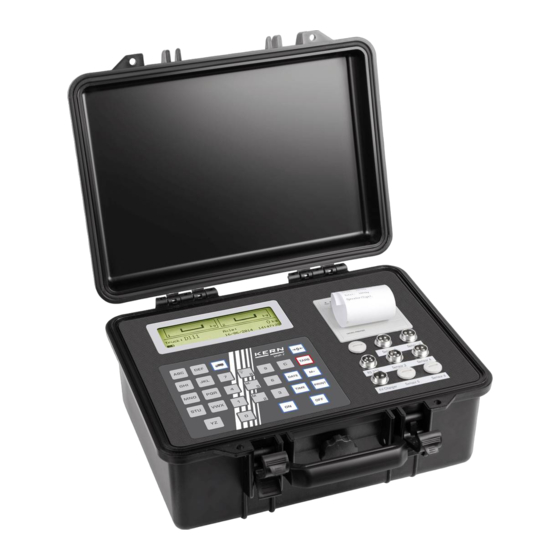

2 Device overview VHP-T 1. Printer 2. Display 3. Keyboard 4. Connections (platforms, load connection of battery) 5. Case VHP-T-BA_IA-e-1611... -
Page 6: Keyboard Overview
• Delete weighing values • Printing • Return key • Setting the date • Setting the time • Entry of license plate • Switch on and off background illumination • Input of letters • Input of numbers • Zero setting key VHP-T-BA_IA-e-1611... -
Page 7: Overview Of Display
Changes to the display unit's design are not permitted. This may lead to incorrect weighing results, safety-related faults and destruction of the display unit. The display unit may only be operated in accordance with the described default settings. Other areas of use must be released by KERN in writing. VHP-T-BA_IA-e-1611... -
Page 8: Warranty
In KERN’s accredited DKD calibration laboratory test weights and display units may be calibrated (return to the national standard) fast and at moderate cost. -
Page 9: Transport And Storage
Only use original packaging for returning. Prior to dispatch disconnect all cables and remove loose/mobile parts. Reattach possibly supplied transport securing devices. Secure all parts such as the glass wind screen, the weighing platform, power unit etc. against shifting and damage. VHP-T-BA_IA-e-1611... -
Page 10: Unpacking And Placing
• Avoid static charge of goods to be weighed or weighing container. Major display deviations (incorrect weighing results) may be experienced should electromagnetic fields (e.g. due to mobile phones or radio equipment), static electricity accumulations or instable power supply occur. Change location or remove source of interference. VHP-T-BA_IA-e-1611... -
Page 11: Unpacking
The LED display at the mains adapter informs you during loading about the loading status of the rechargeable battery. red: Voltage has dropped below prescribed minimum. green: Rechargeable battery completely reloaded To conserve energy, enable the automatic switch-off function „AUTO OFF“, see chap. 8.8. VHP-T-BA_IA-e-1611... -
Page 12: Selection Of Platform Quantity
Prepare the required adjustment weight. The weight to be used depends on the capacity of the scale. Carry out adjustment as near as possible to the scale’s maximum weight. Info about test weights can be found on the Internet at: http://www.kern-sohn.com. • Observe stable environmental conditions. Stabilisation requires a certain warm-up time. - Page 13 Now enter the following password: 878586 (the last two ciphers can be ignored) Use the C button to change between the individual parameters. Select the parameter (5): Select Calibration Confirm by pressing the button VHP-T-BA_IA-e-1611...
-
Page 14: How To Carry Out Adjustments
Always place the adjustment weight evenly on both platforms. Carry out adjustment at platform 1 (SP1) and platform 2 (SP2). (please note the example above: 50% of the total load per platform must be defined.) VHP-T-BA_IA-e-1611... -
Page 15: Operation
Overloading exceeding the stated maximum load (max) of the device, minus a possibly existing tare load, must be strictly avoided. This could damage the instrument. Exceeding the maximum load is indicated by the display „----“. Unload weighing system or reduce preload. VHP-T-BA_IA-e-1611... -
Page 16: Weighing With Tare
The tare procedure can be repeated as many times as necessary, for example with initial weighing of several components for a mix (add-on weighing). The limit is reached when the taring range reaches its capacity limit. To delete the tare value, remove load from weighing plate and press VHP-T-BA_IA-e-1611... -
Page 17: Manual Totalizing
-------------------------- Wheel 1: 70 kg Wheel 2: 40 kg -------------------------- Axle 1: 110 kg -------------------------- 110 kg 0 kg 110 kg User: 8.7 Display background illumination The background illumination can be turned on and off by using button. VHP-T-BA_IA-e-1611... -
Page 18: Automatic Switch-Off Function „Auto Off
Use the C button to change between the individual parameters. Select the parameter (9): Select “Auto-Off time“. Confirm by pressing the button Now a time of 1-99 minutes can be defined. Confirm by pressing the button VHP-T-BA_IA-e-1611... -
Page 19: Menu
• (please do not modify standard setting on „5“) • Adjustment of balance. (5) Calibration • Not documented • Selection of language German and English (7) Language • Selection of quantity of platforms (up to 6 platforms (8) Mode possible) VHP-T-BA_IA-e-1611... -
Page 20: Servicing, Maintenance, Disposal
• Do not use aggressive detergents (solvents or similar). 10.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 10.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 21: Instant Help
• Warm-up time was ignored. • Electromagnetic fields / static charging (choose different location/switch off interfering device if possible) Should other error messages occur, switch display unit off and then on again. If the error message remains inform manufacturer. VHP-T-BA_IA-e-1611... -
Page 22: Configure Display Unit
Select the parameter (2) readability. Confirm by pressing the button Enter readability via the numeric keypad and subsequently confirm with button. (Possible values: 1,2,5,10,20,50) Use the button to return to the parameter list VHP-T-BA_IA-e-1611... -
Page 23: Declaration Of Conformity
(up to 6 platforms available) 14. Use the button to return to the parameter list 15. Select the parameter (5) Calibration. 16. Adjusting the balance (see item 6.8) 13 Declaration of Conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce VHP-T-BA_IA-e-1611...
