Satel VD-1 Manual

VD-1
VIBRATION DETECTOR AND MAGNETIC CONTACT

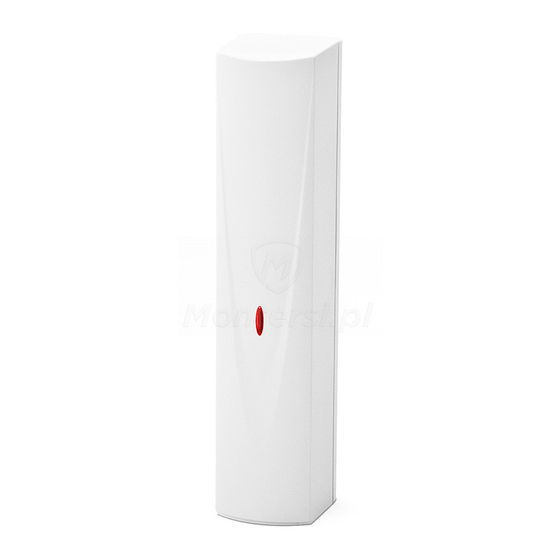

The VD-1 detector senses vibrations associated with attempts to force a door or window
(vibration detector), as well as detects opening of a door or window (magnetic contact).

1. Features

 Piezoelectric sensor.
 Advanced processing of signal from piezoelectric sensor.
 Two reed switches allowing to select the magnet installation manner.
 LED indicator.
 Tamper protection against cover removal and tearing enclosure from the wall.

2. Specifications

Supply voltage ................................................................................................... 12 V DC ±15%
Standby current consumption .........................................................................................3.5 mA
Maximum current consumption.......................................................................................5.4 mA
Relay contacts rating (resistive load) .............................................................. 40 mA / 16 V DC
Typical detection range of vibration detector, depending on mounting surface:
concrete ........................................................................................................... 1.5 m
brick ................................................................................................................. 2.5 m
wood ................................................................................................................ 3.5 m
steel .................................................................................................................... 3 m
PVC ............................................................................................................... 2.25 m
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range.............................................................................-10 °C...+55 °C
Detector enclosure dimensions......................................................................26 x 112 x 29 mm
Surface mounted magnet enclosure dimensions .............................................26 x 13 x 19 mm
Surface mounted magnet spacer dimensions.................................................26 x 13 x 3,5 mm
Flush mounted magnet enclosure dimensions.................................................28 x 10 x 10 mm
Weight................................................................................................................................. 64 g
The declaration of conformity may be consulted at www.satel.eu/ce

3. Description

Alarms
The detector reports alarm in the following cases:
 registering of strong vibrations,
 registering of a predefined number of weak vibrations,
 opening reed switch contacts after removal of magnet,
 opening the tamper contact (tamper alarm).
