User Mounting and Assembly Instructions
HM501225U001 Issue 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC890PX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Parker AC890PX

Summary of Contents for Parker AC890PX

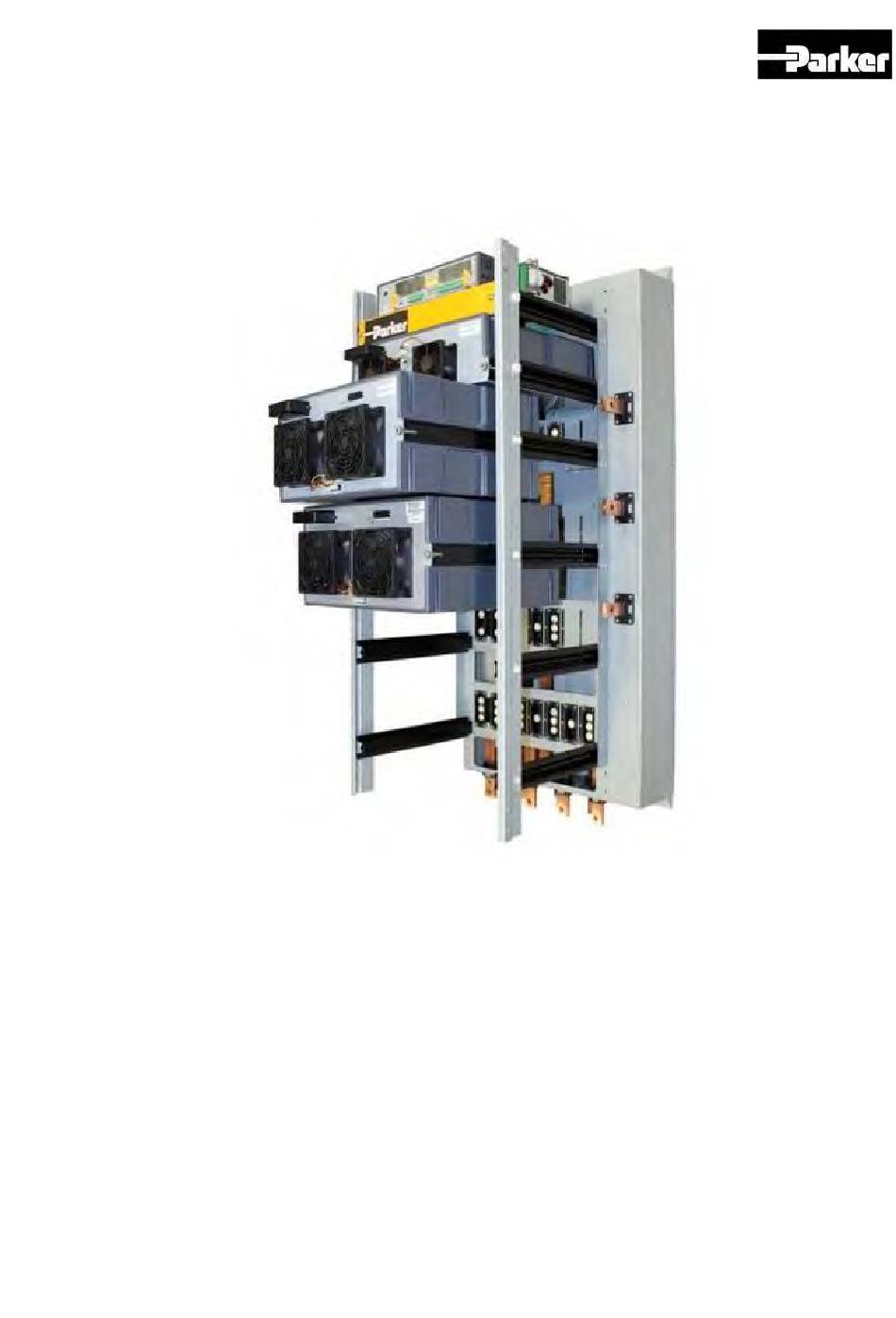

  • Page 1 User Mounting and Assembly Instructions HM501225U001 Issue 3...

  • Page 2: Parts List

    Parts List: Chassis Assembly CS Module Control Cable LA501088UXXX CM471462U002 STO PCB CP to CS Control Cable AH471776U001 CM471686U003 AC890PX Control Module Blanking plates 890CM LA501357U001 BA501301U002 BA501301U003 AC890 CS Module Bracket x 2 LA471171UXXX BA501090 (optional) AC890 CD Module...
  • Page 3 Before starting assembly you must read the Safety Instructions at the beginning of Product Manual HA501299U001 available from www.parker.com/ssd. Assemble cubicle ready for mounting AC890PX Frame M. Notes: The minimum required backpanel width is 600mm. This product is intended to be mounted in an appropriate electrical enclosure in a vertical position where it is not subject to excessive heat or vibration.
  • Page 4 Fit STO PCB Assembly AH471776U001 to retaining posts on the chassis. This equipment contains electrostatic discharge (ESD) sensitive parts. Observe static control precautions when handling, installing and servicing this product. Mount the chassis into the cubicle. Partially insert a M8 bolt (no washer) in the centre top mounting hole.
  • Page 5 Install the module mounting rails. Use the top dowels to align and fit left (LA501220U001) and right (LA501220U002) rail assembles, fix using M5 SEMs FY047651 (item 642), quantity 8 (torque setting 2.7Nm). Fit lower left mounting bracket BA501092 (item 252) with M6 SEMs FY385692 (item 643), quantity 4 (torque setting 4.5Nm).
  • Page 6 Loosely fit TS8 adaptor bracket BA501090 (item 250) to lower left mounting bracket BA501092 (item 252) with M6 SEMs FY385692 (item 643), quantity 2. Loosely fit to cubicle frame using TORX self tap screws (item 645), quantity 2 (use upper hole positions) FY501218 (torque setting 4.5Nm).
  • Page 7 Loosely fit TS8 adaptor bracket BA501091 (item 251) to lower right mounting bracket BA501093 (item 253) with M6 SEMs FY385692 (torque setting 4.5Nm) (item 643), quantity 3. Loosely fit to cubicle frame using TORX self tap screws FY501218 (torque setting 2.7Nm) (item 645), quantity 2 (use upper hole positions).
  • Page 8 Fit upper left mounting bracket BA501092 (item 252) with M6 SEMs FY385692 (torque setting 4.5Nm) (item 643), quantity 4. Fix earth wire assembly CM467679U001 (item 285) with front top screw, as shown. Fit control housing bracket BA501111 (item 259) to left mounting bracket BA501092 (item 252) with M4 SEMs FY385968 (item 644), quantity 2.
  • Page 9 Fit upper right mounting bracket BA501093 (item 253) with M6 SEMs FY385692 (item 643), quantity 4. Fit control housing bracket BA501112 (item 260) to upper right mounting bracket BA501093 (item 253) with M4 SEMs FY385968 (torque setting 1.3Nm) (item 643), quantity 2.
  • Page 10 Fit upper setting plate BA501120 (item 258) with self tap screws FY501150 (item 640), quantity 6 (slots to the rear). Tighten screws on TS8 adaptor bracket BA501091 (item 251) and TS8 adaptor bracket BA501090 (item 250), quantity 5. Tighten TORX self tap screws FY501218 (torque setting 2.7Nm) (item 645) on both sides, quantity 4.
  • Page 11 Populate rack with power and control modules. (*** denotes a power variant which must be verified from the ratings table). Modules are pulled into place via the insertion/extraction screws on the side of each module. This is a multi turn screw where both screws should be turned simultaneously or alternatively no more than 2 turns on each side before returned to the opposite screw.
  • Page 12 Add STO cable assembly CM501601U100 (item 291) to the top CP module (if fitted). Add STO cable assembly CM501600U200 (item 293) to the top CD module. Add STO cable assembly CM501600U300 (item 294) to the middle CD module. Add STO cable assembly CM501600U400 (item 295) to the bottom CD module. Add STO cable assembly CM501600U500 (item291) (item to the bottom CS module).
  • Page 13 Add STO power cable assembly CM501215U001 (item 297), STO+ on the lower ring connection, STO- on the upper with M5 x 10 PAN POZ1 FY385690 (torque setting 2.7Nm) quantity 2, STO_AC in the side terminals (tighten terminal screws via access slot shown). Feed cable assembly through grommet and secure in P clips.
  • Page 14 Fit 890CM into position by angling it in from the top and secure via retaining screws, quantity 4. Plug in STO supply cable assembly CM501215U001 (item 297) and STO feedback cable assembly CM472271U002 (item 296). Remove all power module control cable covers. Page 14 - 30...
  • Page 15 Plug in control cables:- a. Plug in CM471686U003 (item 290) into CP module. b. Plug in CM471297U002 (item 286) (670mm long) into top CD module c. Plug in CM471297U003 (item 287) (900mm long) into middle CD module d. Plug in CM471297U004 (item 288) (1200mm long) into bottom CD module e.
  • Page 16 Use P clip to retain cables from the power modules to the control module. Plug in the cable from the CS module into the control module connector marked CS. Plug in the cable from the top CD module into the control module connector marked Plug in the cable from the middle CD module into the control module connector marked V.
  • Page 17 Fit gasket strip to roof vent LA501358, see details below, and to air duct BA501113. PEEL PEEL BACKING STRIP OFF 2 OFF 510mm LONG GASKET (PARKER PART NUMBER BO501494 AND PLACE ON SIDE FLANGES. Fit gasket to underside of air duct BA501113. See drawing on page 23. Making sure to fit closely at the corners.
  • Page 18 Cubicle roof must be cut to the following instructions (these instructions apply to a Rittal TS8 600*600mm enclosure only). See drawing HG501087, page 29. Fit cubicle roof with details as shown. From top of cubicle fit gasket plate BO501494 (item 261) under outlet air duct BA501113 (item 256) with 6 self tap screws FY501150 (item 640), quantity 10.
  • Page 19 It is critical that the door filters are fitted in the correct positions as shown below. Opstation cutout (optional) CS Fan Filters (optional) Extra Filters if additional heat generating components fitted Page 19 - 30...
  • Page 20 Fit 200mm filters SY-000528 or equivalent Rittal SK3239.200 (parts not provided in kit). If required fit Opstation (6901-00-G and 6052-00-G) Page 20 - 30...

  • Page 21: Configuration Table

    Configuration Table Commonbus Drive Block 1 Block 2 Example► 890PX S A - 4 3215 Family AC890PX 890PX Common Bus Drive Air Cooled Rating Data 400V Nominal 460V Nominal Heavy/Normal Duty Chassis Assy CP Module CD Modules 110/132 215/260 150/200 200/250...
  • Page 22 Standalone Drive Block 1 Block 2 Example► 890PX S A - 4 3215 Family AC890PX 890PX Standalone Drive Air Cooled Rating Data 400V Nominal 460V Nominal Heavy/Normal Duty Chassis Assy CP Module CD Modules CS Module 110/132 215/260 150/200 200/250...
  • Page 23 LA501088U000_Page4 Page 23 - 30...
  • Page 24 LA501088U000_Page5 Page 24 - 30...
  • Page 25 LA501088U000_Page6 Page 25 - 30...
  • Page 26 LA501088U000_Page7 Page 26 - 30...
  • Page 27 LA501088U000_Page8 Page 27 - 30...
  • Page 28 HG501140 Page 28 - 30...
  • Page 29 HG501087 Page 29 - 30...
