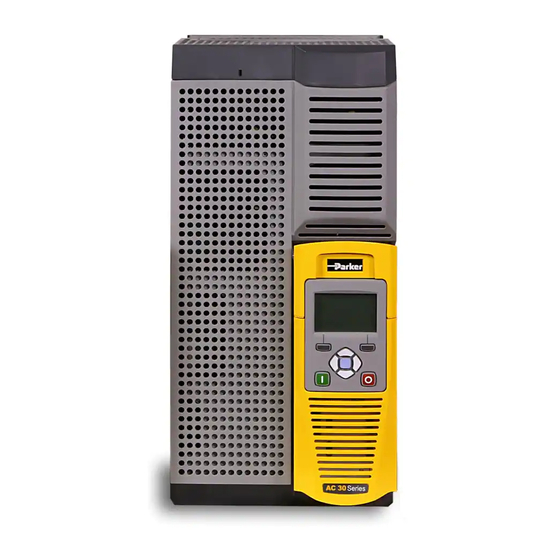

AC30V series
Fan Control Application
HA502134U002 Issue 2
Technical Manual
www.comoso.com
aerospace
climate control
electromechanical
filtration
fluid & gas handling
hydraulics
pneumatics
process control
sealing & shielding
ENGINEERING
YOUR
SUCCESS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC30V series and is the answer not in the manual?

Questions and answers

Related Manuals for Parker AC30V series

Summary of Contents for Parker AC30V series

  • Page 1 AC30V series climate control electromechanical Fan Control Application filtration fluid & gas handling hydraulics pneumatics HA502134U002 Issue 2 process control Technical Manual sealing & shielding ENGINEERING YOUR SUCCESS. www.comoso.com...
  • Page 2 The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalogue and in any other materials provided from Parker Hannifin Corporation or its subsidiaries or authorized distributors.

  • Page 3: Fan Control Application

     Copyright 2013 Parker Hannifin Manufacturing Limited All rights strictly reserved. No part of this document may be stored in a retrieval system, or transmitted in any form or by any means to persons not employed by a Parker Hannifin Manufacturing Limited company without written permission from Parker Hannifin Manufacturing Ltd.

  • Page 4: Fan Control Application Manual

    * 7004-01-00 or 7004-03-00 option required Requirements To use the AC30V for fan control as described in this manual, the application RA502134U002 must be loaded into an AC30V series drive with firmware 1.3.2 or newer. AC30V series Variable Speed Drive...
  • Page 5 Fan Control Application Manual AC30V series Variable Speed Drive www.comoso.com...
  • Page 6 When FALSE the Drive does not control Fan. The Fan will freewheel. DIGIN 07 (X12/04) NOT FIRE MODE When FALSE activates Fire Mode * If both Run inputs are TRUE, than MANUAL RUN has the highest priority. AC30V series Variable Speed Drive www.comoso.com...
  • Page 7 DIGOUT 11 (X20/01) LOAD WARNING Abnormal load detection low warning (belt slipping) DIGOUT 12 (X20/02) LOAD FAULT Abnormal load detection low fault (belt broken) DIGOUT 13 (X20/03) Not used DIGOUT 14 (X20/03) Not used AC30V series Variable Speed Drive www.comoso.com...
  • Page 8 1919: Preset Speed 3 1920: Preset Speed 4 1921: Preset Speed 5 1922: Preset Speed 6 1923: Preset Speed 7 1958: Use Auto Timer 1959: Run When Non Zero SP 1006: Run Setup? 1141: View Level AC30V series Variable Speed Drive www.comoso.com...
  • Page 9 1924: Selected Preset 0500: Ramp Speed Output 0399: Actual Torque 1964: Fire Mode Activated 1965: Fire Mode Ready Setup::Application and Monitor::Application Include all parameters listed in the table at the end of this manual. AC30V series Variable Speed Drive www.comoso.com...

  • Page 10: Abnormal Load Detect

    These 4 parameters specify together with the 4 Load parameters below are used to characterise the expected load ‘curve’ for the actual Speed. 1987 Load 1 1988 Load 2 Load 3 1989 Load 4 1990 See above Speed parameters. AC30V series Variable Speed Drive www.comoso.com...
  • Page 11 If not all points are required, a Speed may be set to zero to terminate the sequence. If the actual speed is greater than the last specified point, the line is extrapolated from the previous 2 points. Speed 1 must be non-zero, otherwise the abnormal load detection feature is disabled. AC30V series Variable Speed Drive www.comoso.com...
  • Page 12 If the actual Load remains in the FAULT region for longer than the duration specified by Fault Delay, the Drive will stop running. The Start Delay may be used to prevent incorrect warning or fault reported soon after the Run command is issued. The Load Monitor State diagnostic is reset when the Run command is removed. AC30V series Variable Speed Drive www.comoso.com...

  • Page 13: Fire Mode

    This diagnostic, when TRUE, indicates that the Fire Mode will operate if the Activate input becomes TRUE. The diagnostic will be FALSE if the fire mode Level is set to DISABLED or the fire mode Setpoint is set to 0.0%. AC30V series Variable Speed Drive www.comoso.com...
  • Page 14 Selecting PARTIAL mode leaves the drive protection features enabled. Selecting FULL mode disables some of the drive protection features. Caution Regardless of the setting of Level, activating Fire Mode may cause damage to the motor or attached equipment. AC30V series Variable Speed Drive www.comoso.com...
  • Page 15 This is similar to the normal behavior of the Drive, (when Fire Mode is not active). However, when Fire Mode is active the firmware within the Drive continues to monitor the trip source, once the trip source has become inactive the drive automatically resets the trip condition and restarts the drive. AC30V series Variable Speed Drive www.comoso.com...

  • Page 16: Preset Speeds

    Preset Speed Output when Selected Preset equals 7 1924 Selected Preset* Diagnostic showing selected preset number Select 0 This is connected to a Digital Input as part of the selected macro. It provides bit 0 of the Selected Preset number. AC30V series Variable Speed Drive www.comoso.com...
  • Page 17 FALSE Preset Speed 2 FALSE FALSE FALSE Preset Speed 3 TRUE FALSE TRUE Preset Speed 4 TRUE TRUE FALSE Preset Speed 5 TRUE FALSE FALSE Preset Speed 6 TRUE FALSE FALSE Preset Speed 7 AC30V series Variable Speed Drive www.comoso.com...
  • Page 18 Sets the minimum value for the Setpoint analogue input (ANIN01). It corresponds to the minimum input value of either -10V, 0V, 0mA or 4mA depending on the setting of 0001: Anin 01 Type. Functional Description setpoint = ((input / 100) x (Setpoint Input Max – Setpoint Input Min)) + Setpoint Input Min AC30V series Variable Speed Drive www.comoso.com...
  • Page 19 This feature removes the requirement of a transition from FALSE to TRUE on the run command. This allows an immediate start of the motor when power is applied to the Drive. Caution The Drive may run without warning. AC30V series Variable Speed Drive www.comoso.com...

  • Page 20: Skip Frequencies

    The skip frequencies are symmetrical and thus work in forward and reverse. Setting a Frequency to 0.0 disables the corresponding band. Setting a Band to 0.0 causes the value of Band 1 to be used for this band. AC30V series Variable Speed Drive www.comoso.com...
  • Page 21 Fan Control Application Manual Drive Frequency Setpoint Frequency 1 Frequency 2 The behaviour of this function is illustrated below. Drive Frequency Skip band Skip Frequency Setpoint AC30V series Variable Speed Drive www.comoso.com...
  • Page 22 Fan Control Application Manual Drive Frequency Frequency 2 Setpoint Frequency 1 AC30V series Variable Speed Drive www.comoso.com...

  • Page 23: Time Of Day Timer

    More than one bit may be set to indicate the event is valid on more than one day. Hexadecimal Decimal Day Of Week SUNDAY MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY SATURDAY AC30V series Variable Speed Drive www.comoso.com...
  • Page 24 This diagnostic is the Event Select value for the Active Event. If there are no programmed events this will be set to 0. 2035 Day Of Week Now* This diagnostic is the day of the week today as determined by the Real Time Clock (RTC). This is an enumerated value: 0 SUNDAY AC30V series Variable Speed Drive www.comoso.com...
  • Page 25 It then makes this Event active. In the example above, if power-up was 10:00 on SATURDAY then Event 2 would be active, but if at 10:00 on a SUNDAY then Event 6 would be active. AC30V series Variable Speed Drive www.comoso.com...
  • Page 26 1960 Power Up Start Setup::Application::Sequencing BOOL FALSE ALWAYS 04449 1961 Fire Mode Setpoint Setup::Application::Fire Mode REAL -100.0 to 100.0 ALWAYS 04451 0:DISABLED USINT 1962 Fire Mode Level Setup::Application::Fire Mode 1:PARTIAL ALWAYS 04453 (enum) 2:FULL AC30V series Variable Speed Drive www.comoso.com...
  • Page 27 0.0 to 100.0 ALWAYS 1978 Speed 3 04483 1979 Speed 4 04485 1987 Load 1 04501 1988 Load 2 04503 Setup::Application::Abnormal Load Detect REAL 0.0 to 100.0 ALWAYS 1989 Load 3 04505 1990 Load 4 04507 AC30V series Variable Speed Drive www.comoso.com...
  • Page 28 Event Time Of Day 1 04553 2014 Event Time Of Day 2 Setup::Application::Time Of Day Timer 04555 TIME_OF 0:00:00 to 0:00:00 ALWAYS _DAY 23:59:59 2015 Event Time Of Day 3 04557 2016 Event Time Of Day 4 04559 AC30V series Variable Speed Drive www.comoso.com...
  • Page 29 Monitor::Application::Time Of Day Timer USINT 0 to 6 NEVER 04601 2038 Setpoint Input Max Setup::Application::Reference REAL 100.00 -200.00 to 200.00 ALWAYS 04417 2039 Setpoint Input Min Setup::Application::Reference REAL 0.00 -200.00 to 200.00 ALWAYS 04419 AC30V series Variable Speed Drive www.comoso.com...
  • Page 30 Free phone: 00 800 27 27 5374 (from AT, BE, CH, CZ, DE, EE, ES, FI, FR, IE, IL, IS, IT, LU, MT, NL, NO, PT, SE, SK, UK) Parker Hannifin Manufacuring Limited Automation Group, SSD Drives Europe, New Courtwick Lane, Littlehampton, West Sussex.
