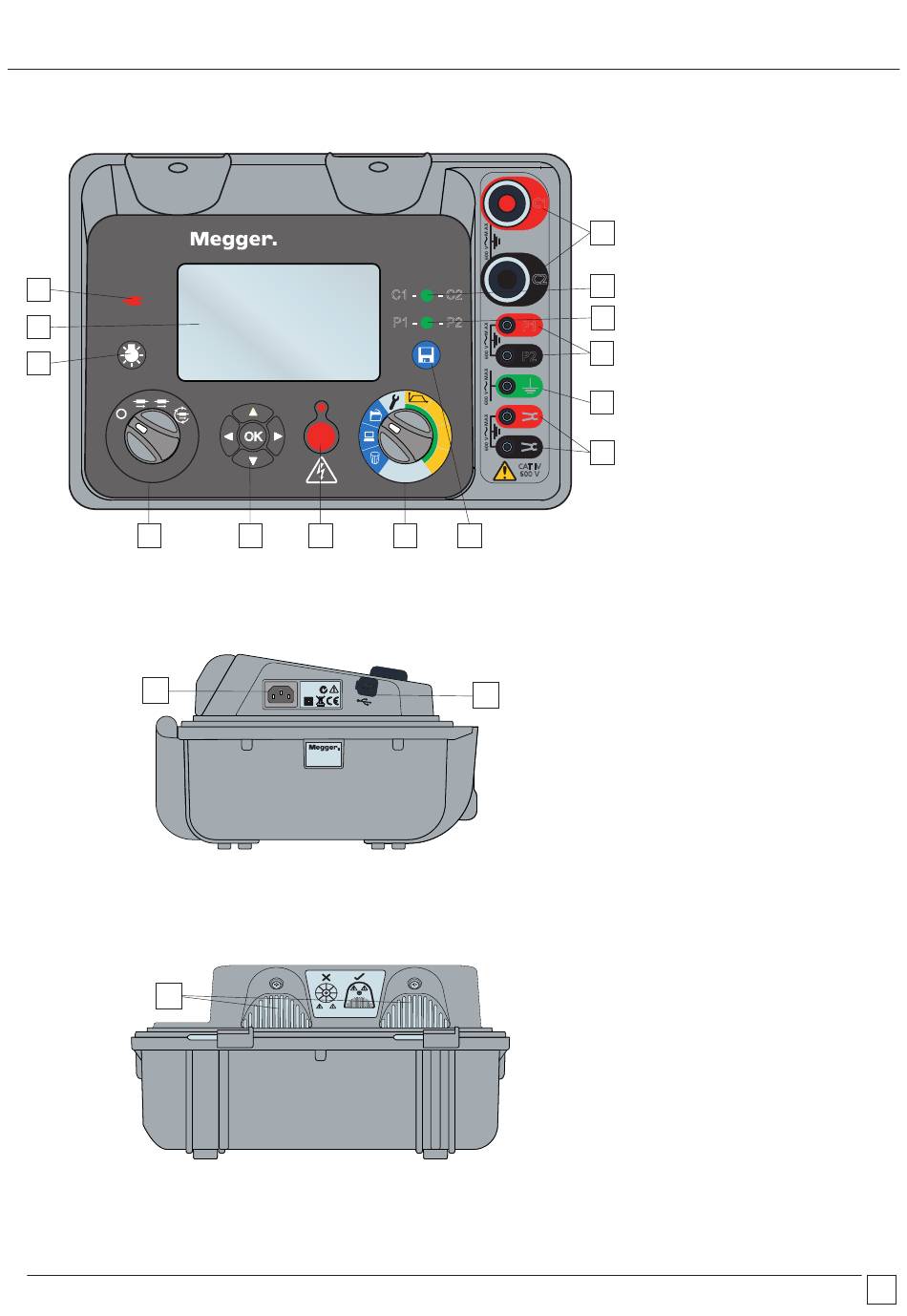

Instrument controls and indicators

14
13
12
MAN AUTO
11
15
17
DLRO100E, 100X & 100H – 100A
DLRO100
C1 -
P1 -
OK
TEST
10 9 8
90-264 V N13117
47-63 Hz
500 VA
DLRO100EB
Made in UK by Megger
C1
1
C2
2
- C2
3
- P2
P1
4
P2
5
10A
Ω
50A
6
100A
CAT IV
600 V
7
16
1. Current terminals
– C1 - C2
2. C1 - C2 LED
indicates continuity
on the C terminals
3. P1 - P2 LED
indicates continuity
on the P terminals
4. Potential terminal
- P1 - P2
5. Measurement earth
terminal
6. DualGround™ terminal
100X and 100H only
7. Save button
100X and 100H only
8. Range rotary switch
9. TEST button with
associated warning lamp
10. Navigation / OK buttons
11. Test mode rotary switch
12. Backlight button
13. Display
14. LED indicating line
power / mains
15. Power socket
16. USB Device port
100X and 100H only
17. Cooling fans with
IP54 cover
