2. Instrument set-up

Charging and turning the instrument on

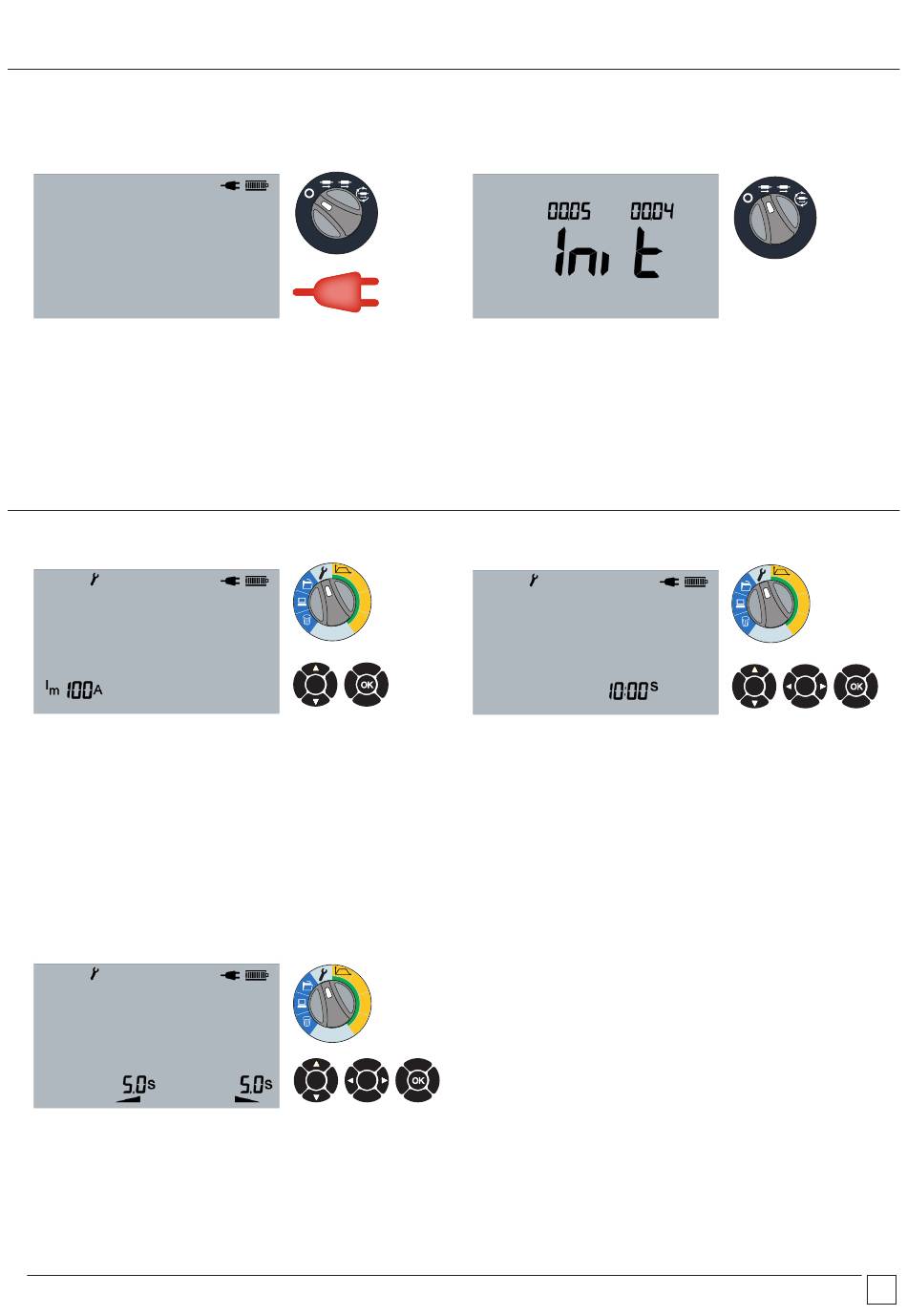

2.1 Charging screen – Instrument 0ff
Instrument switched off, mains connected and battery charging.
Fans will be running.
User settings
2.3 Set max current
Maximum current adjusted between 10 A and 100 A with UP
and DOWN arrows. Select OK to accept and progress to set test
duration.
For test durations of greater than 10 minutes the current setting
is limited to a maximum of 59A
2.5 Set Ramp Up/Down
Ramp Up/Down duration adjusted with UP and DOWN arrows.
Seconds and half seconds selected with LEFT and RIGHT arrows.
Select OK to accept.
DLRO100E, 100X & 100H – 100A
2.2 Screen
MAN AUTO
Successful initialisation.
2.4 Set test duration
10A
Ω
50A
100A
OK
Test duration is adjusted with UP and DOWN arrows. Minutes and
seconds are selected with LEFT and RIGHT arrows. Select OK to
accept.
For currents of above 59A the test duration is limited to a .
maximum of 10 minutes.
10A
Ω
50A
100A
OK
MAN AUTO
10A
Ω
50A
100A
OK
12
