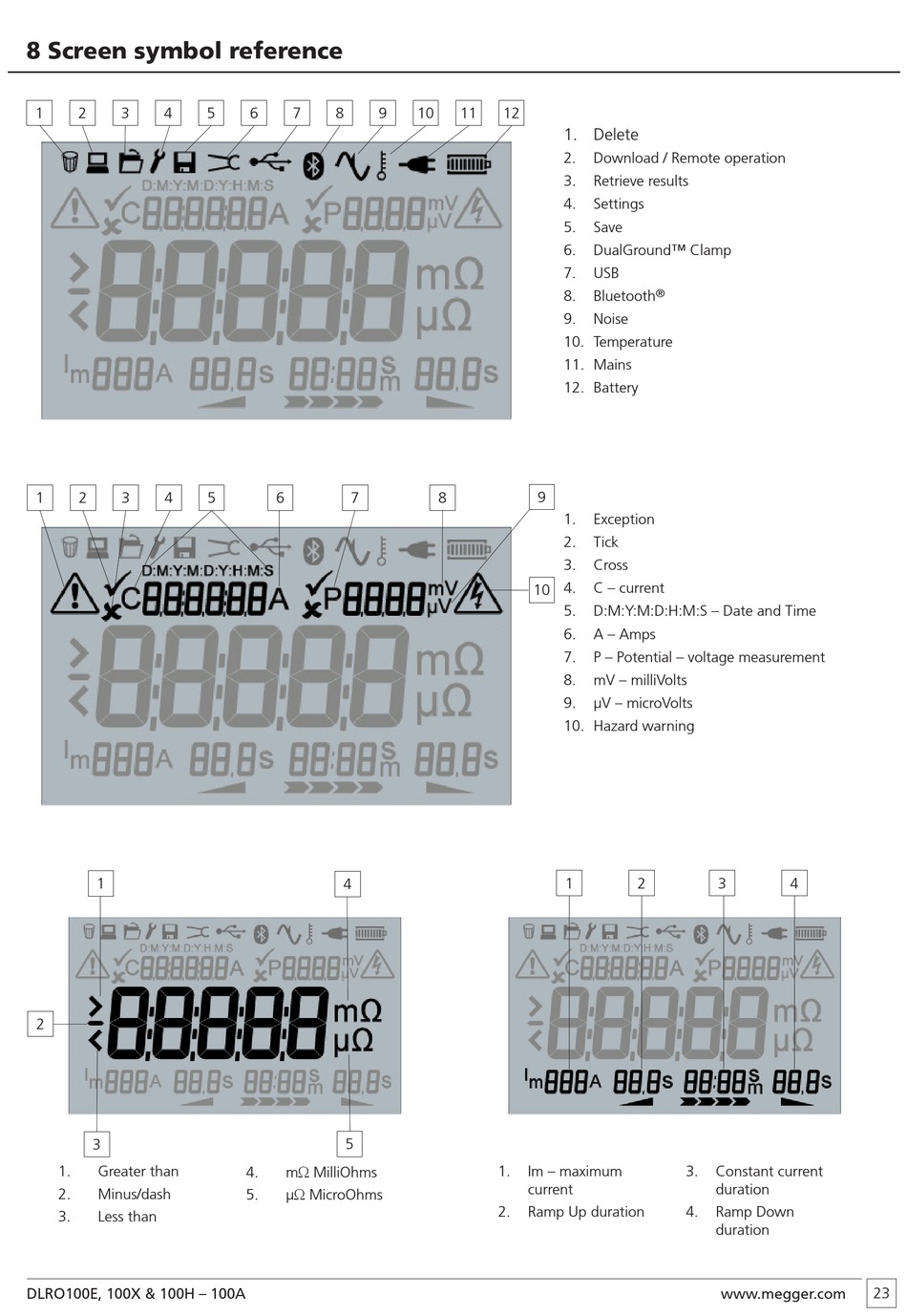

8 Screen symbol reference

1 2 3 4
1 2 3 4
1
2
3
1. Greater than
2. Minus/dash
3. Less than
DLRO100E, 100X & 100H – 100A
5 6 7 8
5 6 7
4
5
4. mW MilliOhms
5. µW MicroOhms
9 10 11 12
9
8
10
1. Im – maximum
current
2. Ramp Up duration
1. Delete
2. Download / Remote operation
3. Retrieve results
4. Settings
5. Save
6. DualGround™ Clamp
7. USB
8. Bluetooth ®
9. Noise
10. Temperature
11. Mains
12. Battery
1. Exception
2. Tick
3. Cross
4. C – current
5. D:M:Y:M:D:H:M:S – Date and Time
6. A – Amps
7. P – Potential – voltage measurement
8. mV – milliVolts
9. µV – microVolts
10. Hazard warning
1 2 3
3. Constant current
duration
4. Ramp Down
duration
