1. Testing modes

Manual and auto test

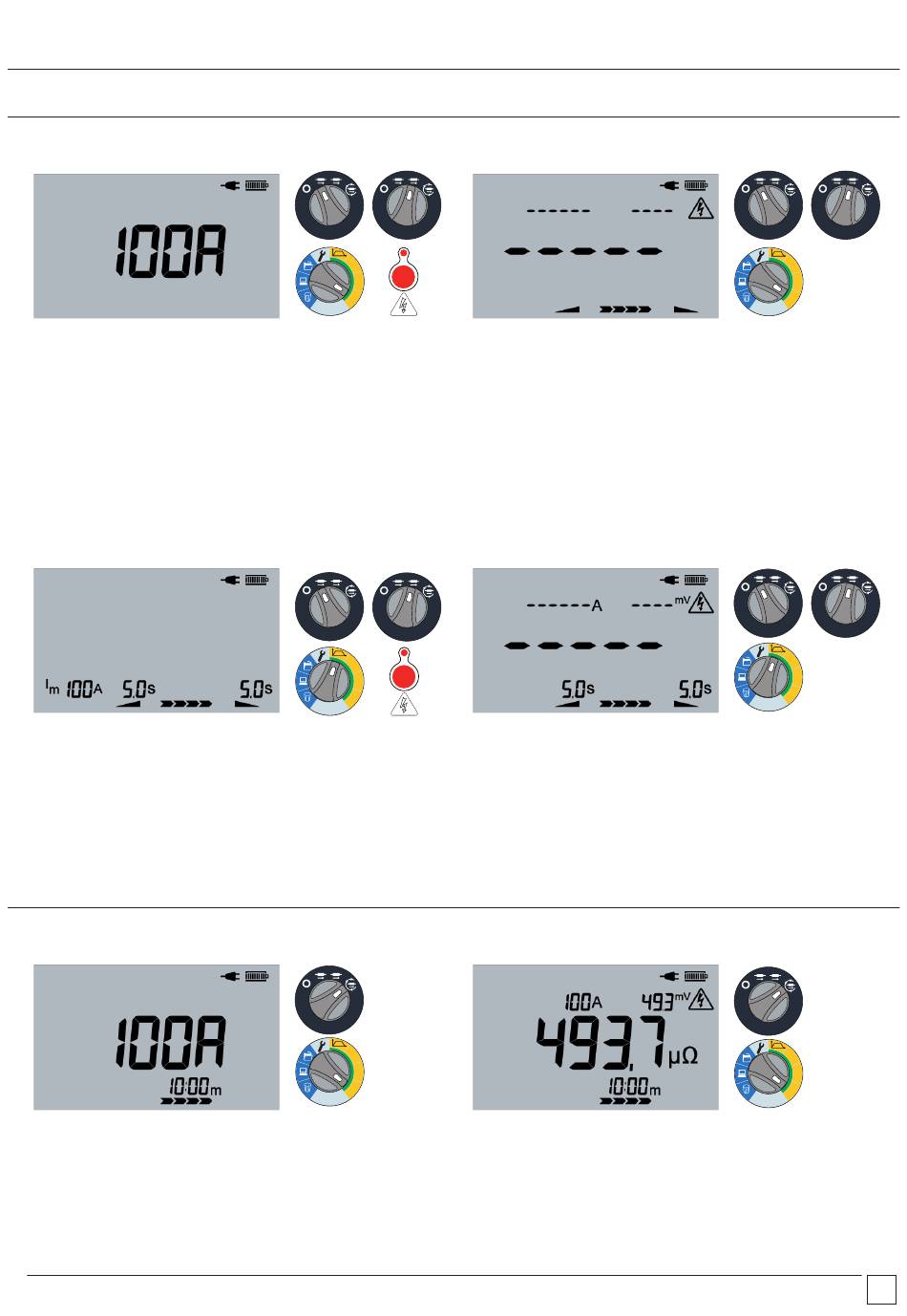

1.1 Preset test
100/50/10A - Initial
Select current on rotary switch.
Press test button to start the test.
To configure date and time for saved results - refer to Instrument
set-up section 2.6
1.3 User configured Manual and Auto test - Initial
Press test button to start a custom test.
To configure test setting for user configured test, date and time
for saved results - refer to Instrument set-up section 2.6
Continuous test
1.5 Preset test 100/50/10A - Initial
Press test button to start a continuous test.
To configure date and time for saved results - refer to Instrument
set-up section 2.6
DLRO100E, 100X & 100H – 100A
1.2 Preset test
100/50/10A - Progress
MAN AUTO MAN AUTO
10A
Ω TEST
50A
100A
Active test screen.
1.4 User configured Manual and Auto test - Progress
MAN AUTO MAN AUTO
10A
Ω
TEST
50A
100A
Active custom test screen.
1.6 Preset test 100/50/10A - Progress
MAN AUTO
10A
Ω
50A
100A
Active continuous test screen.
MAN AUTO MAN AUTO
10A
Ω
50A
100A
MAN AUTO MAN AUTO
10A
Ω
50A
100A
MAN AUTO
10A
Ω
50A
100A
10
