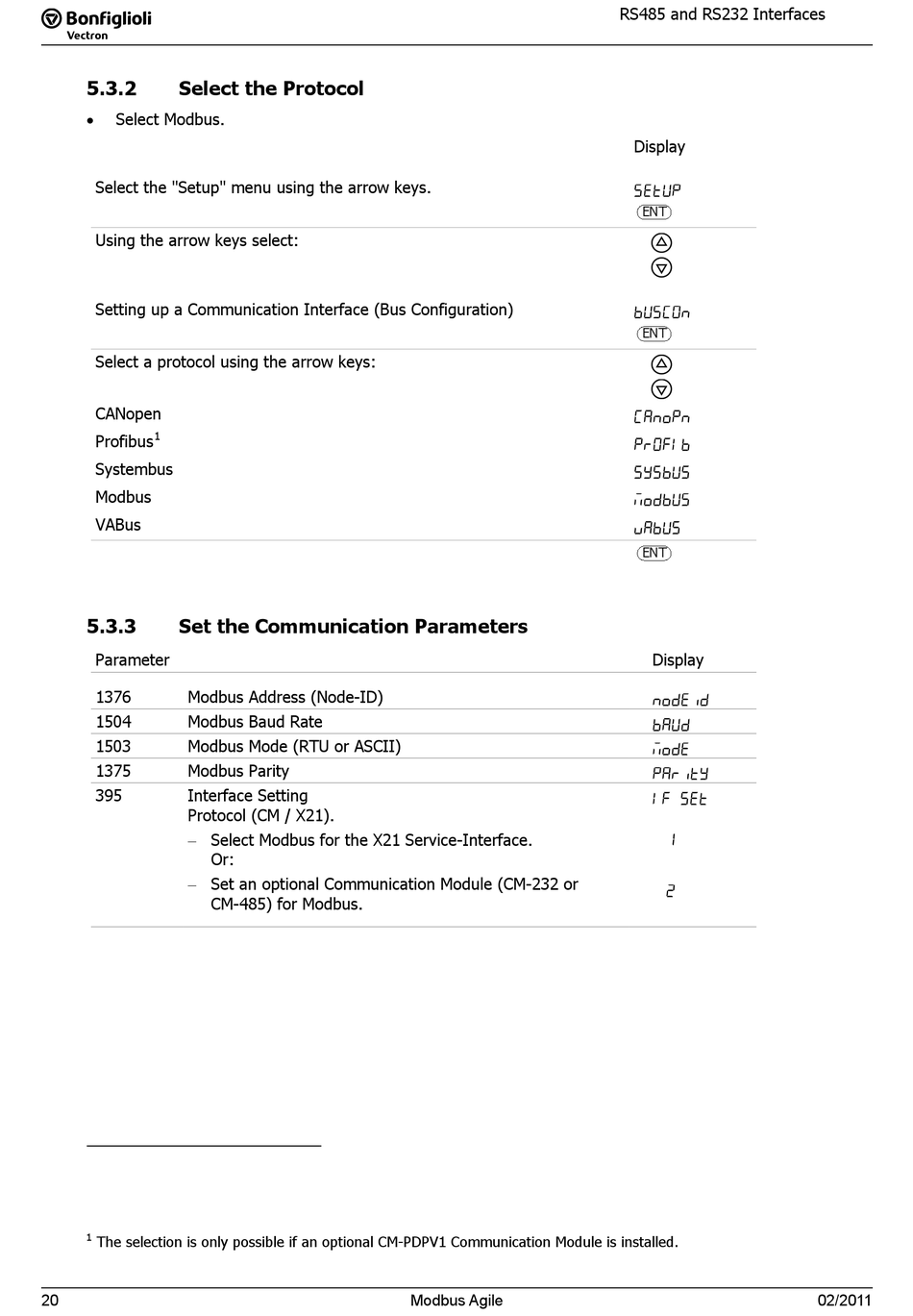

5.3.2

Select the Protocol

• Select Modbus.
Select the "Setup" menu using the arrow keys.
Using the arrow keys select:
Setting up a Communication Interface (Bus Configuration)
Select a protocol using the arrow keys:
CANopen
1
Profibus
Systembus
Modbus
VABus
5.3.3

Set the Communication Parameters

Parameter
1376 Modbus Address (Node-ID)
1504 Modbus Baud Rate
1503 Modbus Mode (RTU or ASCII)
1375 Modbus Parity
395 Interface Setting
Protocol (CM / X21).
− Select Modbus for the X21 Service-Interface.
Or:
− Set an optional Communication Module (CM-232 or
CM-485) for Modbus.
1
The selection is only possible if an optional CM-PDPV1 Communication Module is installed.
20 Modbus Agile
RS485 and RS232 Interfaces
Display

ENT

ENT





ENT
Display




 


