Summary of Contents for Houghton BELAIRE H2000

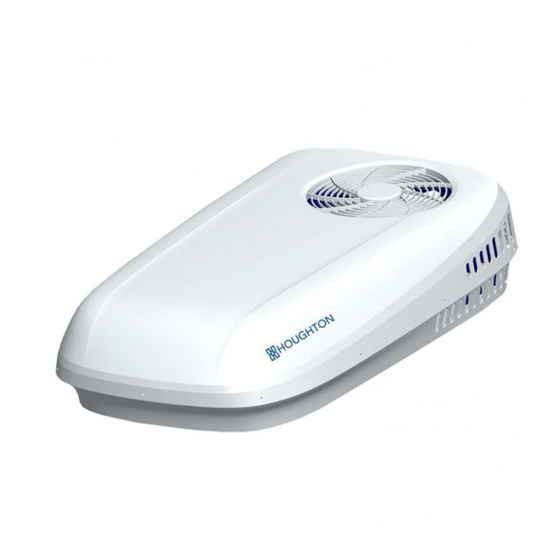

- Page 2 Safety Notices Dear user, thank you for choosing a HOUGHTON caravan air-conditioner. For your ease of use and safe maintenance we have included the following symbols in this manual: All the contents with this “Warning” logo are about the safety of the product and the user, the user shall operate in strict compliance with the instructions.
-
Page 3: Table Of Contents
Table of Contents Safety Notes................................ 1 Product Introduction............................2 Packing List................................ 3 Installation Guidance............................4 Instructions for Use............................10 Operation Instruction of the Remote Controller.................... 11 Product Maintenance............................16 Specification Parameters..........................17 Exploded Diagram and Parts List........................18 Trouble shooting guide............................ 20 Circuit Diagram..............................21... -
Page 4: Safety Notes
Safety Notes Make sure the external electric supply socket of the caravan air-conditioner is effectively grounded in accordance with your local regulations. Failure to ground the unit correctly may cause electric shock or fire. The caravan air-conditioner shall be switched on for electric leakage detection after installation. -
Page 5: Product Introduction
Many factors will affect the total heat load within the caravan and many factors can also affect the working efficiency of the air-conditioner. Before purchasing HOUGHTON BELAIRE, the user shall consult with the caravan manufacturer to understand the total heat load of the caravan and to choose the correct air-conditioner for the application. -
Page 6: Packing List
Packing List Installation parts list Main parts: 1．BELAIRE air-conditioner outdoor unit×1 2．Outlet air duct ×1 3．Chassis reinforced support ×1 4．Plenum mounting bracket ×1 5．Return air filter ×2 6．Plenum assembly ×1 Accessories & fixing devices: 7．M8 x 120 mm bolts ×4 8．Fixing metal plate ×4 9．Large washer ×4 10．Plenum screw ×4... -
Page 7: Installation Guidance
Do not add other parts or restructure the product in the installation. The installers shall be equipped with refrigeration technician qualification certificates. Consult with HOUGHTON or the local distributor in the case of unusual applications or installation conditions that are not specifically covered by this manual. -
Page 8: Plenum
For advice on installations outside of these limits please contact with HOUGHTON or the local distributor. The left lower figure shows the minimum clearance distance required between the BELAIRE air-conditioner and any obstructions on the roof. -
Page 9: Plenum Mounting
Installation of chassis reinforced Make sure the roof is clean and dry and free from oil & grease. Confirm orientation by starting with the “this side up” logo upwards. Turn the part over and on the reverse side of “this side up”, apply silicone sealant uniformly over the path shown. ... -
Page 10: Fixing Metal
Connect the power supply Pay attention to the local wiring regulations that need to be followed when connecting to mains supply. Look upward from inside the caravan, and locate the terminal block as shown in the figure below. ... - Page 11 When you have heard 4 clicks and the end of the duct Attach the plenum assembly to the plenum mounting is firmly parallel to the top side of the bracket then you bracket by engaging the two parts. You will hear four have successfully connected.
- Page 12 Take out the return air filter and fix the plenum to the ceiling with 4 provided countersunk head screws. Finally, fit both return air filter into the plenum properly and the installation is all completed.
-
Page 13: Instructions For Use
Instructions for Use Switch on the power to the air-conditioner at the isolation breaker. Start the air-conditioner by switching to FAN mode to select the fan FAN. Operate in low FAN, medium FAN and high FAN in turn to check normal operation. ... -
Page 14: Operation Instruction Of The Remote Controller
Operation Instruction of the Remote Controller Remote controller Plenum display Touch screen key Temperature Mode display display... - Page 15 1. Operation of the remote controller Turn on Press the on/off “ ” key, the machine turns on, the buzzer of the plenum beeps one time and the running mode and temperature will be displayed. FAN mode Press the “MODE” key, select the mode, Press the “FAN”...
- Page 16 DRY mode Press the“MODE”key, select the“ ” mode, Press the down“▼”key to set the temperature 1℃ lower than the room temperature , and the plenum will display and the setting temperature. HEAT mode Press the “MODE” key, select the mode, Press the up “ ▲ ” key to set the temperature higher than the room ...
- Page 17 Note When in the AUTO mode, according to the difference between the setting temperature and the environmental temperature , the plenum will display “ ”and “ ”(automatic heating), or “ ” and “ ” (automatic cooling) in the same time. Celsius and Fahrenheit degree change In any mode，Press the“℃/℉”key，you can select temperature between Celsius and Fahrenheit.
- Page 18 2. Plenum operation OFF ->COOL ->FAN ->HEAT Press the touch screen “ ” key on the plenum, the setting will be circularly from “ ” modes for every pushing. The setting temperature is 24℃ in high fan FAN. Mode display of the plenum are as: COOL “...
-
Page 19: Product Maintenance
Product Maintenance Filter The return air filters are the only components that need to be maintained periodically. Check and clean the filter screen each week when in use to prevent the filter from being blocked by dirt. The filter should be washed frequently to ensure effective cooling and heating. ... -
Page 20: Specification Parameters
Specification Parameters Model H2000C H2000 H2400 H2600 Power supply 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz Refrigerant charged R407C/450g R407C/470g R407C/450g R407C/420g Rated cooling capacity (W) 2000 2000 2400 2600 Rated heating capacity (W) 2000 2400 2600 —— Input power for cooling (W) 1150 Input power for heating (W) 1050... -
Page 21: Exploded Diagram And Parts List
Exploded Diagram and Parts List No four-way valve components for cooling only units! -
Page 22: Large
Figure No. Name 18-12-13 Slotted large raised cheese head screw (white paint sprayed) 4728-1000-01 Canopy (silk-screen pattern) 4638-1000-10 B type plate spring nut 4728-1000-02 Chassis (with inserts) 4728-1000-08 Evaporator housing 4728-1000-07 External motor bracket 4728-1000-13 Motor screw 4728-1700-27 Outer rotor fan 4618-1000-06 Compressor 1(H2400) -
Page 23: Trouble Shooting Guide
Trouble shooting guide No display of the plenum when press the On/Off E1: Room temperature sensor Check whether the access to the power of the RV OK? Fault in connection to temperature sensor or Check whether the remote battery is OK? other damage. -
Page 24: Circuit Diagram
Circuit Diagram H2000、H2400、H2600 H2000C... - Page 25 V2 4728-2000-01...
