- Page 1 QUICK START FLIR MODEL CM275 TM Imaging Clamp Meter with IGM and Bluetooth®...

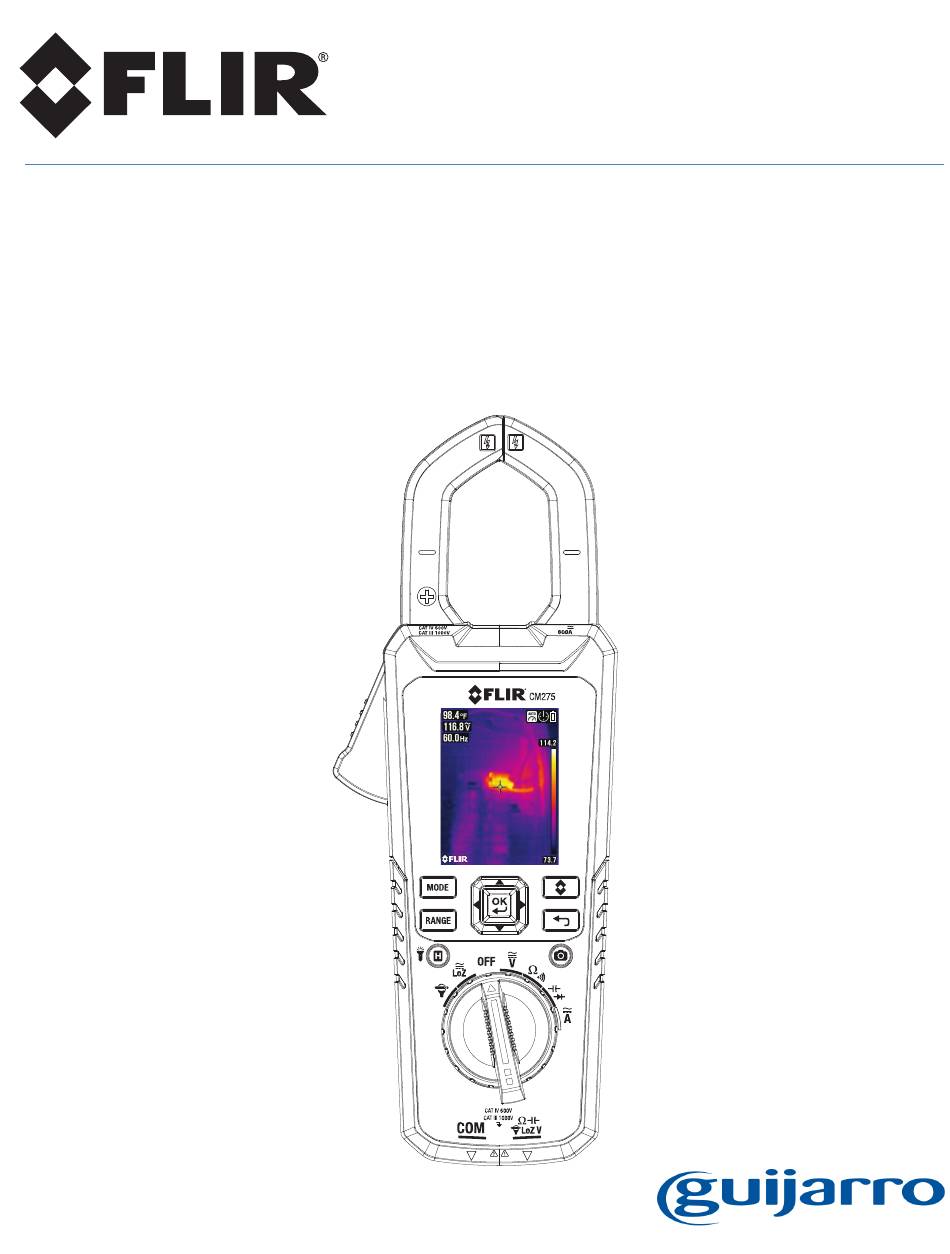

- Page 2 CM275 QUICK START – EN The latest versions of the detailed User Manual and Quick Start, with translations, are located on the support.flir.com web site (download tab). Please Register for Extended Warranty and Product Updates at www.flir.com/testwarranty QUICK VIEW (FRONT) Jaw opening trigger Navigation Pad/OK button MODE button RANGE button Data Hold (short press)/Work Light (long press) Rotary function switch COM (negative ‐) Probe Input jack Positive (+) Probe Input jack Image/Display Save button (short press) 10. Return/Exit button 11. IGM button (short press) 12. Color TFT Display 13. Clamp jaw QUICK VIEW (BACK) 14. Work lights 15. Laser pointer lens 16. Thermal Imaging lens 17. Tripod mount 18. Battery compartment 19. Battery compartment lock/unlock Note: A micro USB port is located in the battery compartment for transferring images and data logs to PC THERMAL IMAGING QUICK STEPS a. Move the rotary switch (6) to any position. ...
- Page 3 images. Image‐only: Display does not show clamp meter data. Press OK on the Image mode icon and use the arrow buttons to select the desired option. This menu is only available in the thermal image mode. THERMAL SETTINGS MENU Press OK to open the main menu. Press OK again on the Thermal Settings menu icon . This menu is only available in the thermal image mode. Refer to the table below. Icon Description Operation Palette Press OK to select a color palette (Iron, Rainbow, or Gray) Press OK and use arrows to scroll to a preset (0.95, 0.85, 0.75, or 0.65) or to the Emissivity fine tuning Ԑ icon. To fine tune, press OK at the fine‐tune icon and use the arrows to set; press OK to confirm. (Range: 0.10 to 0.99 in 0.01 steps) Units Press OK to toggle the temperature units ( F) Laser Press OK to toggle the laser pointer ON or OFF Cross hairs Press OK to switch the cross hairs ON or OFF GALLERY MENU 1. Press OK at the Gallery icon to view the saved images and data log sets. 2. Use the arrows to scroll through data logs (upper area) and images (lower area). 3. Press OK to open a log or an image. FLIR CM275 – QUICK START Document Identifier: CM275‐QS‐en‐US_AB ...
- Page 4 from 1 ~ 99 seconds; press OK to confirm Press OK to open. Use the arrow buttons to scroll and to select the Real‐time clock current date and time; press OK to confirm Battery type Press OK to select battery type in use: Alkaline or Lithium Press OK to toggle Bluetooth® ON/OFF. Refer to the User Manual for Bluetooth® complete details. Button press tone Press OK to toggle the button press tone ON/OFF Press OK to open menu. Scroll to the desired language and press OK. Language Display language Press RETURN to exit Clear log readings Press OK to delete all datalogger records Clear Images Press OK to delete all saved images Help Screen Press OK to view FLIR support contact information Press OK to see firmware , Lepton , Bluetooth® , and laser Information icons. Press OK at the desired icon to view its information. STATUS BAR DISPLAY ICONS Left to right, row 1: Datalogger, Data Hold, Auto Range, Laser, Work Light, Bluetooth®, APO, Battery Left to right, row 2: Inrush current, DCA Zero, Flex Clamp (icon and range), VFD, Low Impedance mode Note that Diode and Continuity symbols also appear in the Status bar area of the display. FLIR CM275 – QUICK START Document Identifier: CM275‐QS‐en‐US_AB ...
- Page 5 MAX‐MIN MEMORY Display maximum and minimum readings, updating only when a higher/lower value is registered. 1. Press OK to access the Main menu 2. Press OK at the Advanced Menu icon 3. Press OK at the MAX‐MIN icon to show Maximum and Minimum readings. INRUSH CURRENT In Inrush Current mode ( ), the meter displays the AC RMS current reading for the first 100ms period after the trigger point (current detection threshold) is reached. Please refer to the User Manual for the Current detection threshold specifications. DC CURRENT ZERO The DC zero feature removes offset and improves DC Current accuracy. Before executing the steps below, set the clamp meter to the DC Current measurement mode. 1. Press OK to access the Main menu 2. Press OK at the Advanced Menu icon 3. Press OK at the DCA Zero icon , the display will zero DATALOGGER Log up to 40,000 total readings over ten memory ‘sets’. Each time the datalogger is started a new ‘set’ is created. Press OK to access the Main menu, press OK at the Advanced Menu icon, and press OK at the datalogger icon to begin logging. Refer to the User Manual and to the Gallery Settings Menu, General Settings Menu and Advanced Menu sections earlier in this Quick Start for additional information on datalogger functionality. FLIR CM275 – QUICK START Document Identifier: CM275‐QS‐en‐US_AB ...
- Page 6 TEST LEAD MEASUREMENTS CURRENT CLAMP MEASUREMENTS FLEX CLAMP ADAPTOR MEASUREMENTS SMART DIODE BASICS In SMART Diode mode, the meter sends a polarity‐alternating test signal through the diode (no need to reverse polarity manually). 1. Select ‘SMART’ diode as shown in the General Settings Menu section. 2. Set the function switch to the diode position and use the MODE button to select diode (if necessary). 3. Connect red and black test leads to meter and measure across an unpowered diode. The meter will show ± 0.400 ~ 0.800V for a good diode, ‘BAD’ for a shorted diode, and ‘O.L’ for an opened diode. For detailed information, please refer to the User Manual. FLIR CM275 – QUICK START Document Identifier: CM275‐QS‐en‐US_AB ...
- Page 7 Corporate Headquarters FLIR Systems, Inc. 2770 SW Parkway Avenue Wilsonville, OR 97070 USA Telephone: +1 503‐498‐3547 Customer Support Technical Support Website http://support.flir.com Technical Support Email TMSupport@flir.com Service and Repair Email Repair@flir.com Customer Support Telephone +1 855‐499‐3662 option 3 (toll free) Certificate of Conformity and ISO 9001 Quality Management System FLIR Commercial Systems, Inc., an ISO 9001 certified company, hereby certify that our instruments meet or exceed the specifications stated in the user manuals. This instrument was produced under the stringent guidelines of FLIR Commercial System’s certified ISO 9001 Quality Management System from design to delivery. All instruments are calibrated and inspected to meet the stated specifications. FLIR Commercial Systems, Inc. inspects its incoming shipments using an approved sampling plan with an Acceptable Quality Level (AQL). All incoming inspections are performed using test equipment that is traceable to National Standards. Our ISO 9001 Quality Management System extends to aftermarket support where tested quality procedures are applied to customer support, service, calibration and repair processes. This instrument will provide years of reliable service when used in accordance with the instructions provided in the User Manual. To have this device certified please contact your local service center. Quality Assurance Management Publication Identification No.: CM275‐QS Release version: AB Release Date: November 2017 Language: en‐US Copyright © 2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form. www.flir.com ...
