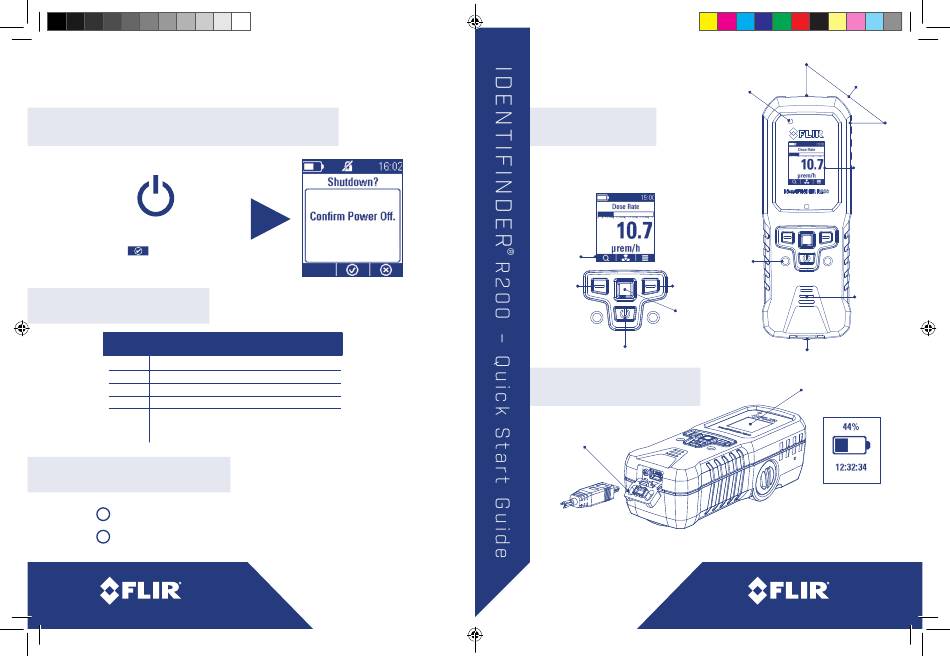

FLIR IDENTIFINDER R200 Quick Start Manual

TURN IDENTIFINDER R200 OFF
Press and hold Power button until
prompted for confirmation.
Select to confirm power off.
KIT CONTENTS In addition to the identiFINDER R200 instrument, the kit
(P/N 4204085) includes the following items:
P/N DESCRIPTION
4204026 Power Supply; includes US, UK, EU and AU Adaptors
4204015 USB Cable 2.0; type A to mini-B male; 2.0 meters
102001 Wrist Strap Lanyard; 24 inches; black
4203626 Holster
4204014 USB Flash Drive
• Quick Start Guide PDF
• Operations manual PDF
• Software Drivers Installer
NEED MORE INFO?
1 Read Operations Manual (PDF): located on USB drive.
2
Access Online Resources: Go to https://flir.pw/r200
4.6x6.1_R200_QSG_022216.indd 2-3
Equipment described herein may require US
Government authorization for export purposes.
Diversion contrary to US law is prohibited.
©2016 FLIR Systems, Inc. All rights reserved.
02232016
LED Indicator
Green = Power On

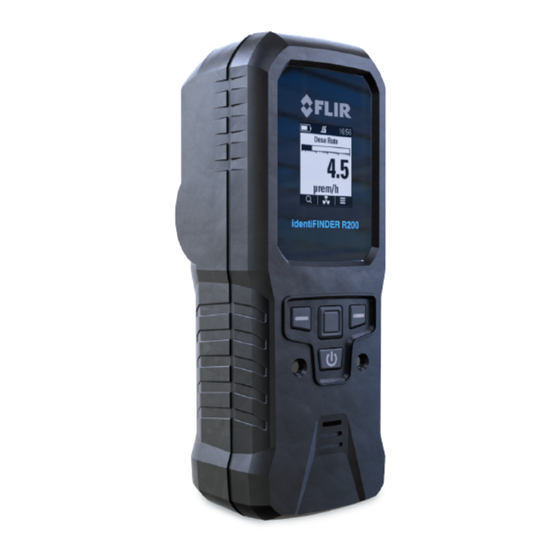

OVERVIEW
identiFINDER R200 SPRD
Display and Navigation Buttons
Navigation Buttons correspond to
command icons on Display Taskbar
Taskbar
LED Indicator
Red = Alarm
Left Right
Center
Power
CHARGE BATTERY
and replace backup battery
Flip down port cover and
insert charging cable.
Center of
Detection
Display
Speaker
Connection Port
(For Charging & Communication)
Display indicates
percent charged
Replace Backup Battery
Rotate counter-clockwise to remove
Backup Battery Door. Remove old CR123A
battery and insert new one. Rotate battery
door clockwise until fully sealed.
