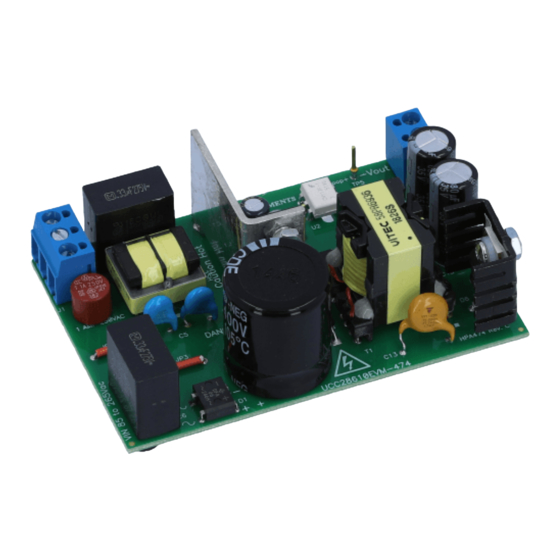

  • Page 2 Converter Introduction The UCC28610EVM-474 evaluation module is a 25-W off-line Discontinuous Mode (DCM) flyback converter providing 12 V at 2.1-A maximum load current, operating from a universal AC input. The module is controlled with the UCC28610 Green-Mode Flyback Controller which uses a cascoded architecture that allows fully integrated current control without an external sense resistor.
  • Page 3 EVM can be handled. Serious injury can occur if proper safety precautions are not followed. SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...

  • Page 4: Electrical Performance Specifications

    Electrical Performance Specifications www.ti.com Electrical Performance Specifications Table 1. UCC28610EVM-474 Electrical Performance Specifications PARAMETER CONDITIONS UNITS INPUT CHARACTERISTICS Input voltage VRMS Input current = 115 V = max = 115 V = 0 A 0.03 Brown out = max UVLO...
  • Page 5 Figure EXAS NSTRUMENTS Figure 1. Placement of Revision Code for the Evaluation Module. SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 6 Schematic/Revision Code Placement www.ti.com Figure 2. UCC28610EVM-474 Schematic SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...

  • Page 7: Circuit Description

    U2. Using an opto with a low CTR provides better noise immunity. Resistor R13 is used as an injection point for small signal frequency response testing. SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...

  • Page 8: Evm Test Set Up

    Figure 3 shows the basic test set up recommended to evaluate the UCC28610EVM-474 with a load. WARNING High voltages that may cause injury exist on this evaluation module (EVM).

  • Page 9: Power Meter

    Recommended Test Set Up for Operation Without a Load DMM V AC SOURCE Neutral Line EXAS NSTRUMENTS POWER METER Oscilloscope Figure 3. UCC28610EVM-474 Recommended Test Set Up Without a Load Recommended Test Set Up for Operation With a Load DMM V AC SOURCE Neutral Line EXAS NSTRUMENTS ELECTRONIC...

  • Page 10: List Of Test Points

    Positive output terminal of the EVM to the load J2-2 -Vout Return connection of the EVM output to the load SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...

  • Page 11: Test Procedure

    4. Make sure the input power is off and the bulk capacitor and output capacitors are completely discharged before handling the EVM. SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...

  • Page 12: Output Voltage Ripple

    1. Ensure the load is at maximum; this will quickly discharge the output capacitors. 2. Turn off the AC source. SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...

  • Page 13: Performance Data And Typical Characteristic Curves

    Performance Data and Typical Characteristic Curves www.ti.com Performance Data and Typical Characteristic Curves Figure 6 through Figure 23 present typical performance curves for the UCC28610EVM-474. EFFICIENCY vs. LOAD CURRENT 0.870 0.860 0.850 85VAC 0.840 115VAC 230VAC 0.830 264VAC 0.820 0.810 0.800...
  • Page 14 FB CURRENT vs. SWITCHING FREQUENCY 85Vac 115Vac 230Vac 265Vac IFB (uA) Figure 9. Switching Frequency as a Function of FB Current SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 15 , full load. Ch.1 = bulk input voltage, 100 V/div., Ch.2 = VGG, 10 V/div., Ch.3 = VDD, 10V/div., Ch.4 = DRV, 10V/div.) SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 16 = 1.1 A, Ch.2 = Drain of HV MOSFET, 100 V/div., Ch.3 = ZCD, 5 V/div., Ch. 4 = VDD, 10 V/div.) SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 17 Figure 15. Ripple on VGG and VDD During Green Mode Operation (Ch.3 = VGG, AC coupled, 2 V/div., Ch.4 = VDD, AC coupled, 200 mV/div.) SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 18 Figure 17. Output Voltage Ripple During Frequency Modulation Mode (Input voltage = 85 V , full load. Ch.2 = V , AC coupled, 20 mV/div.) SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 19 750-ms t . Ch.1 = I , Ch.3 = VDD, 10 V/div., Ch.4 = VGG, 10 V/div.) RETRY SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 20 (The EVM was tested with an open FB loop, no load. OVP threshold is equal to 15.44 V. Ch. 3 = V V/div., offset by 4 V.) SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 21 10000 Frequency (Hz) Gain Phase Figure 23. Bode Plot (Input voltage = 230 V , full load.) SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 22 EVM Assembly Drawing and Layout Figure 24 through Figure 26 show the design of the UCC28610EVM-474 printed circuit board. EXAS NSTRUMENTS Figure 24. Top Layer Component Placement SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright ©...
  • Page 23 Figure 25. Bottom Layer Routing Figure 28. Bottom Layer Component Placement. Figure 26. Bottom Layer Component Placement SLUU383B – November 2009 – Revised May 2011 UCC28610EVM-474 25-W Universal Off-Line Flyback Converter Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...

  • Page 24: List Of Materials

    List of Materials www.ti.com List of Materials Table 3. List of Materials for UCC28610EVM-474 COUNT REF DES DESCRIPTION PART NUMBER Capacitor, film, 0.33 µF, 275 VAC, X2, ±20%, 0.690 x C1, C6 ECQ-U2A334ML Panasonic 0.374 inch Capacitor, ceramic, 100 pF, 50 V, NP0, ±5%, 0603 Capacitor, ceramic, not populated, 50 V, NP0, ±5%,...
  • Page 25 References www.ti.com Table 3. List of Materials for UCC28610EVM-474 (continued) COUNT REF DES DESCRIPTION PART NUMBER Resistor, chip, 100 kΩ, 1/10 W, ±1%, 0603 Resistor, chip, 20.5 kΩ, 1/10 W, ±1%, 0603 Resistor, chip, 51.1 kΩ, 1/10 W, ±1%, 0603 Resistor, chip, 64.9 kΩ, 1/10 W, ±1%, 0603...
  • Page 26 Appendix A UCC28610EVM-474 Rev. A The following schematic, board layout, and list of materials apply to the UCC28610EVM-474 Rev. A version of the evaluation module. The Rev. A version of the EVM includes differential mode inductors L2 and L3. Subsequent revisions of the EVM replaced these inductors with a short circuit.
  • Page 27 UCC28610EVM-474 Rev. A www.ti.com Figure 28. Top Side View of UCC28610EVM-474 Rev. A EXAS NSTRUMENTS Figure 29. Top Layer Component Placement for UCC28610EVM-474 Rev. A SLUU383B – November 2009 – Revised May 2011 Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 28 UCC28610EVM-474 Rev. A www.ti.com Figure 30. Bottom Layer Routing of UCC28610EVM-474 Rev. A Figure 31. Bottom Layer Component Placement of UCC28610EVM-474 Rev. A SLUU383B – November 2009 – Revised May 2011 Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
  • Page 29 UCC28610EVM-474 Rev. A www.ti.com Table 4. Table 4. List of Materials for UCC28610EVM-474 Rev. A COUNT REF DES DESCRIPTION PART NUMBER Capacitor, film, 0.33 µF, 275VAC, X2, ±20%, 0.690 x C1, C6 ECQ-U2A334ML Panasonic 0.374 inch Capacitor, ceramic, 100 pF, 50 V, NP0, ±5%, 0603 Capacitor, ceramic, not populated, 50 V, NP0, ±5%, 0603...
  • Page 30 UCC28610EVM-474 Rev. A www.ti.com Table 4. Table 4. List of Materials for UCC28610EVM-474 Rev. A (continued) COUNT REF DES DESCRIPTION PART NUMBER Resistor, chip, 100 kΩ, 1/10 W, ±1%, 0603 Resistor, chip, 20.5 kΩ, 1/10 W, ±1%, 0603 Resistor, chip, 51.1 kΩ, 1/10 W, ±1%, 0603 Resistor, chip, 64.9 kΩ, 1/10 W, ±1%, 0603...
  • Page 31 EVALUATION BOARD/KIT IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards.

  • Page 32: Important Notice
