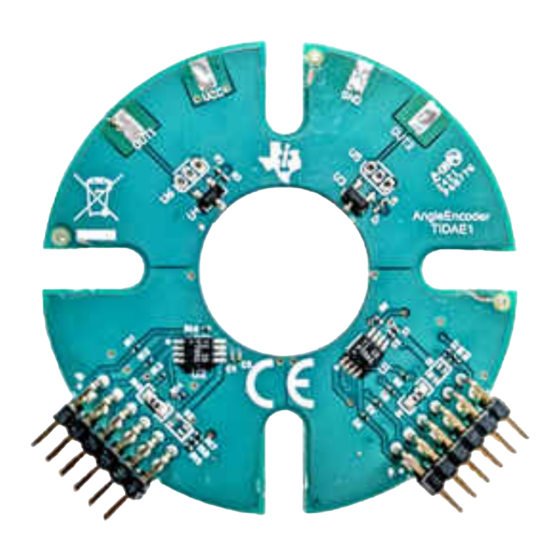

Absolute angle encoder reference design with halleffect sensors for precise motor position control

Advertisement

Quick Links

www.ti.com

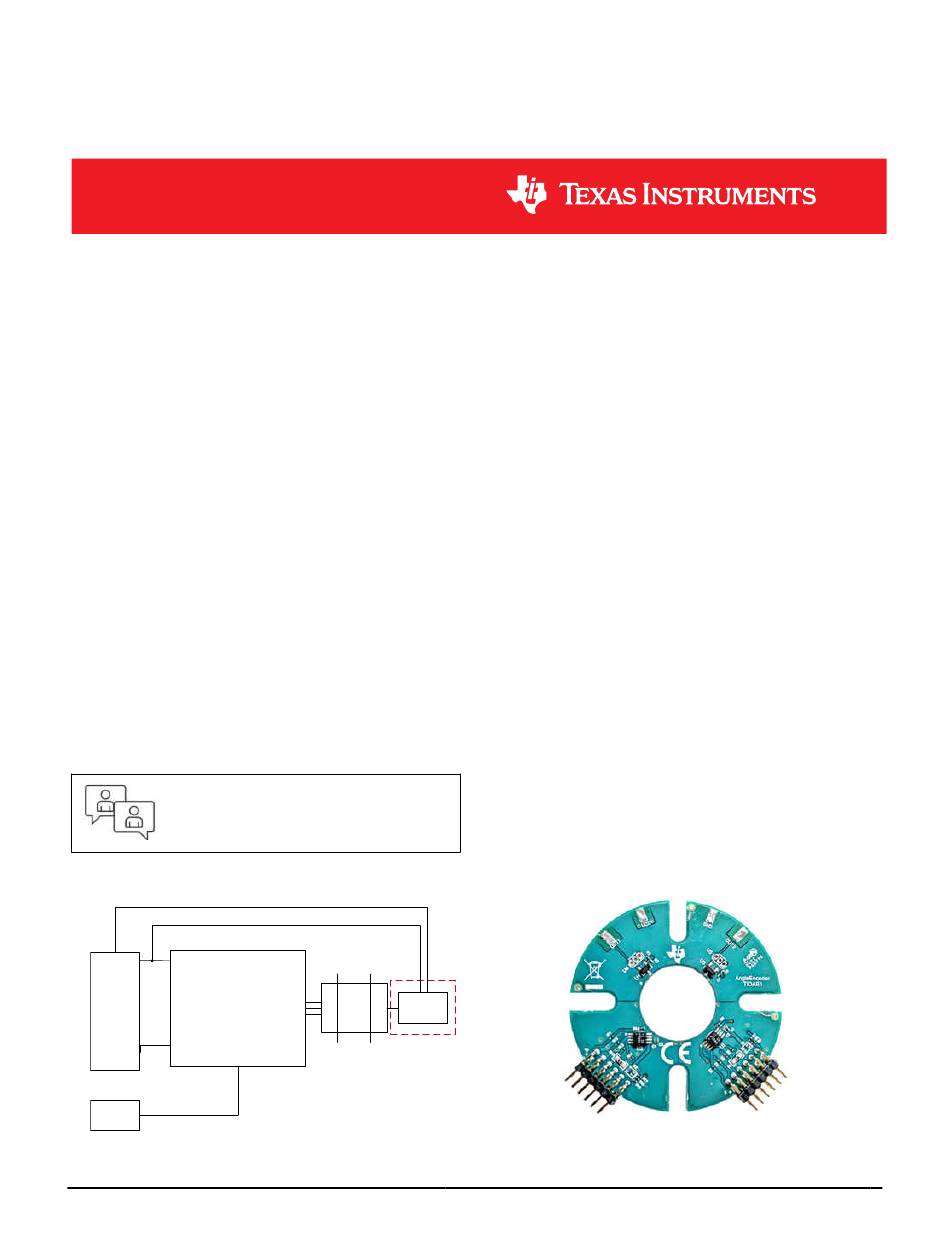

Design Guide: TIDA-060040
Absolute Angle Encoder Reference Design With Hall­
Effect Sensors for Precise Motor Position Control
Description
This reference design demonstrates a method for
absolute angle encoding typical in precision motor
control applications such as robotic arm control.
Angle encoding can be achieved using various
magnetic sensing technologies. This is done by
detecting two magnetic flux density, B-field, vector
components which are naturally 90° out of phase. As
the magnet spins, the sensor inputs are sinusoidal
which allows for calculations using trigonometric
properties. However, due to electrical and mechanical
characteristics of the system, it is often necessary
to correct the final result to achieve the greatest
accuracy. Typically in most precision motor control
applications, the final target error is less than
0.1°. This design explores the process for selecting
a magnet, determining placement, and correcting
for system-level imperfections to achieve a highly-
accurate angle measurement.
Resources
TIDA-060040
TMAG5170
DRV5055
Ask our TI E2E
3.3 V
SPI Bus
C2000
Motor Driver
LaunchPad™
Interface
Motor Supply
Voltage
TIDUC07 – MARCH 2022
Submit Document Feedback
Design Folder
Product Folder
Product Folder
support experts
Hall-Effect
Sensor
BLDC
TIDA-060040
Motor
Copyright © 2022 Texas Instruments Incorporated
Features
Measure angle in on-axis, in-plane, and off-axis
alignments for flexible alignment and sensor
placement
Calibration process for accuracy of 0.1°
Selectable digital SPI communication or analog
output
Design files with sensor placement guidance
Applications
Mobile robot motor control
Mobile robot sensing module
Robotic lawn mower
Robot servo drive
Servo drive position sensor
Position sensors
Self-balancing personal transporter
Absolute Angle Encoder Reference Design With Hall-Effect Sensors for
Description
Precise Motor Position Control
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TIDA-060040 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TIDA-060040
