Manrose PRO Series Installation Instructions

IMPORTANT
• Isolate the mains supply before making any electrical connections. This system should be
installed by a qualified electrician.
• When fitting through an external wall, an external grille must be fitted at all times.
• Fan should only be installed by fixed wiring, a flexible cord should not be used.
• The appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
• Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other open-fire appliances when mounted in outside windows or walls.

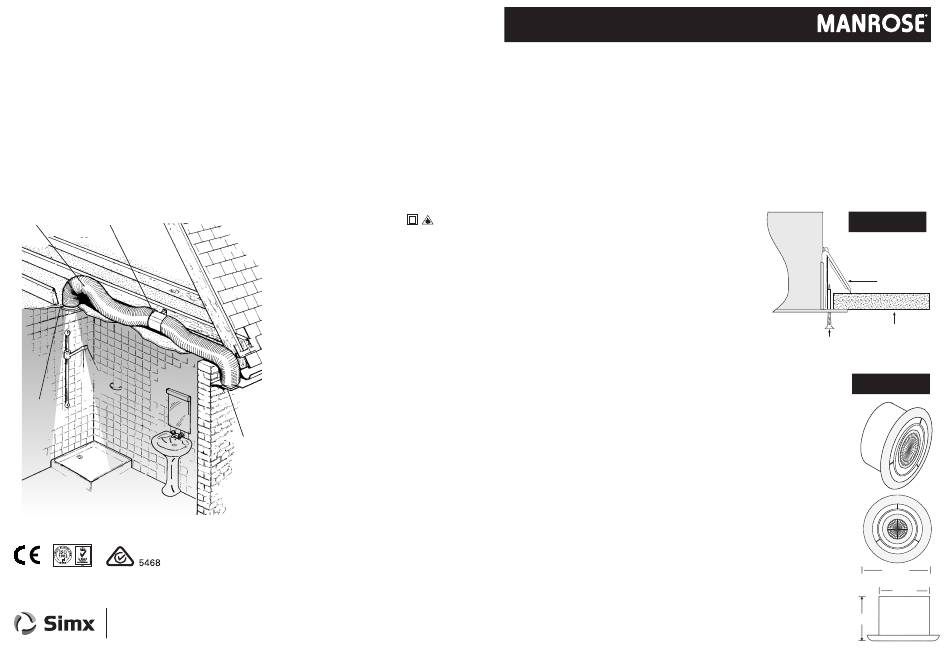

The Shower Fan
Flexible
ducting screwed to the joist
Internal
Extract-a-Lite
We reserve the right to change specification without prior warning
Manrose is proudly distributed by Simx Limited
PO Box 14 347, Panmure, Auckland, NZ. Technical Support (09) 259 1662
e: sales@simx.co.nz | www.simx.co.nz | www.manrose.com.au
Fan Specifications:
Electrical: 220-240V ~50Hz
Airflow: 39l/s (140m³/hr)
Wattage: 49W
Max Temp: 50°C
IP Rating: IPX4
External
Grille
PUB1099 iss03 10/13
INSTALLATION INSTRUCTIONS
MANROSE PRO SERIES 125mm EXTRACT-A-LITE
FAN RANGE

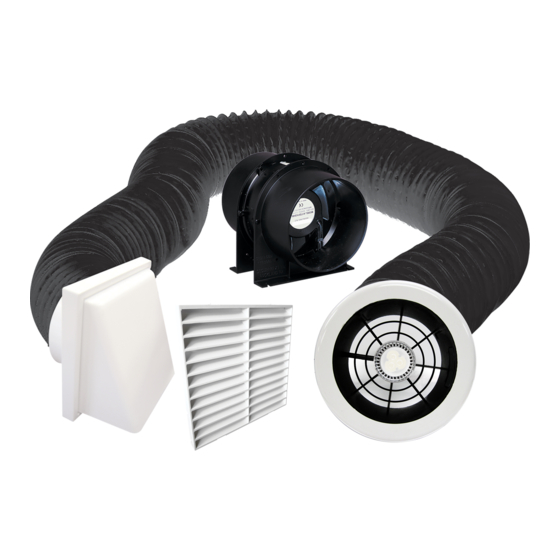

Thank you for selecting our Manrose Pro Series 125mm Extract-a-Lite Fan Kit.
Please read all instructions before commencing installation.
Please ensure the corrrect LED lamp and driver OR Halogen lamp and transformer are used for
replacements. The LED model MUST be replaced with an LED lamp and the Halogen model
MUST be replaced with a Halogen lamp. They are not interchangeable.
Light Specifications:
LED models: FAN5379- FAN5382
Driver Input: 220-240 VAC
Driver Output: 12VDC
0
Lamp MR16: 12V / 3W high power LED, 25 beam angle
Halogen models: FAN2029-FAN2032
Transformer Input: 220-240 VAC
Transformer Output: 12VAC
Lamp MR16: 12V / 50W Halogen, 60 0 beam angle
Installation Instructions
Important: The Halogen Extract-a-lite must not work independently of
the fan.
1. Cut a 140mm diameter hole in ceiling, (always ensure the hole is cut
between ceiling rafters and away from any wiring or plumbing). Fix the
Extract-a-lite chassis using the 4 screws provided. Use the fixing clips to
secure the fan in panel walls & ceilings.
2. For the LED models: Connect a suitable driver to the Extract-a-Lite and to a
suitable power supply, ideally to the switched live of the extractor fan installed.
Recommended driver: FAN5342. Replacement lamp: LHT0221.
For the Halogen models: Connect a suitable transformer to the
Extract-a-Lite and to a suitable power supply, ideally to the switched live
of the extractor fan installed. Recommended transformer: FAN2101.
Recommended lamp: FAN0431.
3. Place the white ceiling cover onto the Extract-a-lite chassis by positioning over the
3 lugs, and twisting clockwise.
4. Never connect mains direct to the lamp.
5. The transformer/driver must be suitable for 230V AC input. .
CAUTION: Disconnect the power supply, and be sure that the lamp has
fully cooled before removing or replacing.
P R O - S E R I E S
INSTALLATION
When screw is tightened fixing
clip fingers secure the fan
Fan Fixing clip
chassis
Ceiling board
Screw
DIMENSIONS
165mm
115mm
80mm
