1.
Introduction
1.1.
Features
•
SAM L22 Xplained Pro support
•
Smart Card read/write capability using serial-com from XPRO Expansion headers
•
ISO-7816 Smart card interface
•
EMV Level 1, Class B (3.3V operation)
1.2.

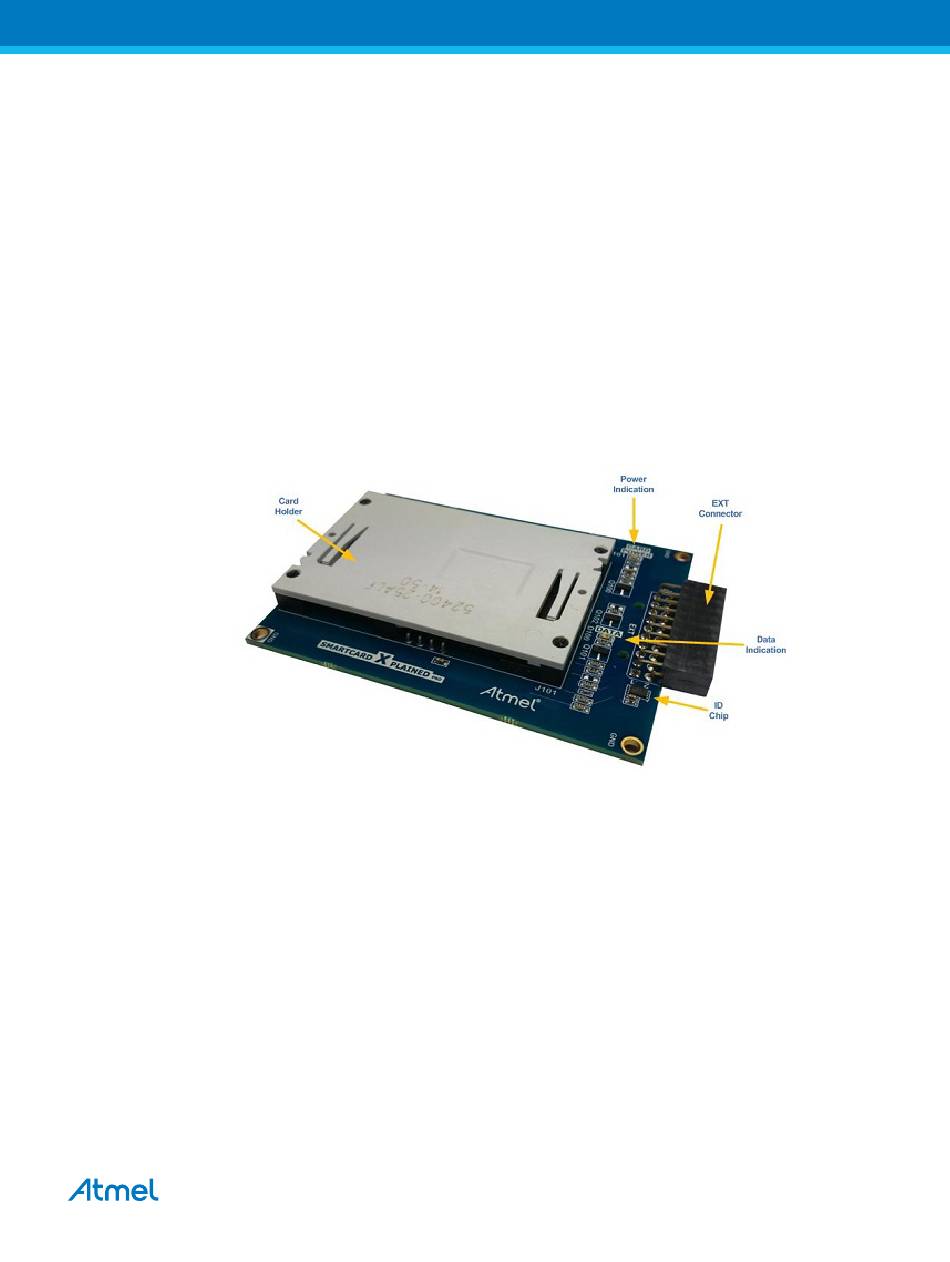

Kit Overview
The main purpose of this kit is to provide a complete demonstration of the smart card application. The
extension kit will be used along with the SAM L22 Xplained Pro kit using a ISO7816 module on the SAM
L22 chip. It has ID chip to store the board details to identify the extension board when seen from Atmel
Studio.
Atmel SMARTCARD XPRO [USER GUIDE]
Atmel-42560A-SMARTCARD-XPRO_User Guide-01/2016
3
