2.7 Nameplate

The pump nameplate provides the following information:

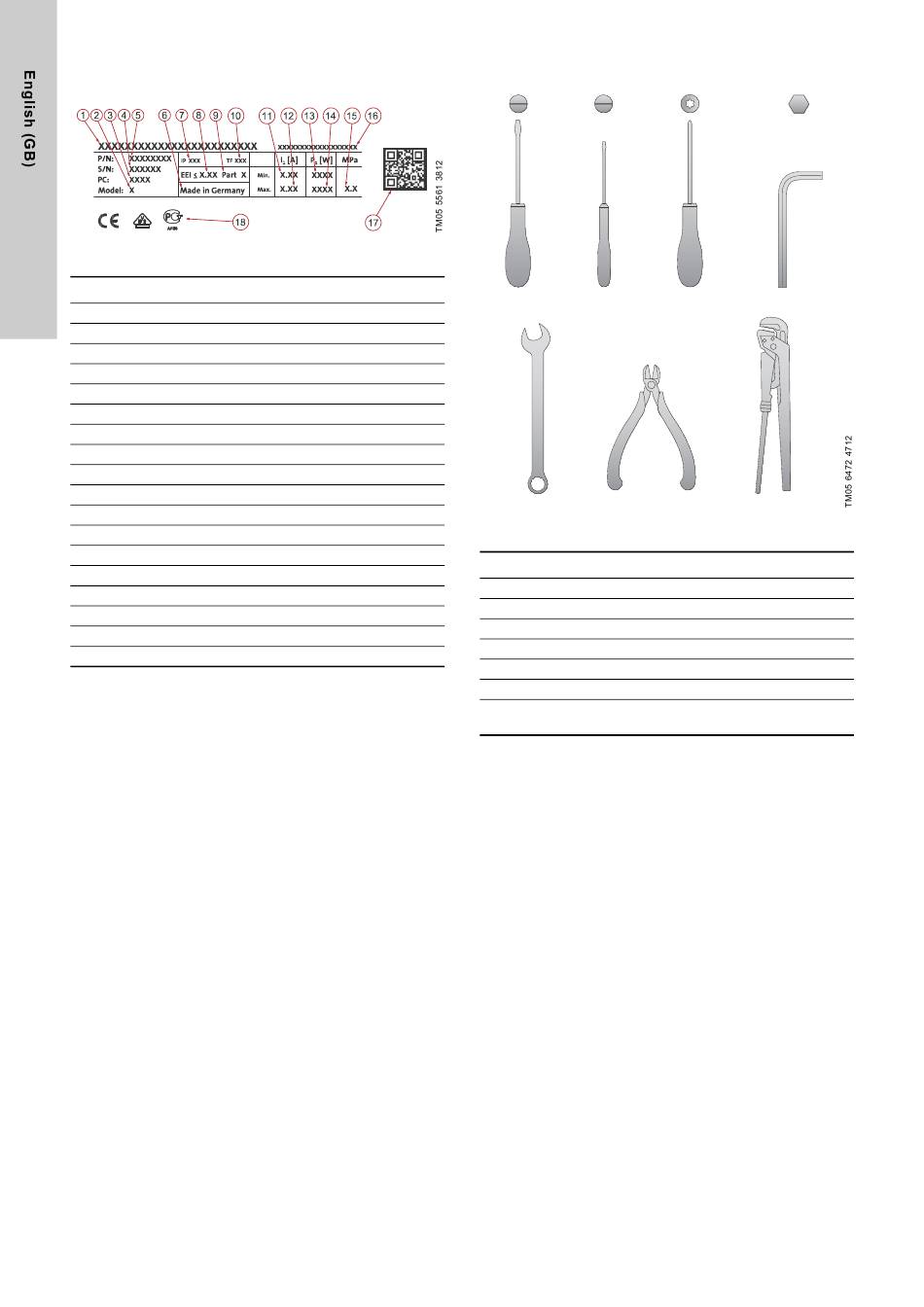

Fig. 6 Example of nameplate
Pos. Description
1 Product name
2 Model
3 Production code (year and week)
4 Serial number
5 Product number
6 Country of manufacture
7 Enclosure class
8 Energy Efficiency Index (EEI)
9 Part (according to EEI)
10 Temperature class
11 Minimum current [A]
12 Maximum current [A]
13 Minimum power [W]
14 Maximum power [W]
15 Maximum system pressure
16 Voltage [V] and frequency [Hz]
17 QR (Quick Response) code
18 CE mark and approvals
10

2.8 Tools

1.2 x 8.0 0.6 x 3.5
2
1
6
5
Fig. 7 Recommended tools
Pos. Tool
1 Screwdriver, straight slot 1.2 x 8.0 mm
2 Screwdriver, straight slot 0.6 x 3.5 mm
3 Screwdriver, torx bit
4 Hexagon key
5 Open-end spanner
6 Side cutter
7 Pipe wrench
TX20 5.0
3
4
7
Size
TX20
5.0 mm
Depending on DN size
Only used for pumps with
unions
