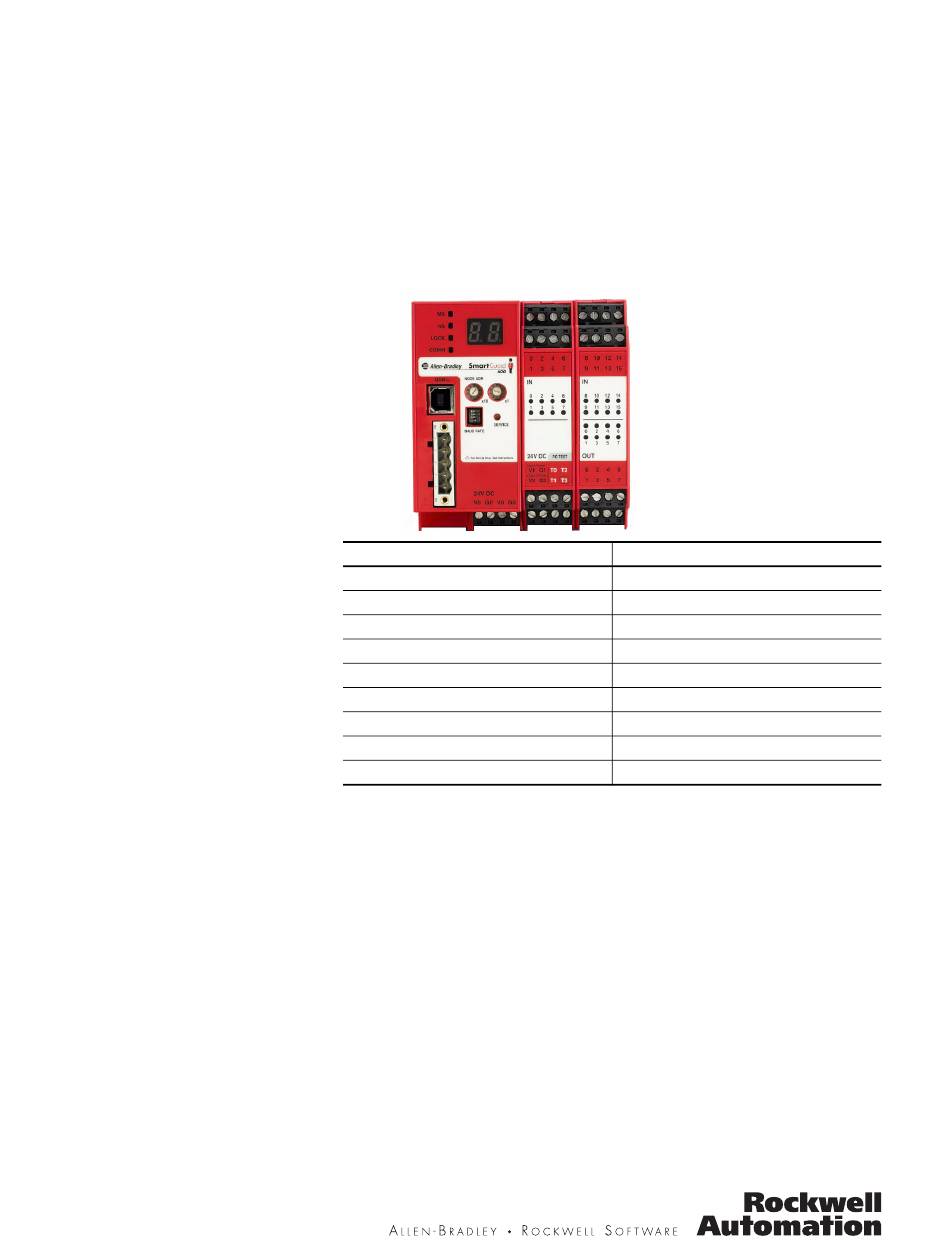

Single safety gate protection using packaged safety controller
Hide thumbs Also See for SmartGuard 600:

Advertisement

Quick Links

Introduction

Single Safety Gate Protection Using
SmartGuard 600 Packaged Safety Controller
Safety Network-enabled Example
Safety Rating: Category 4, according to EN954-1
Topic
This example shows how to wire, configure and program a
SmartGuard 600 safety controller to monitor a safety gate using two
safety limit switches.
Features and Benefits
• A single SmartGuard 600 safety controller monitors state of limit
switches.
• The safety system described in this example could be expanded
as needed, by adding additional safety input or outputs.
• This example provides easy integration into Logix or
GuardLogix controllers and HMIs through CIP Safety on
DeviceNet networks.
Safety Application Example
Page
1
2
3
3
4
5
7
7
8
