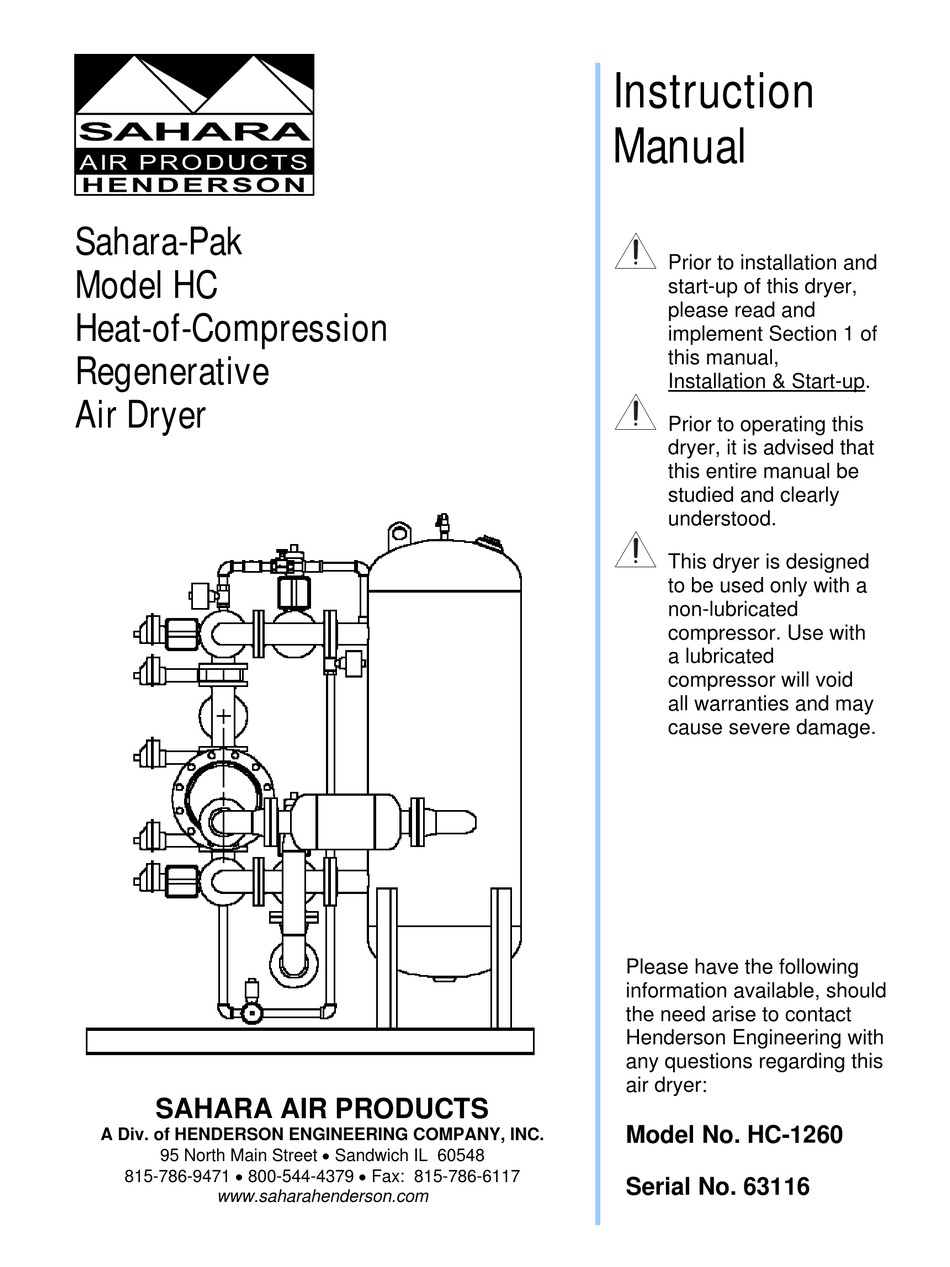

Sahara -Pak HC-1260 Instruction Manual

Heat-of-compression regenerative air dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Sahara-Pak
Model HC
Heat-of-Compression
Regenerative
Air Dryer
SAHARA AIR PRODUCTS
A Div. of HENDERSON ENGINEERING COMPANY, INC.
95 North Main Street  Sandwich IL 60548
815-786-9471  800-544-4379  Fax: 815-786-6117
www.saharahenderson.com
Instruction
Manual
Prior to installation and
start-up of this dryer,
please read and
implement Section 1 of
this manual,
Installation & Start-up.
Prior to operating this
dryer, it is advised that
this entire manual be
studied and clearly
understood.
This dryer is designed
to be used only with a
non-lubricated
compressor. Use with
a lubricated
compressor will void
all warranties and may
cause severe damage.
Please have the following
information available, should
the need arise to contact
Henderson Engineering with
any questions regarding this
air dryer:
Model No. HC-1260
Serial No. 63116

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sahara-Pak HC-1260 and is the answer not in the manual?

Questions and answers

Jim deckler
April 17, 2025

How to place HC-69 dryer in standby mode

0
1 comments:
Mr. Anderson
May 9, 2025

To place the Sahara Pak HC-1260 dryer in standby mode, the optional Dew Point Demand System (DPDS) must be installed. When DPDS is present, the STATUS screen will display "STANDBY" as part of the cycle. There are no specific steps provided for manually placing the dryer in standby mode.

This answer is automatically generated

0

Summary of Contents for Sahara Sahara-Pak HC-1260

  • Page 1 Henderson Engineering with any questions regarding this air dryer: SAHARA AIR PRODUCTS Model No. HC-1260 A Div. of HENDERSON ENGINEERING COMPANY, INC. 95 North Main Street  Sandwich IL 60548 815-786-9471  800-544-4379  Fax: 815-786-6117 Serial No.
  • Page 2 This instruction manual from Henderson Engineering Co., Inc. is an aid in getting to know the dryer better and in utilizing its possibilities for application in accordance with its intended use. Furthermore, INSTRUCTION MANUAL this manual contains important information for safe, proper, and economic operation. Model HC Please follow these important steps to get the most from your air dryer: Know these Symbols...

  • Page 3: Table Of Contents

    INSTRUCTION MANUAL Model HC TABLE OF CONTENTS SECTION 1: INSTALLATION & START-UP Installation 1.0.1 Dryer Location and Mounting Specifications 1.0.2 Preventative Maintenance Prior to Start-up 1.0.3 Afterfilter 1.0.4 Air Supply 1.0.5 Air Discharge Piping 1.0.6 Drain Piping 1.0.7 Cooling Water Start-up 1.1.1 Safety Precautions 1.1.2 Pressurizing Dryer...
  • Page 4 INSTRUCTION MANUAL Model HC TABLE OF CONTENTS (continued) Maintenance 2.1.1 Suggested Preventive Maintenance Schedule 2.1.2 Adjustments 2.1.3 Desiccant 2.1.4 Afterfilter 2.1.5 Filter Accessories SECTION 3: TROUBLESHOOTING & CUSTOMER SERVICE Troubleshooting 3.0.1 Short-Term Shut-Down 3.0.2 Shut-Down in Case of a Fault or for Maintenance Customer Service SECTION 4: WARRANTY Warranty...
  • Page 5 INSTRUCTION MANUAL Model HC Prior to installation and start-up of this dryer, please read and implement this section. SECTION 1 INSTALLATION & START-UP Reference 219 Rev 2 Page 5 of 46 06/20/2013...

  • Page 6: Dryer Location And Mounting Specifications

    1.0.1 Dryer Location and Mounting Specifications 1.0.1.1 The Sahara-Pak HC dryer is designed for indoor operation with ambient temperatures between 35F - 100F. The standard electrical components are designed specifically for NEMA 4 (refer to the Specifications in Section 5). Should it be desirable...
  • Page 7 INSTRUCTION MANUAL Model HC 1.0.1 Dryer Location and Mounting Specifications (continued) 1.0.1.3 Locate the dryer in the coolest possible location, providing adequate space around the dryer for servicing all components. An overhead clearance of not less than three feet above each tower is required for loading of the desiccant.

  • Page 8: Preventative Maintenance Prior To Start-Up

    INSTRUCTION MANUAL Model HC 1.0.1 Dryer Location and Mounting Specifications (continued) 1.0.1.12 For electrical connections, refer to the electrical drawing in Section 8. Be sure to look for any auxiliary connections, such as remote alarm contacts, compressor interlock relay (if needed), or analog (4-20mA) signals.
  • Page 9 INSTRUCTION MANUAL Model HC 1.0.2 Preventative Maintenance Prior to Start-up (continued) 1.0.2.2 TIGHTEN BOLTS IN SEQUENTIAL ORDER (i.e. 0 - 180, 90 - 270, 45 - 225, and 135 - 315) until final torque is reached. 1.0.2.3 Use ROTATIONAL TIGHTENING until all bolts are stable at final torque level.

  • Page 10: Afterfilter

    INSTRUCTION MANUAL Model HC 1.0.3 Afterfilter 1.0.3.1 Use of a prefilter is not necessary, or recommended, with a heat-of-compression Model HC dryer. It is extremely important, however, that a afterfilter be provided in the dryer installation. The afterfilter eliminates the possibility of desiccant dust carryover into the instrument air system.

  • Page 11: Air Supply

    INSTRUCTION MANUAL Model HC 1.0.4 Air Supply 1.0.4.1 The air supply should be between 250F - 400F, and 100 PSIG - 125 PSIG compressed air. 1.0.4.2 In piping the air to the dryer, use a pipe size equal to or larger than the dryer line size, keep the length of piping as short as possible, and insulate the piping.

  • Page 12: Drain Piping

    "back flushing" to maintain performance. 1.0.7.2 The standard Sahara-Pak HC dryer is designed to use approximately 3.77 GPM per 100 SCFM of 85F cooling water. The air exiting the intercooler should be 95F or less as indicated by the temperature screen on the panel view.

  • Page 13: Start-Up

    INSTRUCTION MANUAL Model HC Start-up Prior to start-up: It is recommended that the operational program of the dryer and the wiring schematic be studied before operating the dryer. Desiccant level must be checked. Wear protective goggles and mask when working with desiccant. Reference Section 2 for desiccant instructions and Section 7 for the MSDS.

  • Page 14: Pressurizing Dryer

    INSTRUCTION MANUAL Model HC 1.1.2 Pressurizing Dryer 1.1.2.1 Prior to pressurizing the dryer, verify the following:  Dryer ON/OFF switch is in the OFF position.  System outlet block valve is closed.  Cooling water is turned on to the aftercooler. 1.1.2.2 Slightly open the inlet isolation valve, slowly flowing compressed air to the system.

  • Page 15: Operation

    INSTRUCTION MANUAL Model HC 1.1.2 Pressurizing Dryer (continued) Protect the dryer from overloads. The dryer can become overloaded, if:  inlet flow is too high  temperature of the air at the discharge of the aftercooler is too high  minimum operating pressure is too low ...
  • Page 16 INSTRUCTION MANUAL Model HC Prior to operating this dryer, it is advised that this entire manual be studied and clearly understood. SECTION 2 OPERATION & MAINTENANCE Reference 219 Rev 2 Page 16 of 46 06/20/2013...

  • Page 17: General Information

    INSTRUCTION MANUAL Model HC SECTION 2: OPERATION & MAINTENANCE Operation Never make any changes to the dryer that are not specifically authorized by Henderson Engineering Co., Inc. Only use original spare and accessory parts. Carry out maintenance work only when the dryer is switched off, depressurized (even though gauges may read 0, there may still be air in the dryer), and disconnected from the electric power supply.

  • Page 18: Description

    2.0.2 Description The Sahara-Pak HC dryer is a complete system consisting of the following major components: 2.0.2.1 Drying Vessels (insulation optional)
  • Page 19 2.0.2.4 Water-Cooled Intercooler, Separator, Dual Drain Trap The standard cooler used in the Sahara-Pak HC dryer is constructed of a carbon steel shell, tube sheets, baffles, and copper tubes. Reference the Specifications in Section 5 for the cooling water requirement.
  • Page 20 2.0.2.4 Water-Cooled Intercooler, Separator, Dual Drain Trap (continued) The Sahara-Pak HC dryer has a truly unique dual automatic drain system to remove the water from the separator. As the liquid level from the separator rises, the primary free float drain opens, discharging the accumulated water.
  • Page 21 2.0.2 Description (continued) 2.0.2.6 Control Group The complete operation of the Sahara-Pak HC dryer is fully automatic and pre-programmed to shift drying vessels continuously before the design water load can be reached (breakthrough). With the dew point demand system, the dryer will not switch towers until the drying tower is fully saturated.

  • Page 22: Theory Of Operation

    Heating Hot air directly from the compressor enters the inlet of the Sahara-Pak HC and is directed by the inlet 2-way valves into the regenerating tower. This hot, thirsty air regenerates the bulk of the water from the desiccant. The air is then directed...
  • Page 23 During stripping, a small adjustable flow of dry air is used to remove the last little bit of moisture from the regenerating tower. This allows the Sahara-Pak HC dryer to provide exceptionally low dew points. If lower dew points are required, then an optional booster heater may be required.
  • Page 24 INSTRUCTION MANUAL Model HC 2.0.3 Theory of Operation (continued) 2.0.3.3 Cooling At the end of stripping, the regenerating tower is repressurized. The cooling cycle valve opens (V13) and cooling begins. During cooling, a portion of the dry outlet air is directed into the regenerating tower to reduce the temperature of the bed prior to tower shift.

  • Page 25: Pressure Vessel Regulations

    INSTRUCTION MANUAL Model HC 2.0.4 Pressure Vessel Regulations Never weld on, or alter, a pressure vessel in any way. The pressure vessels are designed according to the standard technical requirements. They fulfill the test of the certifying procedure and carry the “U”...
  • Page 26 INSTRUCTION MANUAL Model HC 2.1.1.1 EVERY 2000 HOURS OR 3 MONTHS (continued) 3. Test the drain trap assembly and drain the sump at the separator drain of sludge that may have accumulated by closing off the primary drain until the secondary valve actuates.
  • Page 27 INSTRUCTION MANUAL Model HC 2.1.1.3 EVERY 8000 HOURS OR 12 MONTHS (continued) 5. Rebuild the secondary drain valve by installing a valve repair kit (SD). 6. Disassemble and clean the primary drain (FT). 7. It is recommended that the aftercooler be back-flushed and thoroughly cleaned, both tubeside and shellside, at 8,000 hours;...
  • Page 28 INSTRUCTION MANUAL Model HC 2.1.2 Adjustments The inlet air temperature (as indicated on the Instrument Panel) should be adjusted to obtain the desired temperature/dew point performance (refer to Specifications in Section 5). This can be accomplished through manipulation of the inlet piping insulation and/or the compressor intercooling.
  • Page 29 INSTRUCTION MANUAL Model HC 2.1.3.1 Replacement / Disposal of Desiccant (continued) For first time fill-up  For first time fill-up, remove nuts, bolts, yokes, cover, and gasket from the manway at the top of the tower (ON LARGE TOWERS WITH MANWAYS). ...
  • Page 30 INSTRUCTION MANUAL Model HC 2.1.3.1 Replacement / Disposal of Desiccant (continued)  Remove plug from the desiccant fill (ON SMALL TOWERS WITH THREADED DESICCANT FILLS).  The tower can be blown clean with an air hose or may be washed out with a water hose, if desired, but time must be allowed if this is done to completely dry the tower before refilling it with desiccant.
  • Page 31 INSTRUCTION MANUAL Model HC 2.1.4 Afterfilter 2.1.4.1 General comments and use Afterfilter is suitable for filtering solids out of compressed air and other neutral, compressed gases. This new filtration concept is characterized by high flows at low differential pressure. 2.1.4.2 Function The soiled medium flows through the filter element from the outside to the inside.
  • Page 32 INSTRUCTION MANUAL Model HC 2.1.4.5 Changing of afterfilter elements (continued) The afterfilter elements are to be changed according to the following steps: A. AF-350 and below  Isolate the filter by closing the manual valves before and after the filter. ...
  • Page 33 INSTRUCTION MANUAL Model HC 2.1.4.5 Changing of afterfilter elements (continued) B. AF-550 and AF-1000  Isolate the filter by closing the manual valves before and after the filter.  Completely depressurize the filter.  Remove top plate cover.  Remove the wing nut from the filter top plate(s) and remove the plate(s).
  • Page 34 INSTRUCTION MANUAL Model HC 2.1.4.5 Changing of afterfilter elements (continued) C. AF-1400 and above  Isolate the filter by closing the manual valves before and after the filter.  Completely depressurize the filter.  Open the handhole; be sure to have hold of the manway cover so as not to lose it into the filter.
  • Page 35 INSTRUCTION MANUAL Model HC SECTION 3 TROUBLESHOOTING & CUSTOMER SERVICE Reference 219 Rev 2 Page 35 of 46 06/20/2013...
  • Page 36 INSTRUCTION MANUAL Model HC SECTION 3: TROUBLESHOOTING & CUSTOMER SERVICE Troubleshooting Following proper preventive maintenance procedures will go far toward assuring trouble-free dryer performance; however, failures will still occur. This section will help to identify the source of the problem and to effect a remedy. Problem Probable Cause Remedy...
  • Page 37 INSTRUCTION MANUAL Model HC Troubleshooting (continued) Problem Probable Cause Remedy Failure to Switch Towers No input power Check fuse Defective solenoid valves Check solenoid valves SV1; electrical connection, coil, and valve seat. Low pilot air caused by tubing Check pilot air line, pilot air filter, leakage and system pressure Two-way switching valve actuator...
  • Page 38 INSTRUCTION MANUAL Model HC 3.0.1 Short-Term Shut-down Attention! After the following step, dryer will remain pressurized! Advice: The following sequence is to be heeded when switching off the adsorption dryer:  First close all the shut off valves up and downstream of dryer.
  • Page 39 Model HC Customer Service If you have any questions regarding installation, start-up, training, maintenance, or service, please contact us at: Sahara Air Products A Div. of Henderson Engineering Co., Inc. 95 North Main Street Sandwich IL 60548 Phone: (815) 786-9471 or (800) 544-4379...
  • Page 40 INSTRUCTION MANUAL Model HC SECTION 4 WARRANTY Reference 219 Rev 2 Page 40 of 46 06/20/2013...
  • Page 41 WARRANTY Warranty Sahara Air Products, a division of Henderson Engineering Co., Inc., warrants that the equipment the company manufactures will be free of defects in material and workmanship for a period of 12 months from the date of placing the...
  • Page 42 INSTRUCTION MANUAL Model HC Warranty (continued) Correction by Henderson of nonconformities whether patent or latent, in the manner and for the period of time provided above, shall constitute fulfillment of all liabilities of Henderson for such nonconformities whether based on contract, warranty negligence, indemnity, strict liability, or otherwise with respect to or arising out of such equipment.
  • Page 43 INSTRUCTION MANUAL Model HC SECTION 5 SPECIFICATIONS, PARTS LIST, & DATA REPORTS Reference 219 Rev 2 Page 43 of 46 06/20/2013...
  • Page 44 Date 10/02/13 HENDERSON ENGINEERING COMPANY, INC. Sandwich, Illinois HEAT-OF-COMPRESSION REGENERATIVE AIR DRYER SPECIFICATION SHEET Model No.: HC-1260 M4 DIRUX Customer: AIRDYNE, INC. Serial No.: 63116 Customer P.O. No.: 1059379 Job Order No.: 3094 Customer Tag No.: Project Reference: DESIGN OPERATING CONDITIONS: Gas Composition: Inlet Flow Rate: 1300...
  • Page 45 HEAT-OF-COMPRESSION REGENERATIVE AIR DRYER SPECIFICATION SHEET (CONTINUED) UTILITIES: Elect. Construction NEMA Class: Input Conduit Type: Rigid Aluminum Heater Size: Average Power Consumption: KW Hrs. per 24 Hrs. Average Control Consumption: Watts @ Control Transformer: Included Not Required Steam PPH: PSIG Cooling Water: 49.6 GPM @...
  • Page 46 SAHARA AIR PRODUCTS A Division of HENDERSON ENGINEERING COMPANY, INC. 95 North Main Street  Sandwich IL 60548 815-786-9471  800-544-4379  Fax: 815-786-6117 www.saharahenderson.com Air Dryer Spare Parts List with Stock Recommendations Model No: HC-1260 Serial No: 63116 December 2013 The following is a complete spare parts list.
  • Page 47 Air Dryer Spare Parts List Model No.: HC-1260 Serial No.: 63116 Rec. Qty. Description Part No. Spare Qty. Muffler, ¼” NPT male (SM1-5) 490-215-000 Muffler, 2” MNPT, air dryer (M1,2) 490-819-000 Relay, DPDT, 110-120/1/50-60 (CR1,2) 560-040-880 Gasket, grafoil, 3”, 150#-600# ring, 1/16" 570-145-803 Gasket, grafoil, 3”, 150#, FF, 1/16”...
  • Page 48 63116 Airdyne, Inc., 14910 Henry Rd., Houston TX 77060 Alcon Labs, 9965 Buffalo Speedway, Houston TX 77054...
  • Page 49 63116 Airdyne, Inc., 14910 Henry Rd., Houston TX 77060 Alcon Labs, 9965 Buffalo Speedway, Houston TX 77054...
  • Page 51 63116 Airdyne, Inc., 14910 Henry Rd., Houston TX 77060 Alcon Labs, 9965 Buffalo Speedway, Houston TX 77054...
  • Page 52 63116 Airdyne, Inc., 14910 Henry Rd., Houston TX 77060 Alcon Labs, 9965 Buffalo Speedway, Houston TX 77054...
  • Page 53 63116 Airdyne, Inc., 14910 Henry Rd., Houston TX 77060 Alcon Labs, 9965 Buffalo Speedway, Houston TX 77054...
  • Page 54 63116 Airdyne, Inc., 14910 Henry Rd., Houston TX 77060 Alcon Labs, 9965 Buffalo Speedway, Houston TX 77054...
  • Page 55 INSTRUCTION MANUAL Model HC SECTION 6 AUXILIARY MANUALS (IF APPLICABLE) Reference 219 Rev 2 Page 44 of 46 06/20/2013...
  • Page 56 ALLEN-BRADLEY PANELVIEW COMPONENT C400 OPERATIONAL GUIDE For Use With SAHARA AIR PRODUCTS MODEL HC HEAT-OF-COMPRESSION REGENERATIVE AIR DRYER...
  • Page 57 C. Main D. Status E. Control F. Temperatures G. Settings H. Hourmeter I. Alarms J. Flow Schematics K. Program Steps Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 2 of 17 10/17/2013...
  • Page 58 It is recommended that the dryer instruction manual and the wiring schematic be studied before operating the dryer. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 3 of 17...
  • Page 59 Use the up or down arrow keys to select a screen name, then press the enter key. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 4 of 17...
  • Page 60 Use the up or down arrow keys to select a screen name, then press the enter key. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 5 of 17...
  • Page 61 Use the up or down arrow keys to select a screen name, then press the enter key. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 6 of 17...
  • Page 62 Use the up or down arrow keys to select a screen name, then press the enter key. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 7 of 17...
  • Page 63 2-90 minutes for heating, 91-180 minutes for stripping, and 181- 240 minutes for cooling. The log-in is always as follows: Username: 1 Password: (serial number of the dryer) Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 8 of 17 10/17/2013...
  • Page 64 This screen allows you to toggle between HC and HL mode. The mode will not change, until the current half cycle is finished. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 9 of 17...
  • Page 65 The Alarms banner, as shown above, will appear across the screen anytime a current alarm is in effect. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 10 of 17...
  • Page 66  High Dew Point  Dew Point Transmitter Above or Below Scale  Low Regen Temp  High Cooler Outlet  Fail-to-shift (optional) Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 11 of 17 10/17/2013...
  • Page 67 This screen shows the flow schematic of the LEFT TOWER HEATING. Gives a description of what is happening, as well as displaying what output is energized. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2...
  • Page 68 This screen shows the flow schematic of the LEFT TOWER REPRESSURIZING. Gives a description of what is happening, as well as displaying what output is energized. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 13 of 17...
  • Page 69 COOLING/STANDBY. Gives a description of what is happening, as well as displaying what output is energized. NOTE: There are corresponding screens for the opposite tower flow schematics as well. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 14 of 17 10/17/2013...
  • Page 70 If dew point is below the analyzer set-point and the Dew Point/Timer selector switch is on Dew Point then; Begin standby “Standby” Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 15 of 17 10/17/2013...
  • Page 71 If dew point is below the analyzer set-point and the Dew Point/Timer selector switch is on Dew Point then; Begin standby “Standby” Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2 Page 16 of 17 10/17/2013...
  • Page 72 4.) At any time during the cycle, if the compressor goes unloaded (CR1) then stop the timing cycle of the dryer until the compressor is loaded. Reference 230 – for use with Sahara Model HC Heat-of-Compression – no heater Rev 2...
  • Page 73 Instruction Manual SAHARA MOISTURE TRANSMITTER SAHARA AIR PRODUCTS A Div. of HENDERSON ENGINEERING COMPANY, INC. 95 North Main Street  Sandwich IL 60548 815-786-9471  800-544-4379  Fax: 815-786-6117 www.saharahenderson.com...
  • Page 74 INSTRUCTION MANUAL Sahara Moisture Transmitter SAHARA MOISTURE TRANSMITTER (SMT) INSTRUCTION MANUAL TABLE OF CONTENTS Introduction to the Sahara Moisture Transmitter ............3 Making Wiring Connections...................3 III. Operating the Transmitter .....................5 A. Powering Up ......................5 B. Error Handling......................5 IV. Specifications ........................6 Warranty........................8 VI.
  • Page 75 Sahara Moisture Transmitter Introduction to the Sahara Moisture Transmitter The Sahara Moisture Transmitter (SMT) is a low-cost, loop-powered transmitter that provides accurate dew/frost point measurements. The SMT is supplied with one 4 to 20 mA analog output that is factory-configured for a specified range.
  • Page 76 INSTRUCTION MANUAL Sahara Moisture Transmitter Making Wiring Connections You must wire the transmitter using the factory-supplied cable which is available in a variety of lengths. Note: If you need to lengthen cables, refer to Table 1 below to splice an extension onto the existing cable.
  • Page 77 INSTRUCTION MANUAL Sahara Moisture Transmitter Making Wiring Connections (continued) Table 1: Cable Lead Descriptions Lead Color* Connection Description Blue (+) 7 to 28 VDC Brown (-) 7 to 28 VDC Connect the shield to ground if desired. *The blue and brown leads also produce a current output equivalent to 4 to 20 mA.
  • Page 78 INSTRUCTION MANUAL Sahara Moisture Transmitter IV. Specifications Moisture Range  Curve B: -148 to 86F (-100 to 30C)  Curve A: -112° to 86°F (-80° to 30°C) Operating Temperature -40 to 140F (-40 to 60C) Storage Temperature 158F (70C) maximum. The probe should be stored with the plastic cover and desiccant packet threaded onto the probe.
  • Page 79 INSTRUCTION MANUAL Sahara Moisture Transmitter IV. Specifications (continued) Mechanical Sample Connection ¾-16 straight male thread with o-ring Operating Pressure 5 μm Hg to 5,000 psig (345 bar) Enclosure NEMA 4X/IP67 European Compliance Complies with the following:  EMC Directive 89/336/EEC and PED 97/23/EC for DN<25 ...
  • Page 80 INSTRUCTION MANUAL Sahara Moisture Transmitter IV. Specifications (continued) Moisture Sensor Sensor Type Thin-film aluminum oxide moisture sensor probe Calibration Each sensor is individually computer-calibrated against known moisture concentrations, traceable to NIST. Calibration Interval Sensor recalibration is recommended every 12 months depending on application.
  • Page 81 INSTRUCTION MANUAL Sahara Moisture Transmitter VI. Return Policy If returning an SMT for warranty service or annual recalibration, the user must contact Henderson Engineering Co. for instructions, which will include the issue of a Return Merchandise Authorization (RMA), and the user will issue a Purchase Order for the itemized service and/or parts.
  • Page 82 INSTRUCTION MANUAL Sahara Moisture Transmitter VII. Helpful Information (continued) 4. Often, it’s necessary to measure at a point that requires a sample stream purging to atmosphere. This measurement is fraught with difficulties. a. Equilibration is next to impossible. b. Diffusion of atmospheric water vapor is always present. Since the system is “open ended”...
  • Page 83 INSTRUCTION MANUAL Sahara Moisture Transmitter VII. Helpful Information (continued) B. Measuring Dew Points: Pressure vs. Atmospheric 1. The SMT will measure either pressure or atmospheric dew points. For many applications, measuring pressure dew point may be more meaningful. 2. To measure pressure dew points, connect the supply line to the inlet of the sample cell.
  • Page 84 INSTRUCTION MANUAL Sahara Moisture Transmitter VII. Helpful Information (continued) 4. The probe is very rapid, is insensitive to temperature and flow rate and measures the vapor pressure of water only. If the above effects are noted, then they are almost always the result of the system itself and not the sensor.
  • Page 85 INSTRUCTION MANUAL Sahara Moisture Transmitter VII. Helpful Information (continued) D. Contaminants 1. Industrial gases often contain fine particulate matter. Materials such as carbon particles, salts, rust particles, polymerized substances, chemical liquid droplets, dust, molecular sieve, or alumina dust can be present. Their effect on the operation of the sensor is described below.
  • Page 86 INSTRUCTION MANUAL Sahara Moisture Transmitter VII. Helpful Information (continued) b. Conductive Particulates (i.e. metallic, carbon, or conductive liquid droplets) i. Since the probe reading is inversely proportional to the impendance, a decrease in resistance will cause an increase in meter reading. Thus,...
  • Page 87 INSTRUCTION MANUAL Model HC SECTION 7 CUT SHEETS Reference 219 Rev 2 Page 45 of 46 06/20/2013...
  • Page 88 Material Safety Data Sheet ACTIVATED ALUMINA (Activated and Amorphous) Div. of HENDERSON ENGINEERING CO., INC. 95 North Main Street  Sandwich, Illinois 60548  815-786-9471  800-544-4379  Fax: 815-786-6117  www.saharahenderson.com Material Safety Data Sheet ACTIVATED ALUMINA (Activated and Amorphous) Chemical Product Product Name aSorb®, Activated Alumina (Activated and Amorphous)
  • Page 89 Material Safety Data Sheet ACTIVATED ALUMINA (Activated and Amorphous) First Aid Measures General advice Show this safety data sheet to the doctor in attendance. After eye contact Immediately flush eyes with plenty of water. After initial flushing, remove any contact lenses and continue flushing for at least 15 minutes.
  • Page 90 Material Safety Data Sheet ACTIVATED ALUMINA (Activated and Amorphous) Exposure Controls and Personal Protection Components with limit values that require monitoring at the workplace: 1344-28-1 Aluminum oxide (non fibrous) 1333-84-2 Aluminum oxide (non fibrous) ACGIH TLV 10 mg/m³ OSHA PEL 15 total, 5 respirable mg/m³...
  • Page 91 Material Safety Data Sheet ACTIVATED ALUMINA (Activated and Amorphous) 10 Stability and Reactivity Stability Stable under normal conditions. Hazardous polymerization does not occur. Conditions to avoid No decomposition if stored and applied as directed. Materials to avoid No information available. Hazardous decomposition products Not applicable.
  • Page 92 Material Safety Data Sheet ACTIVATED ALUMINA (Activated and Amorphous) 15 Regulatory Information U.S. Federal Regulations: TSCA Status All components of this product are listed on the TSCA inventory. For TSCA inventory reporting purposes, CAS No. 1344-28-1 was assigned for all forms of aluminum oxide instead of the CAS No. 1333-84-2 as indicated in Item 2.
  • Page 93 Material Safety Data Sheet ACTIVATED ALUMINA (Activated and Amorphous) 16 Other Information (continued) Legend ACGIH American Conference of Governmental Industrial Hygienists AICS Australian Inventory of Chemical Substances CAS Chemical Abstract Services CERCLA Comprehensive Environmental Response, Compensation, and Liability Act CFR Code of Federal Regulations CPR Cardio-pulmonary Resuscitation DOT Department of Transportation DSL Domestic Substances List (Canada)
  • Page 94 Material Safety Data Sheet ACTIVATED ALUMINA (Activated and Amorphous) ACTIVATED ALUMINA CAUTION Hazards: Can cause mild irritation of eyes, skin, and upper respiratory tract. Precautions: Avoid inhalation of dust. Use with adequate ventilation. Use appropriate personal protective equipment (safety glasses/gloves) to avoid contact. Use appropriate respiratory protection if concentrations exceed the permissible limits.
  • Page 95 SAHARA AIR PRODUCTS ROBO DRAIN www.saharahenderson.com P/N 120-600-100 P/N 120-600-102 Stainless Steel MATERIALS MATERIALS Reservoir: Aluminum and Composite Reservoir: Aluminum and Composite Valve: Stainless Steel Valve: Bronze w/SS Ball and Stem Float: Stainless Steel Float: Stainless Steel Seat: Stainless Steel...
  • Page 96 DESIGN OPERATION The Robo Drain is the ultimate demand operated Condensation enters through one of two ports. The drain. The unit is fully automatic, no electricity is see-through vessel allows visual inspection of the required. Its low profile gives you the advantage of condensation as it rises.

  • Page 97: Installation Instructions

    INSTALLATION INSTRUCTIONS CAUTION: COMPRESSED AIR CAN BE DANGEROUS The Robo Drain is designed for trouble-free and cannot be higher than the bottom of the vessel that maintenance-free draining of unwanted accumula- is being drained. It is best to run the drain in a tions of condensation and other foreign matter from downward pitch from the bottom of the vessel be- any collection point in a compressed air system...
  • Page 98 INSTALLATION DIAGRAMS IN GENERAL In order for the condensate to properly enter the Robo Drain reservoir, the condensate line to the Robo Drain must al- ways be installed below the bottom of the vessel to be drained. It is equally important to provide a means for the air that is contained in the reservoir to escape (vent) as the condensate enters the reservoir.
  • Page 99 SAHARA AIR PRODUCTS MINIATURE INLINE FILTER for Dewpoint Demand System www.saharahenderson.com Filter Element P/N 230-041-440 OPERATION MATERIALS System fluid passes from the upstream housing Body Parts: 316 stainless steel area through the filtration element. The 7 micron Retainer Screens: 316 stainless steel...
  • Page 100 FILTER ELEMENT SPECIFICATION DATA SHEET Henderson Engineering Part No.: 240-494-000 Description: 812-1B Filter Element Media: Cellulose 99.99% @ 1 m Filtration Rating: Center Tube and Body Material: Electro-tin Plated Steel End Caps: Molded Plastisol Foam Initial Differential Pressure: Application Dependent Maximum Temperature: 250F End Cap I.D.:...
  • Page 101 FILTER ELEMENT SPECIFICATION DATA SHEET Henderson Engineering Part No.: 240-751-000 Description: 16D33 Filter Element Uniform ™ media composed of borosilicate glass Media: microfibers secured in a fixed pore construction with an acrylic binder End Caps: Cast Aluminum Seal: Buna Other Components: Proprietary high temperature epoxy adhesive Configuration: Single Open End with positive sealing mechanism...
  • Page 102 SAHARA AIR PRODUCTS PRESSURE & PURGE GAUGES www.saharahenderson.com FEATURES Accuracy: ASME Grade B- ±3/2/3% Case Material: Black finish steel (±2% of range across middle half of scale) Pointer Material: Black finish aluminum Dial Standard: Dual scale PSI and kPa Window Material: Plastic/Acrylic...
  • Page 103 SAHARA AIR PRODUCTS SOLENOID MUFFLER www.saharahenderson.com FEATURES • Reduces noise levels • Prevents open line exhaust dangers • Corrosion resistant • Brass mesh screen and aluminum construction provide improved flow, longer life, and cleanable element • High flow capacity with low back pressure •...
  • Page 104 SAHARA AIR PRODUCTS MUFFLER www.saharahenderson.com SINGLE CHAMBER Constructed entirely of corrosion resistant aluminum. FOUR CHAMBER Constructed entirely of corrosion resistant aluminum. SPECIFICATIONS & DIMENSIONS Diameter Length Flow SCFM Weight MNPT (in.) (in.) (in.) (in.) (in.) @ 90 PSI (lbs.) SINGLE CHAMBER 490-519-000 ¾”...
  • Page 105 SAHARA AIR PRODUCTS GENERAL PURPOSE RELAY www.saharahenderson.com Side View Bottom View FEATURES DIMENSIONS (mm)  Non-polarized LED indicator  No internal wires, lead-free construction  Cadmium-free contacts  Mechanical flag indicator  Manual latching lever with color coding for AC or DC coil ...
  • Page 106 SAHARA AIR PRODUCTS PRESSURE SWITCH www.saharahenderson.com FEATURES • Open frame (skeleton) construction • Set point repeatability is ±1% of adjustable • Compact size range • Electrical rating is 15A 125/250/480 VAC • One SPDT output • Hex adjustment (no reference dial) resistive •...
  • Page 107 SAHARA AIR PRODUCTS TEMPERATURE TRANSMITTER 32-662°F www.saharahenderson.com P/N 701-106-200 FEATURES   Variety of sensors can be used High accuracy in total ambient temperature  range Upscale burnout ≥ 21.0 mA   Fault signal on sensor break or short circuit Universally PC programmable for various ...
  • Page 108 SAHARA AIR PRODUCTS BALL VALVE Bronze with Lever www.saharahenderson.com FEATURES • 316 SS ball and stem • RPTFE seats and stuffing box ring • Blow-out-proof stem design • Adjustable packing gland MATERIALS 1. Lever and Grip: Steel, zinc plated w/vinyl 2.
  • Page 109 MAINTENANCE Normal stem packing wear can be compensated for by tightening the packing gland screw clockwise. If all of the adjustment to the packing gland screw has been made, remove the lever and packing gland nut and add one or two replacement bearings on top of the old packing.
  • Page 110 SAHARA AIR PRODUCTS BALL VALVE Brass with Actuator www.saharahenderson.com FEATURES • Direct mount • 2-way • Female/female, with ISO 5211 pad for actuator • Pressure rating 600 WOG – 150 WSP • Temperature to 366°F • Blow out proof stem, chrome plated brass ball •...
  • Page 111 VALVE SPECIFICATIONS Size Square ØC Ød ØG ØH ØP In-Lbs 1.42 ¼” 1.49 1.28 0.35 0.24 0.35 0.08 0.98 1.32 0.39 2.64 1.06 0.22 0.39 0.82 53.10 (ISO F03) 1.42 ½” 1.49 1.28 0.35 0.24 0.35 0.08 0.98 1.32 0.53 2.64 1.06 0.22...
  • Page 112 ACTUATOR NOMINAL VALUES FEATURES • Die cast aluminum end caps; standard polyester Pressure rating max 115 PSI • powder coated -4°F - +185°F standard temperature range • Concentring spring sets with long securing screws Pre-lubricated for life of actuator on assembly to allow safe dismantling for maintenance Stainless steel assembling screw Pinion made in steel;...
  • Page 113 ACTUATOR COMPONENTS Item No. Description Body Anti-blowout pinion Lower pinion o-ring Pinion spacer ring Top pinion o-ring Cam spacer ring Position indicator Pinion washer 10 * Pinion snap ring Piston 12 * Piston o-ring Antifriction ring Piston thrust block Stop bolt retaining nut Stop bolt 17 ** External spring...
  • Page 114 SAHARA AIR PRODUCTS BUTTERFLY VALVE with Pneumatic Actuator www.saharahenderson.com PART NUMBERS Complete Valve Actuator Valve Weight Size Valve Assy. Repair Kit Repair Kit (Lbs.) DOUBLE ACTING ACTUATOR 150# Wafer 3” 730-729-965 730-729-910 730-729-911 4” 730-749-965 730-749-910 730-729-911 6” 730-759-966 730-759-910 730-729-913 8”...
  • Page 115 VALVE SPECIFICATIONS Size ANSI 150 3” (80 mm) 5.25 1.88 2.86 4.09 6.63 4.36 0.63 0.43 1.25 2.50 0.77 4” 100 mm) 6.75 2.03 3.72 4.71 7.50 4.36 0.63 0.43 1.25 2.50 0.75 6” (150 mm) 8.62 2.23 5.88 5.57 8.00 5.12 0.75...
  • Page 116 VALVE MAINTENANCE 1. Reasonable precautions should be taken before beginning work on the valve. Protective clothing, as required, should be worn. 2. WARNING: Before removing actuator from the valve, or before removing seat retainer from a valve in dead end service, close the valve and depressurize the line. The eccentric design of the valve may allow line pressure to open the valve if the actuator is not in place while the valve is under pressure.
  • Page 117 VALVE SEAT REPLACEMENT Refer to the component drawing on page 2 of this cut sheet for parts identification. With the disc in the closed position, remove the valve from the line. 1. Lay the valve down with the disc in the closed position and the seat retainer side facing up. 2.
  • Page 118 PNEUMATIC ACTUATOR FEATURES STANDARD MATERIALS  Body: Extruded aluminum alloy, Rack and pinion, opposed-piston  anodized Maximum pressure of 140 psig (10 bar)  End caps: Die cast aluminum alloy with cor- Temperature ranges of -40°F (-40°C) to +200°F rosion resistant polyester coating (+95°C) ...
  • Page 119 PNEUMATIC ACTUATOR Spring Return unit shown above. *Spring Cartridges not included in Double Acting. COMPONENTS Item No. Qty. Description Body Piston Pinion End cap 12 max. Spring cartridge assemly Upper bearing * Lower bearing * Retaining ring * Nylon washer * Acetal bearing pad * Acetal guide ring Stop nut...
  • Page 120 SAHARA AIR PRODUCTS BUTTERFLY VALVE with Lever www.saharahenderson.com PART NUMBERS Valve Valve Weight Size Valve P/N Repair Kit (Lbs.) 150# Wafer 3” 730-729-980 730-729-910 4” 730-749-980 730-749-910 6” 730-759-980 730-759-910 8” 730-769-980 730-769-910 300# Wafer 3” 730-829-980 730-829-910 4” 730-849-980...
  • Page 121 VALVE SPECIFICATIONS Size ANSI 150 3” (80 mm) 5.25 1.88 2.86 4.09 6.63 4.36 0.63 0.43 1.25 2.50 0.77 4” 100 mm) 6.75 2.03 3.72 4.71 7.50 4.36 0.63 0.43 1.25 2.50 0.75 6” (150 mm) 8.62 2.23 5.88 5.57 8.00 5.12 0.75...
  • Page 122 VALVE MAINTENANCE 1. Reasonable precautions should be taken before beginning work on the valve. Protective clothing, as required, should be worn. 2. WARNING: Before removing handle from the valve, or before removing seat retainer from a valve in dead end service, close the valve and depressurize the line. The eccentric design of the valve may allow line pressure to open the valve if the handle is not in place while the valve is under pressure.
  • Page 123 VALVE SEAT REPLACEMENT Refer to the component drawing on page 2 of this cut sheet for parts identification. With the disc in the closed position, remove the valve from the line. 1. Lay the valve down with the disc in the closed position and the seat retainer side facing up. 2.
  • Page 124 SAHARA AIR PRODUCTS BALL CONE CHECK VALVE www.saharahenderson.com BRONZE STAINLESS STEEL PERFORMANCE RATING  Max Pressure: 400 psi / 125 psi Steam  Max Temp: 350°F (176.6°C) FEATURES  ½ psi opening pressure  FNPT inlet  Tight shut-off with liquid media ...
  • Page 125 BALL CONE CHECK VALVE BRONZE STAINLESS STEEL SPECIFICATIONS Flow Rate (Cv) Weight PART NUMBER SIZE GPM* (Lb.) BRONZE 740-042-020 ¼” 2.06 1.12 1.12 ⅜” 740-062-020 2.12 1.12 1.12 1.21 740-082-020 ½” 2.31 1.12 1.12 740-102-020 ¾” 2.87 1.37 1.50 3.53 740-122-020 1”...

  • Page 126: Technical Data

    SAHARA AIR PRODUCTS 4-WAY INDIVIDUAL INLINE SOLENOID VALVE www.saharahenderson.com FEATURES VOLTAGE PART NO. SINGLE COIL  Balanced spool, immune to variations of pressure.  Short stroke with high flow. 120V/60Hz 823-115-600  Large spool area provides maximum shifting forces. 24 VDC (2.5 W) 823-190-600 ...
  • Page 127 SAHARA AIR PRODUCTS Bronze Pressure Relief Valve www.saharahenderson.com FEATURES  ASME Code (UV) National Board Certified  Top outlet  Full nozzle design  Stainless steel spring SPECIFICATIONS Inlet Approx. Wt. Set Pressure Flow Rate Trim (inches / mm) (inches / mm)
  • Page 128 INSTRUCTION MANUAL Model HC SECTION 8 DRAWINGS Reference 219 Rev 2 Page 46 of 46 06/20/2013...
  • Page 135 · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·...
