1

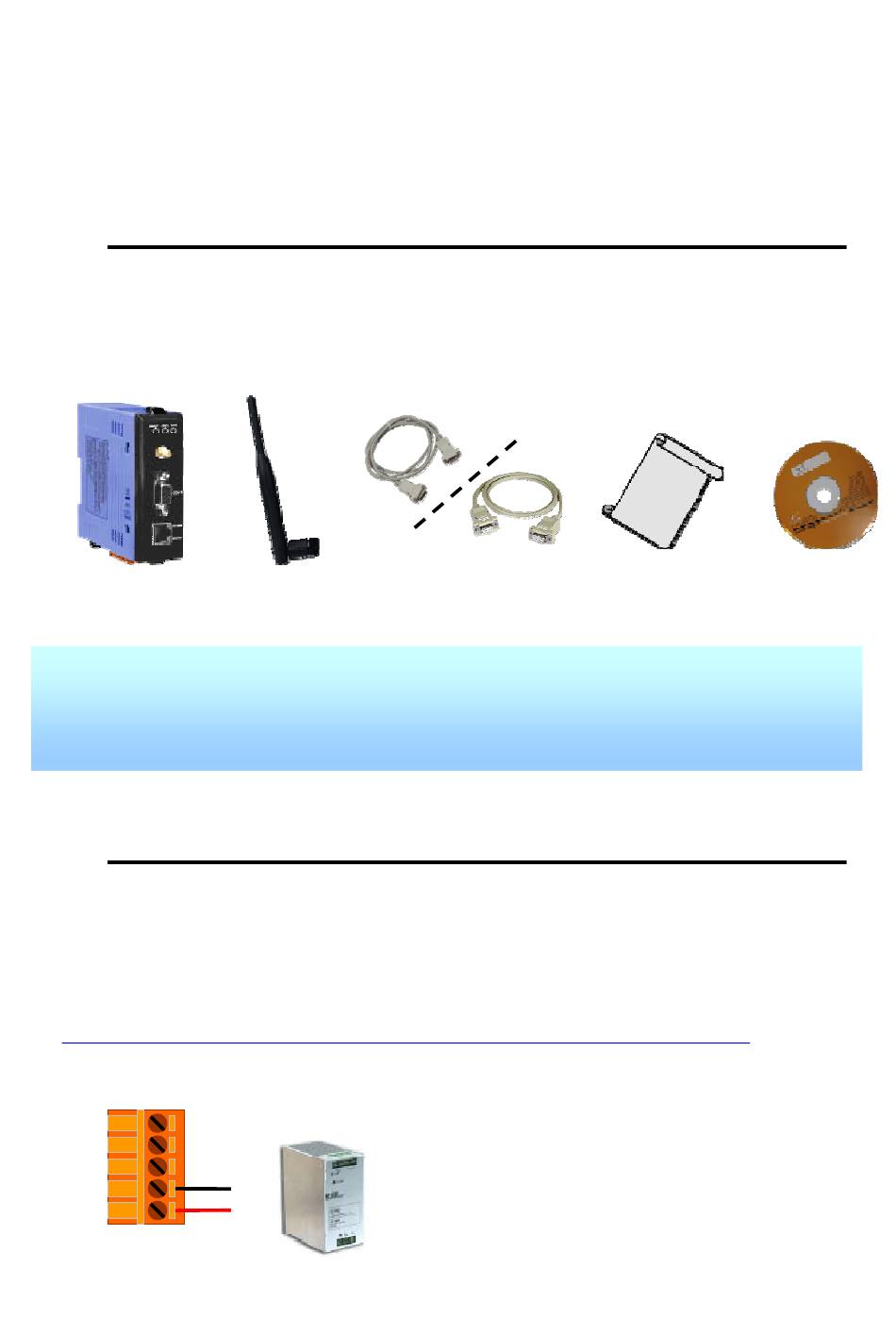

What's in the shipping package?
The package includes the following items:
ZT‐257x Device
If any of these items are missing or damaged, please contact the local distributor
for more information. Save the shipping materials and cartons in case you want to
ship the module in the future.
2
Preparations for devices
Install ZT Configuration Utility (v1.0.0 or later)：
1.
CD: \Napdos\ZigBee\ZT_Series\Utility
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/utility
Power Supply：+10 ~ +30V
2.
ICP DAS, ZT‐2570/ZT‐2571 Quick Start, Version 1.2
ZT‐2570/ZT‐2571
ANT‐124‐05
GND
+Vs
CA‐0915 (ZT‐2570) /
CA‐0910N (ZT‐2571)
DC
Quick Start
Release Note
Page 1
CD
Advertisement
Related Manuals for ICP DAS USA ZT-2570
Summary of Contents for ICP DAS USA ZT-2570
- Page 1 ZT‐2570/ZT‐2571 Quick Start What’s in the shipping package? The package includes the following items: CA‐0915 (ZT‐2570) / ZT‐257x Device ANT‐124‐05 Release Note CD CA‐0910N (ZT‐2571) If any of these items are missing or damaged, please contact the local distributor for more information. Save the shipping materials and cartons in case you want to ship the module in the future.
- Page 2 Introduction of configurations Overview of the ZT-257x Configurations Options/Parameters “Pan ID” is the group identity of a ZigBee network, and must be the same if they are in the same ZigBee network. (Valid values range from 0x0000 to 0x3FFF) “Node ID” is the identity of the ZigBee module. The identity number must be unique if it is in the same ZigBee network as other ZigBee module.
- Page 3 RFU-2400/ZigBee WiFi CH 0 (2405) CH1 (2410) CH 1 (2412) CH 2 (2415) CH 2 (2417) CH3 (2420) CH 3 (2422) CH 4 (2425) CH 4 (2427) CH 5 (2430) CH 5 (2432) CH6 (2435) CH 6 (2437) CH 7 (2440) CH 7 (2442) CH 8...
- Page 4 Communication Speed (Broadcasting Frame Sending Interval): The packet payload of ZT-2000 series devices is 79 bytes. Data above 79 bytes will be transmitted in several packets. This parameter decides the broadcasting frame sending interval time to avoid the network overloading. User only fills in the number of ZT-2000 slaves nearby the ZigBee Coordinator.
- Page 5 “RF Power” denotes the wireless transmit power value. Code Note 0x0F Typical Maximum 0x08 Fit the CE/FCC certification 0x00 Typical Minimum ※ The parameter adjustment purely personal behavior, ICP DAS can not guarantee to pass CE/FCC certification if adjusting this parameter, nor assume any liability because of the adjustment parameters derived from the RF Power.
- Page 6 The mode always bypasses data to remote side via broadcasting. If there is no particular purpose, user only keeps this application mode. Module Frame Type Note ZT-2570 Broadcast Data will be sent to all ZigBee slaves ZT-2571 Unicast Data will only be sent to the coordinator [Eg1] When ZT-2550 ZigBee Host sends “DATA_01”...
- Page 7 ZigBee slaves from host but also transmit data between ZigBee slaves. A 5-byte ASCII code should be added as an index before the data. Module Frame Type Note ZT-2570 Data will be sent to a specific ZigBee slave. Unicast ZT-2571 Format: “:AAAA” + Data [Eg1] When ZT-2550 ZigBee Host sends “:0001DATA_01”...
- Page 8 ZigBee network [Eg3] When ZT-2571 transmits the acknowledgement “MRTU_ACK_03”, →ZT-2570 will response the acknowledgement “MRTU_ACK_03” directly to serial port. →ZT-2570 will convert protocol then output “MTCP_CMD_01” to Ethernet. Unicast type frame, data will only be sent to the ZigBee host ※...
- Page 9 Connecting the Power and Host PC 1. Confirm that the DIP switch is set to the “ZBSET” position. ZBSET/ZBRUN/ZBINIT 2. Connect RS-232, RS-485 or Ethernet interface to configure the ZT-257x. RS-232： ZT‐2570： CA‐0915 ZT‐2571： Windows Based PC CA‐0910N RS-485： F.G. D‐ D+ ...
- Page 10 Configure the ZigBee Settings 5.1 Configure ZigBee via Utility (Serial/Ethernet) 1. Launch the software “ZT Configuration Utility” and select the [ZT Series] 2. Single click either the “Serial Port or Ethernet” icon with the correct number of “COM Port or IP Address” that is used to select the communication interface.
- Page 11 3. After selecting the COM Port number, a list of model numbers will be displayed. Select the name of the module that you want to configure. After clicking the button, the utility will begin checking the connection. 4. Once a connection is established, select either the [Default] or the [Wizard] function from the settings mode page.
- Page 12 6. Once the module configuration has been completed, the message “The Configuration was successful” will be displayed. Return the DIP switch to the “ZBRUN” position and reboot the ZT-255x device. Page 12 ICP DAS, ZT‐2570/ZT‐2571 Quick Start, Version 1.2...
- Page 13 5.2 Configure ZigBee via Browser (Ethernet) Web Server technology enables configuration of the ZT-257x via a standard web browser interface, e.g. Internet Explorer, FireFox or Mozilla, etc. This means that it is easy to check the configuration of the ZT-257x via an Ethernet network without needing to install any other software tools, thereby reducing the userʼs learning curve.
- Page 14 b. After selecting the ZT-257x device, please click “IP setting” then it will show a windows form to do configuration. c. Please configure the new IP setting which is the same segment to the LAN of desktop. Please also click the “Set” button to complete the configurations.
- Page 15 3. If they are in the same network environment, user can use a browser to set the configurations of ZT-257x. The site of ZT-257x device： http://○○○.○○○.○○○.○○○/index.htm 4. When the browser access correctly, the web page will show all the configuration settings as below. User may enter the new setting value to the correct filed if there are any requirements.
- Page 16 5. If the new configuration is completed, please click “Update New Config” button to start the ZT-257x configuration. 6. When the configuration completed and successful, it will show … “ ” The system is updated with new configurations! “ ” Please reload the web page to see whether the configuration is correct or not then user may follow this instructions.
-
Page 17: Test Communications
Test Communications When all the configuration set-up completed, please turn the DIP switch to “ZBRUN” position and reboot module. ZBSET/ZBRUN/ZBINIT Next, please confirm the “ZB Net” LED indicator of ZigBee salves whether is steady lighted or not. If the status of green LED indicator is steady lighted, it means the connection has established and user can start using Ethernet or serial port to do communication. -
Page 18: Serial Port Test
6.1 Serial Port Test Method (1) Connect both the ZT-2570 and ZT-2571 to the Host PC via the RS-232 port. You may need to use two serial port tools to simulate the data transmission. Serial Tool Serial Tool RS‐232/RS‐485 RS‐232/RS‐485 ZT‐2570 ZT‐2571 Method (2)： Use the DCON Utility on the Host PC to search for ZT-2000 series I/O modules. -
Page 19: Ethernet Test
6.2 Ethernet Test Method(1)： Connect both the ZT-2570 and ZT-2571 to the Host PC via the Ethernet port. You may need to use two TCP Server/Client tools to simulate the data transmission. Method(2)： Use the EZ-Data Logger as a TCP Client which is connected to the ZT-2570 on the Host PC to search for ZT-2000 series I/O modules. -
Page 20: Troubleshooting
Trouble shooting If you have any difficulties using your ZT-257x series module, please send a description of the problem to service@icpdas.com Include the following items in your email: A description to the communication protocol for more information. A copy of the configuration file for the ZT-257x module. This file can be obtained using the procedure outlined below and should be attached to your email. - Page 21 (1) LED Indicator Status： LED Indicator Status Introduction The status of ZigBee network [ZigBee Coordinator (Host)] Steady Lit ZigBee network is establish Blink to Steady Lit Rejoin ZigBee network or it has occupied ZigBee Net The status of ZigBee network [ZigBee Router (Slave)] (Green LED) Steady Lit Signal Strength...
