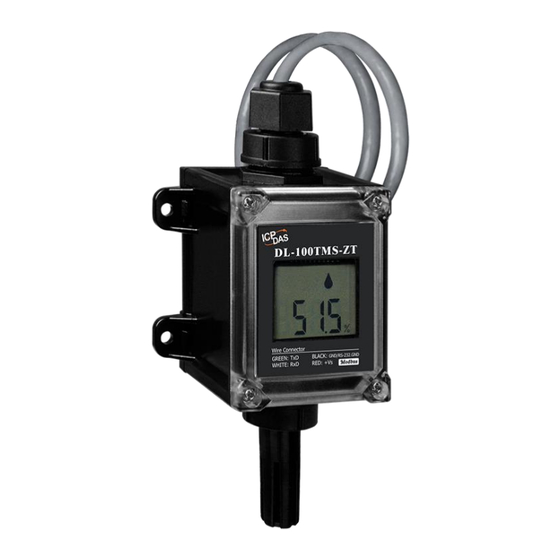

- Page 1 User Manual V 2.0.0 DL-100TMS-ZT (ZigBee Temperature and Humidity Module)
-
Page 2: Table Of Contents
Write and enable logging function --------------------------------------------------- 25 Read humidity and temperature ------------------------------------------------------ 26 Write and modify LCD display items and logged time intervals --------------- 26 LCD screen information------------------------------------------------------------------------ 27 DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... - Page 3 Contact us If you encounter any problems while operating this device, feel free to contact us via mail at: service@icpdas.com . DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
-
Page 4: Product Description
Users can refer to the structure below and use SCADA software to send Modbus commands to read back the current temperature and humidity through wireless communication of ZT-2550 or ZT-2570, or use DL-100TMS-ZT Utility through the ZT- 2550 to read back the temperature and humidity information logged in the module , and saves it as a CSV file (*.csv) or text file (*.txt). -
Page 5: Pin Assignments
1.2 Pin Assignments Power and RS-232 connector 1.3 Block Diagram DL-100TMS-ZT LCD Display DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... -
Page 6: Get Started
ZigBee. Users can use DL-100TMS-ZT Utility to read and write module parameters or read temperature and humidity information through one of the communication methods. Among them, the DL-100TMS-ZT Utility is linked as follows. Users can download and install it first: https://www.icpdas.com/tw/download/show.php?num=8942&model=DL-100TMS-ZT In addition, the connection steps for these two communication methods are as follows: ... -
Page 7: Wireless Communication
The DL-100TMS-ZT Utility needs to communicate with the DL-100TMS-ZT through the ZT-2550, so the ZT-2550 module needs to be set first, and then use DL-100TMS-ZT Utility to read and write the relevant parameters of DL-100TMS-ZT. - Page 8 Step 3: Connect RS-232 or RS-485 between the PC and ZT-2550, open the ZT- 2000 Configuration Utility on the PC, and select the COM port to communicate. DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved...
- Page 9 Step 4: Set the wireless communication parameters of ZT-2550. In addition, the wireless parameter default values of DL-100TMS-ZT are as follows. When using DL-100TMS-ZT for the first time, the Pan ID and RF Channel of ZT-2550 must be the same as DL-100TMS-ZT.
- Page 10 Baud Rate: Including 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps and other values, it is recommended to use 115200bps. Data Format: Since DL-100TMS-ZT Utility only supports N, 8, 1, please select N, 8, 1. Step 6: Select the communication mode of ZT-2550, please click Transparent.
- Page 11 Step 8: Power on the DL-100TMS-ZT again and confirm the wireless connection symbol on the LCD screen. Wireless Description connection symbol There are 4 wireless signal bars in total. As long as 1 signal bar appears, the connection is successful. In addition, the greater the number of signal bars, the better the signal.
-
Page 12: Module Parameter Setting
2.2 Module parameter setting After the DL-100TMS-ZT Utility is successfully connected to the module in Section 3.1, you can click the "Configurations" button to open the "Configuration" window, as shown in the figure below. This window can be divided into three categories: Basic, Data Log and Others. - Page 13 Among them, if DL-100TMS-ZT receives the first wireless packet from ZT-2550 and finds that the encryption status of the two modules is different, DL-100TMS-ZT will not respond to this wireless packet, but will directly switch encryption status, it will not respond until the next time it receives a wireless packet with the same encryption status.
-
Page 14: Data Log Tab
When the logging mode is fill mode (mode 0), the number of records Advanced Log can be read. Functions (Note) Same as Modbus address 365524 in Section 3.2. DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... -
Page 15: Others Tab
Others tab This tab is mainly used to set other parameters of DL-100TMS-ZT, as explained below. Parameter Description name Humidity and Manual offset value of temperature and humidity. Users can Temperature use this parameter to compensate the value of temperature Offset and humidity. - Page 16 Date & Time (Note) Same as Section 3.2 at Modbus address 365530~365532. DL-100TMS- Click "Read" to read the current date and time of DL-100TMS-ZT. ZT’s System (Note) Same as Modbus address 365533 in Section 3.2. Date & Time DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright ©...
-
Page 17: Logging Data
2.3 Logging Data After the DL-100TMS-ZT Utility is successfully connected to the module in Section 3.1, you can click the "Load log data" button to open the "Load log data window, as shown in the figure below. This window mainly consists of “Get data” and “Save as file” consists of two functions, which are explained in sequence as follows. -
Page 18: Save As File
Format Decimal point Separator Example Space「 」 23/07/2024 09:52:10 +25.16 +63.8 Point「.」 23/07/2024;09:52:10;+25.16;+63.8 Semicolon「;」 Space「 」 23/07/2024 09:52:10 +25,16 +63,8 Comma「,」 23/07/2024;09:52:10;+25,16;+63,8 Semicolon「;」 DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... -
Page 19: Modbus Rtu Protocol
Station number Function code Exception code 0x01 Illegal function code Function code + 0x02 Illegal address Value 0x01~0xFF CRC16 0x80 0x03 Illegal data value DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... -
Page 20: Modbus Table
Has the module been 10260 01, 02 Uint8 subsequent readings are fixed as (0x0103) rebooted? 0: No. 1: Yes. DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... - Page 21 [Low byte] Fixed character T (0x54) 65523 The value range is 0~509, with a 365524 03, 04 Uint16 Log the index value. (0xFFF3) total of 510 entries. DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
- Page 22 LCD display items Bit4: Display RF Channel. Bit3: Display system time. Bit2: Display humidity (%). Bit1: Display temperature (℉). Bit0: Display temperature (℃). DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
- Page 23 Low byte, it is (0xFFF7) 06, 16 recommended to use 0x0000~0x00FF. 65528 03, 04, 365529 Word RF Channel The value range is 0x0000~0x000F. (0xFFF8) 06, 16 DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
- Page 24 [Low byte] Current hour 65534 Current minutes and [High byte] Current minute 365535 03, 04 Word (0xFFFE) seconds values [Low byte] Current seconds DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
-
Page 25: Example
Station number 0x01 Response 01 05 01 00 FF 00 8D C6 Function code 0x01 Starting address 0x0100 Value 0xFF00 CRC16 0x8DC6 DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... -
Page 26: Read Humidity And Temperature
Response 01 06 FF F5 75 03 CF 7D minute. Station number 0x01 Function code 0x06 Starting address 0xFFF5 Value 0x7503 CRC16 0xCF7D DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... -
Page 27: Lcd Screen Information
The humidity symbol means that the value displayed in the description area is humidity. The date symbol means that the value in the description area is the current module time. DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... - Page 28 Unit area the description area is temperature (℉). The percentage symbol means that the value displayed in the description area is humidity (%). DL-100TMS-ZT User Manual Version2.0.0 Page: Copyright © 2019 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
