Summary of Contents for Eleiko Athletica 3061198

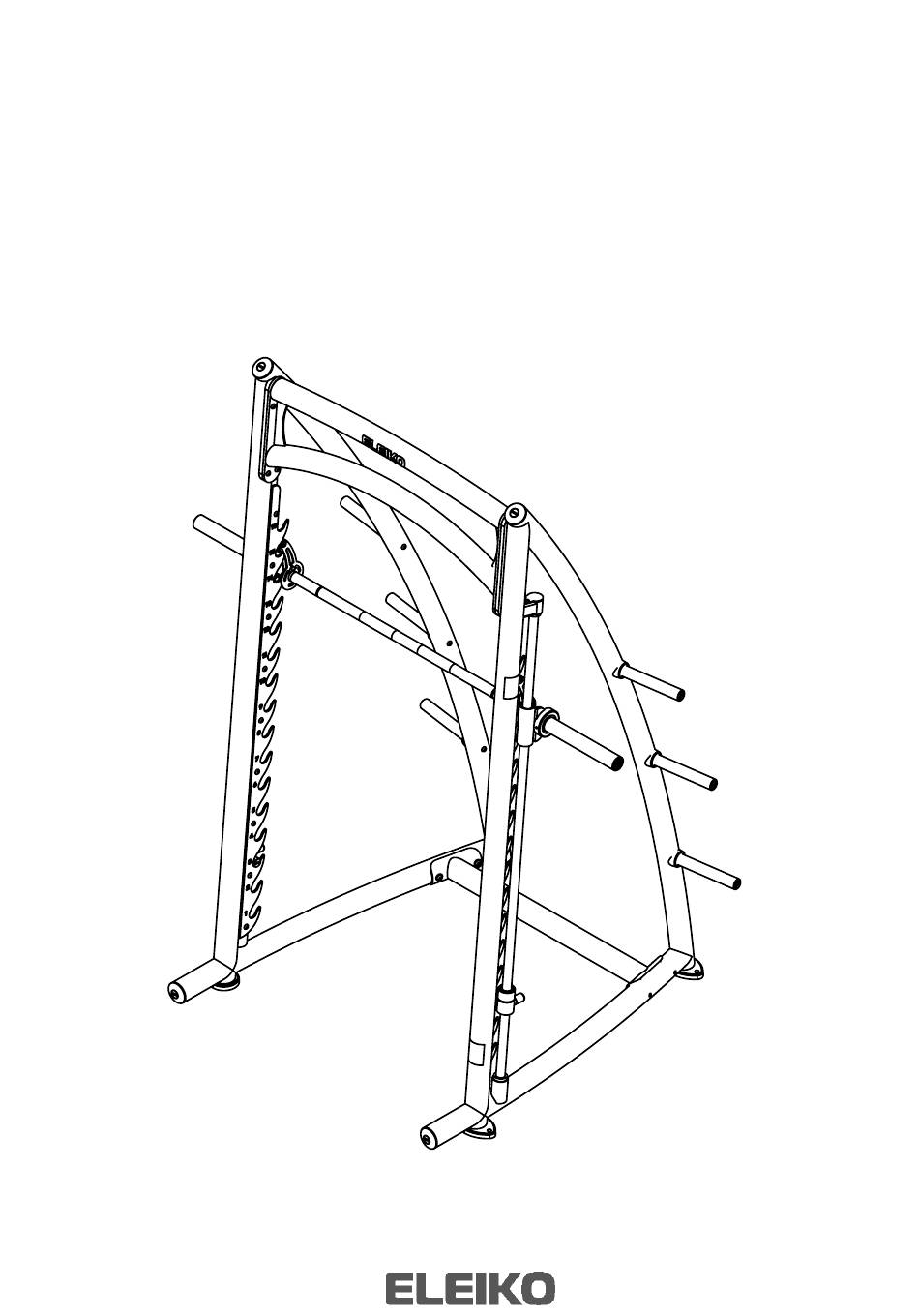

- Page 1 ELEIKO ATLETICA SMITH MACHINE Art.no. 3061198...
- Page 3 ELEIKO-installer. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. 1. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment.
-
Page 4: Product Specifications
PRODUCT SPECIFICATIONS Smith Machine designed for a varity of squatting, lunging and pressing movements. The unit also allow for weight storage. Product weight 165 kg / 364 lbs Max training weight 200 kg / 440 lbs 1950x1400x2400 mm Dimensions (L x W x H) 76.7x55.1x94.5 in FOOTPRINT AREA Add sufficient... - Page 5 CONTENTS Bottom Support Beam Left Gable Right Gable Art No 3061198 a3 Eleiko Smith bar 35 mm Top Support Beam Art No 3061382 Art No 3061198 a4 Rubber Foot, Black Rubber Stop ID 37 Weight Pin Art No 2000740 Art No 2000684...
- Page 6 CONTENTS K6S M10 x 25 Screw K6S, M12 x 25 Washer M12 BRB Art No 2000675-L25 Art No 2000743-L25 Art No 2000744 Screw K6S, M8 x 20 K6S M10 x 20 gänglåsning Art No 2000675-L20 Art No 2000991...
-
Page 7: Required Tools
REQUIRED TOOLS Allen Key Size 8 Allen Key Size 6 Allen Key Size 5 GENERAL The table below is general torque to use for different threads. Use these torques, if nothing else is set. Below numbers are for screw/nut of quality 8.8. TORQUE (Nm / ftlb) THREAD Quality 8.8... - Page 8 ASSEMBLY INSTRUCTIONS Bottom Support Beam Top Support Beam Left Gable Art No 3061198 a3 Art No 3061198 a4 Washer M12 BRB K6S M10 x 25 Screw K6S, M12 x 25 Art No 2000744 Art No 2000675-L25 Art No 2000743-L25 Start the assembly with the left gable laying on the floor 2000675-L25 2000743-L25...
- Page 9 K6S M10 x 25 Washer M12 BRB Screw K6S, M12 x 25 Right Gable Art No 2000675-L25 Art No 2000743-L25 Art No 2000744 Before you move to next step, Rubber Foot, Black turn the unit to upright position Art No 2000740 2000740 2000675-L25 2000744...
- Page 10 Screw K6S, M8 x 20 Eleiko Smith bar 35 mm Art No 2000991 Art No 3061382 2000991...
- Page 11 K6S M10 x 20 Rubber Stop ID 37 Weight Pin Art No 2000684 Art No 2000675-L20 Art No 2000685 2000675-L20 2000685 2000684...
- Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
