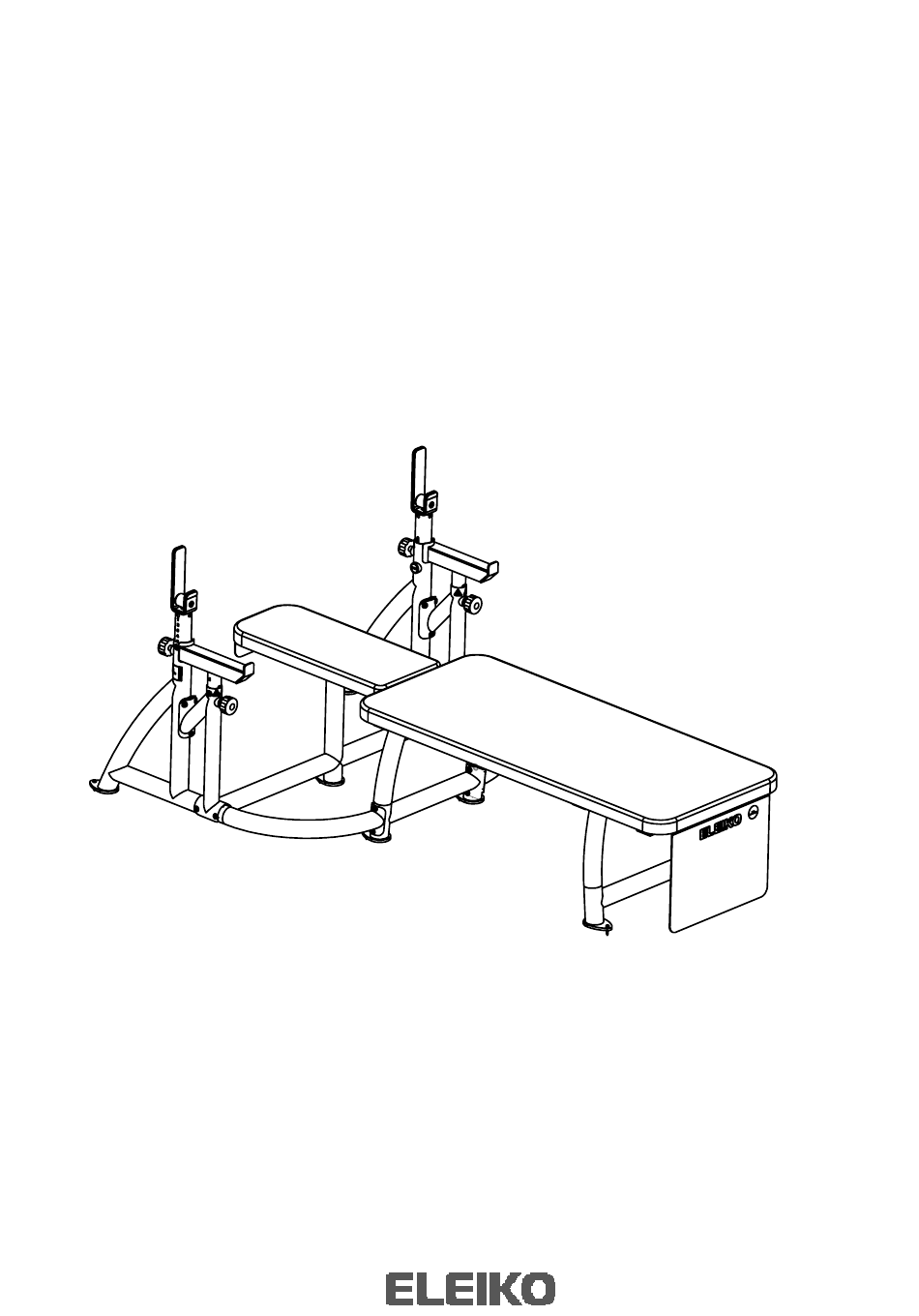

Eleiko WPPO Powerlifting Bench
Art.nr 3061190-

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3061190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eleiko 3061190

Summary of Contents for Eleiko 3061190

  • Page 1 Eleiko WPPO Powerlifting Bench Art.nr 3061190-...
  • Page 2 Replace damaged labels immediately. 8. Eleiko package for products can be made of wood, be aware of splinters, MUST use gloves and proper work wear. 9. Eleiko package material could be a risk when handling, be aware of crushing, MUST use work wear including gloves and hard shoes.

  • Page 3: Product Specifications

    PRODUCT SPECIFICATIONS This product is used for WPPO powerlifting Bench press, competition and training. Product weight 74 kg / 163 lbs Max user weight 180 kg / 397 lbs Max training weight 350 kg / 772 lbs 2289x1234x1095 mm Dimensions (L x W x H) 90"x49"x43"...

  • Page 4: Required Tools

    REQUIRED TOOLS Wrench Hex key Hex key 17 mm 10 mm 6 mm GENERAL The table below is general torque to use for different threads. Use these torques, if nothing else is set. Below numbers are for screw/nut of quality 8.8, 10,9 and 12.9. TORQUE (Nm / ftlb) TORQUE (Nm / ftlb) TORQUE (Nm / ftlb)
  • Page 5 CONTENTS ST5,5x32 MK6S M10x20 RXS 5,5x19 Washer M6x45 M6x25 D=25, d=7, t=1,5 MC6S M10x90 Washer d=11mm...
  • Page 6 CONTENTS Padding Padding front rear large small Pad support Pad support Beam Sign large Sign small Side left Side right...
  • Page 7 ASSEMBLY INSTRUCTIONS Side right MK6S M10x20 front Tighten the screws loosely...
  • Page 8 Beam MK6S M10x20 Tighten the screws loosely...
  • Page 9 MK6S M10x20 Side left Tighten the screws loosely...
  • Page 10 MK6S M10x20 Pad support Tighten the screws loosely...
  • Page 11 Pad support MK6S M10x20 rear Tighten the screws loosely...
  • Page 12 Washer MC6S M10x90 d=11mm...
  • Page 13 Washer M6x25 M6x45 D=25, d=7, t=1,5 M6x25 M6x45 Washer D=25...
  • Page 14 Sign small Sign large RXS 5,5x19...
  • Page 15 ST5,5x32 At last, tighten all screws properly. For safe lifting. Attach Bench to floor, if wooden floor, use the screws ST 5,5x32 if other flooring use appropriate screw.
  • Page 16 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
