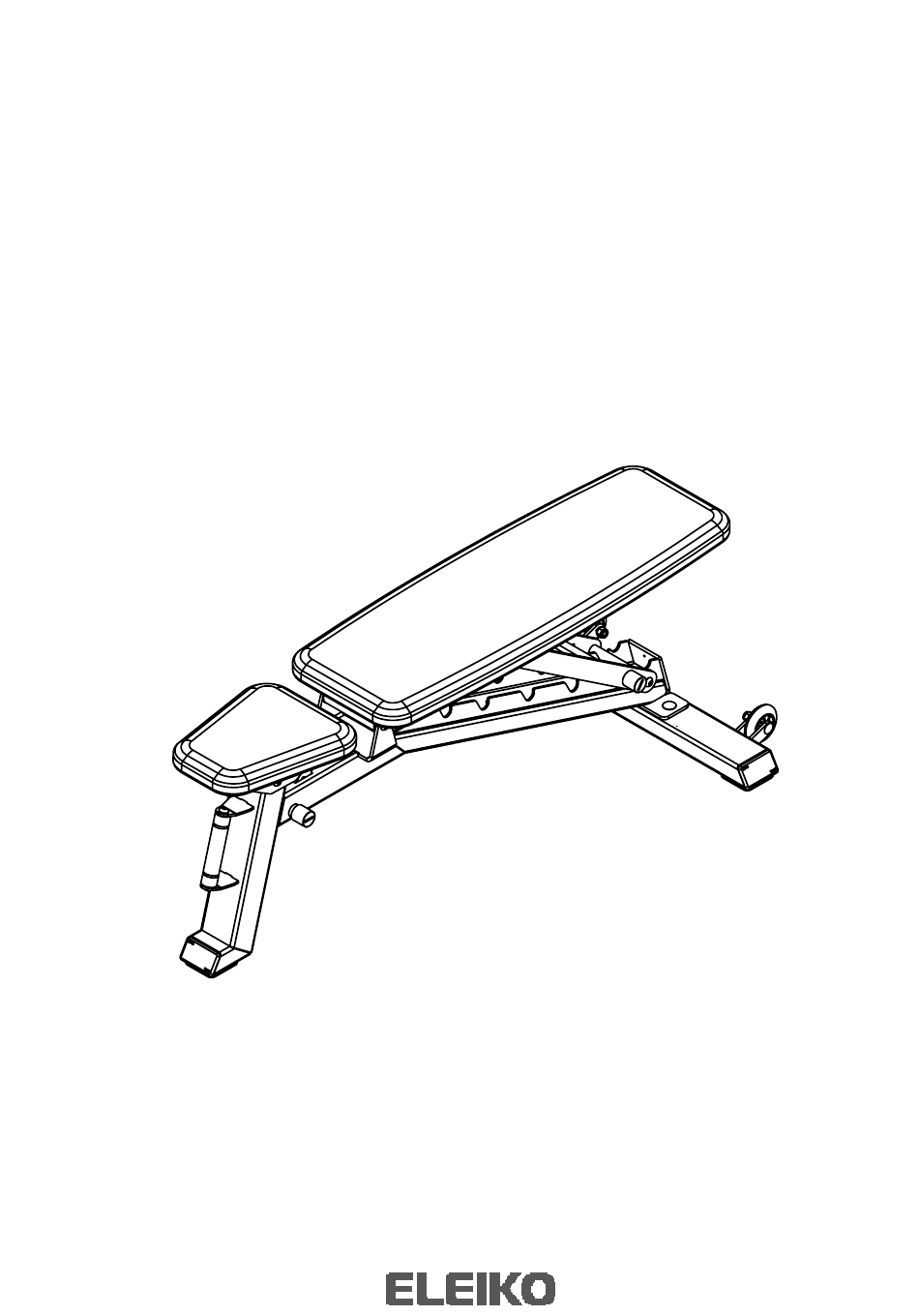

- Page 1 ELEIKO ADJUSTABLE BENCH Art.no. 3062962, 3062963...
-
Page 2: Table Of Contents
CONTENTS Read before installation and use Safety instructions Warning labels List of components Assembly instructions Tools needed User guide Purpose General instructions for use Product specifications Care and maintenance Preventive maintenance and inspections Spare parts and service Warranty... -
Page 3: Read Before Installation And Use
Install and use this equipment in a place where access and supervision are specifically controlled by the owner. Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all equipment is secured to the floor and installed by a licensed contractor or an Eleiko installer. -
Page 4: Warning Labels
WARNING LABELS - 4 -... -
Page 5: List Of Components
LIST OF COMPONENTS 2000746 2001345 3085153 p12 3000197 p14 LEG WITH WHEELS BACK REST PLATE FRAME 3085437 p25 BACK REST UPHOLSTERY POLYURETHANE BACK REST UPHOLSTERY SKAI LEATHER 2001273 2001391 SEAT UPHOLSTERY POLYURETHANE SEAT UPHOLSTERY SKAI LEATHER 2001276 2001393 LOCKING NUT M10 K6S M10 x 20 M10 x 30 WASHER M8 BRB... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before assembly, make sure you have enough clearance on all 0,6 m 0,6 m sides of the equipment, not less than 0,6 meters. Take in account the accessibility to remove and replace bar and weights. TOOLS NEEDED You need the following tools to assemble the equipment. Allen Key Size 6 Socket Wrench Size 17mm NOTE: Do not use electric power tools for assembly. - Page 7 LOCKING NUT M10 FRAME WASHER M8 BRB M10 x 30 LEG WITH WHEELS - 7 -...
- Page 8 K6S M10 x20 PLATE COVER SEAT UPHOLSTERY - 8 -...
- Page 9 BACK REST UPHOLSTERY K6S M10 x20 BACK REST PLATE THIS END OF BACK REST TOWARDS THE WHEELS! TURN BACK REST PLATE SO THAT HOLE PATTERN MATCHES PERFECTLY! - 9 -...
-
Page 10: User Guide
USER GUIDE PURPOSE Adjustable bench that can be used for a variety of free weight training exercises. Four seat positions and seven back positions offer a wide range of possibilities. GENERAL INSTRUCTIONS FOR USE To adjust the position graps the knurled knob and lift seat until it falls into desired position. -
Page 11: Care And Maintenance
E-mail: info@eleiko.com | Phone: +46 35 17 70 70 WARRANTY All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on structural frame welds (NOT on moving parts) ·... - Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
