Appendix A: Mechanical Specification
A.6.2
Network Connector Board

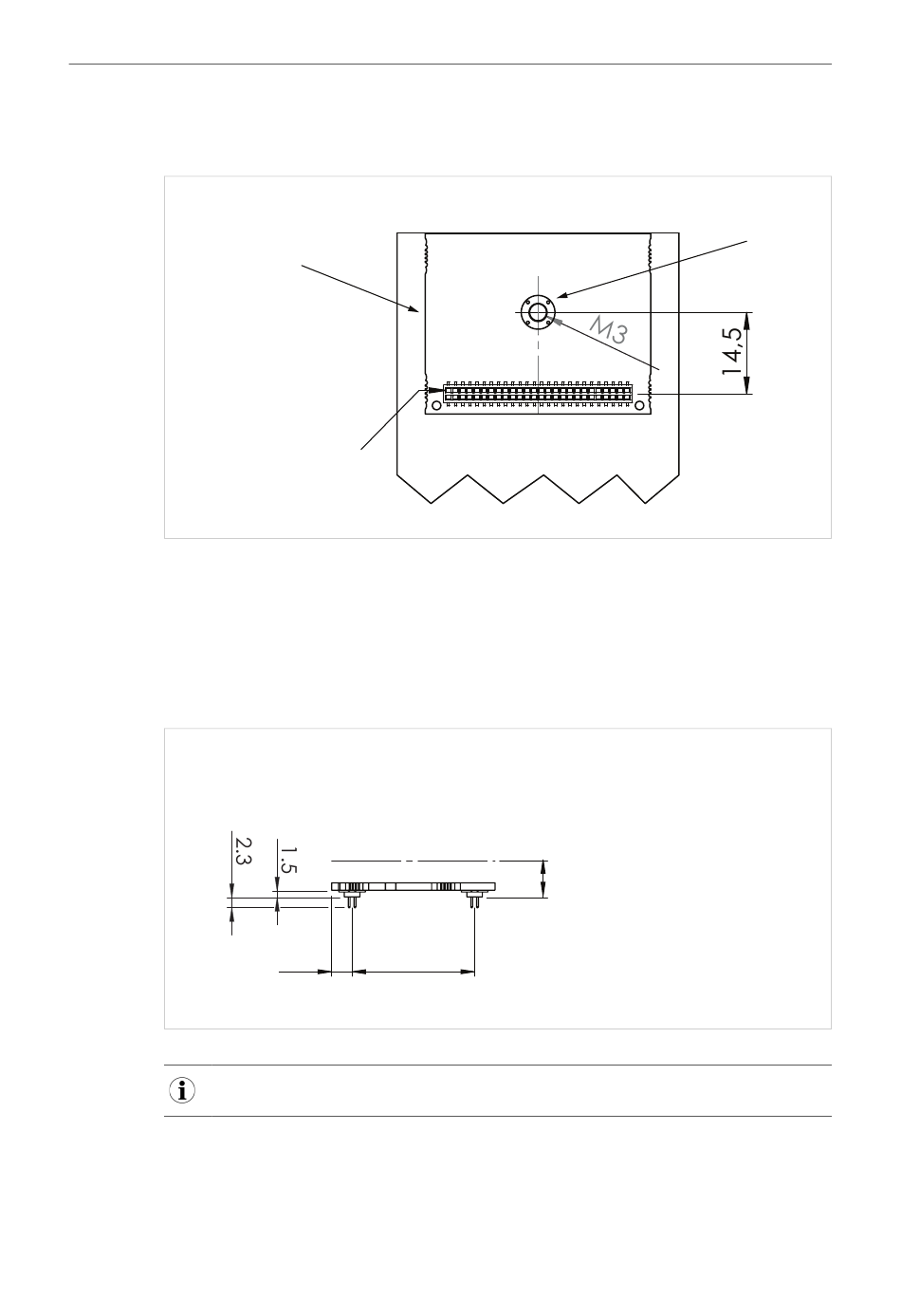

The network connectors are mounted on a separate connector board. The footprint for a
connector board is shown in the figure below. This footprint is the same for all connector boards
Outline of
connector board
Fig. 36
The fastening screw must be connected to the functional earth (FE) of the host application.
See
Assembly, p. 60
A.7
Height Restrictions
All dimensions are in millimeters
Fig. 37
The maximum height occupied by onboard components of the Anybus module is 8 mm. To ensure
isolation, it is recommended to add an additional 2.5 mm on top of these dimensions.
Anybus
®
CompactCom B40-1 Design Guide
Pin 1
Network
interface
for suggested components.
4.5
27
Top view
8 = max module height
HMSI-27-230 3.4 en-US
59 (78)
FE
