Network Connector

4 Network Connector

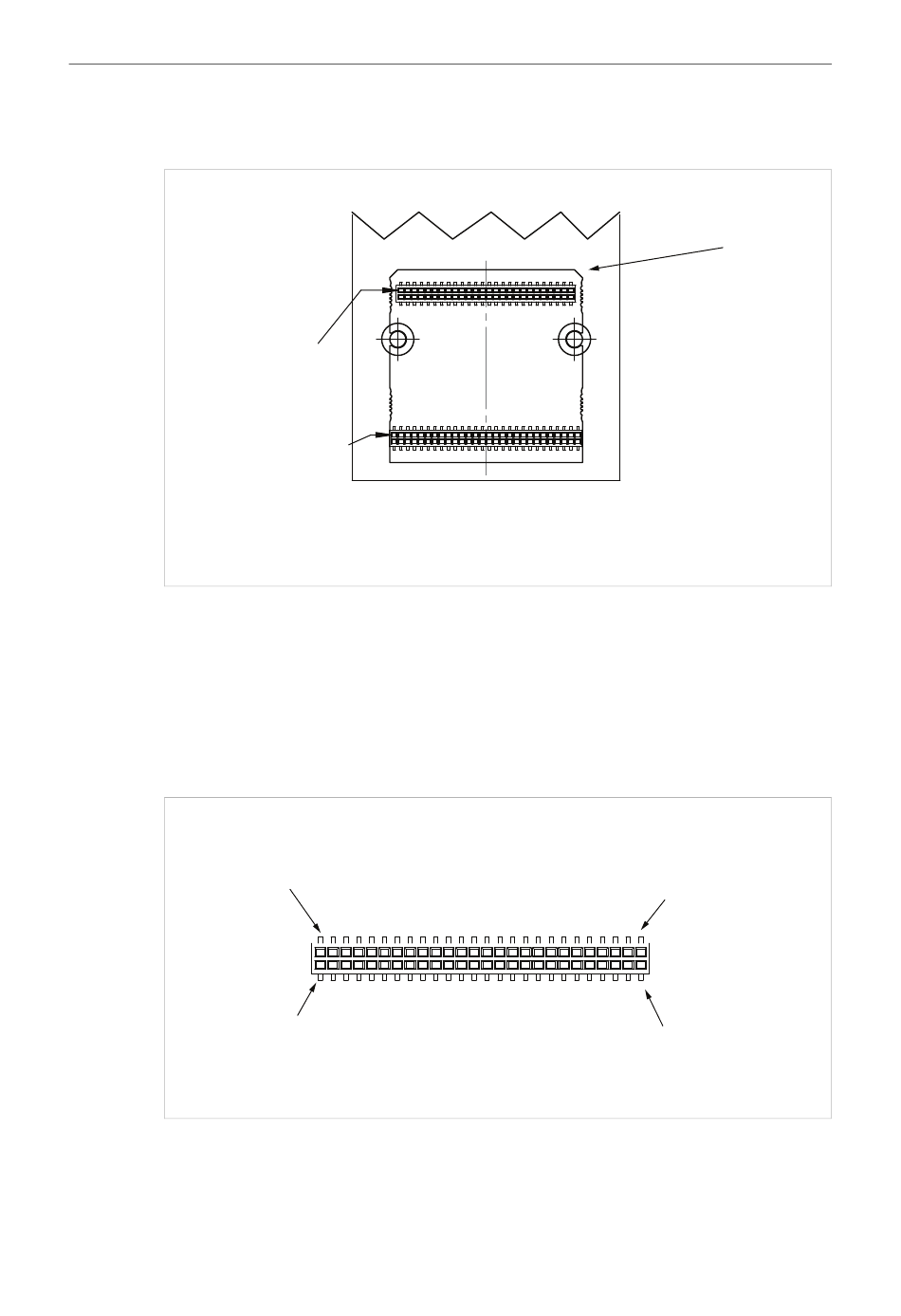

The network connector provides network access to the brick.
Pin 1
Network
interface
Pin 1
Application
interface
Fig. 21
The signals from the brick network connector can be directly routed to the (optional) connector
board, which carries a network connector(s) identical or similar to the ones on the corresponding
Anybus CompactCom M40 module.
Examples on how to design the network access circuitry, when not using the connector board,
are shown in
The brick has a standard 1.27 mm 52 pin header surface mounted to the bottom side of the
board as network interface.
Fig. 22
The pictures shows the pinning of the corresponding network connector on the host application
board, seen from the top.
Anybus ® CompactCom B40-1 Design Guide
Design Examples, Network Interface, p.
1
2
74.
Top view
40 (78)
Outline of brick
Top view
51
52
