Appendix A: Mechanical Specification
A.2
Connector Board for PROFIBUS

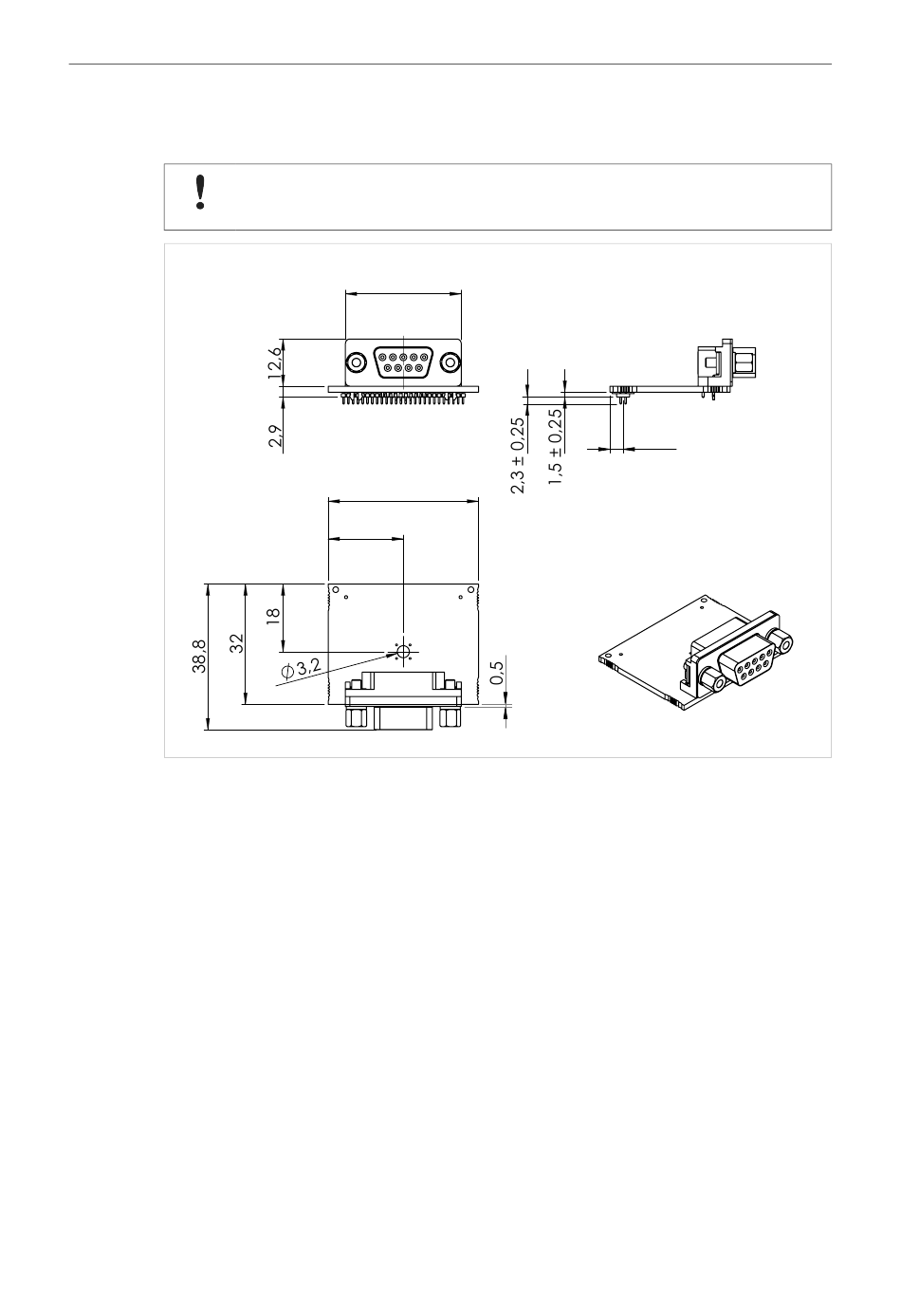

The connector board for the PROFIBUS network interface carries a D-sub connector
Fig. 31
Anybus
®
CompactCom B40-1 Design Guide
If the connector board is mounted in an environment that is subject to vibration, please
make sure to secure the network cable in such a manner, that the vibrations will not
harm the D-sub connector.
30,8
40
20
54 (78)
3,5 ± 0,20
HMSI-27-230 3.4 en-US
