Summary of Contents for Spirit Johnny G JB950
- Page 1 ® JB950 JOHNNY G SPIRIT BIKE CONSOLE OPERATION...
- Page 2 Johnny G Spirit Bike...
-
Page 3: Warm Up Mode
WARM UP MODE The Warm Up Mode is the most basic function of the Johnny G Spirit Bike. Riders can use this mode to prepare themselves for a class or when just pedaling to warm up for other activities. This mode is the first function that occurs when the console awakens from sleep mode. -
Page 4: Heart Rate
Press + Key until screen displays DO NOT CONNECT. • Press Play Key and screen displays WARM UP, blinking 3 times, then • reverting to Warm Up Mode. The HR on lower display will remain blank. Johnny G Spirit Bike... - Page 5 MANUAL MODE OR HR ZONE PROGRAM The Manual Mode is another basic function of the Johnny G Spirit Bike. The Manual Mode is also the HR Zone program. Once HR is paired during the Warm Up Mode, HR performace and zones will be tracked.
- Page 6 Programs Mode provides the opportunity to pair a HR strap to the console and access to the four training programs contained within the Johnny G Spirit Bike. If just starting a ride and in the Warm Up Mode press and hold the Play Key for 3 seconds and the first program option will display PAIR HR DEVICE.
- Page 7 PAIR HEART RATE DEVICE HR Zone program requires connection of a Heart Rate Strap prior to using program. Connecting console to a Heart Rate Strap can be accomplished prior to entering Programs Mode during the Warm Up Mode (if the Auto Pair HR function is turned ON in Maintenance Mode) or after entering Programs Mode.

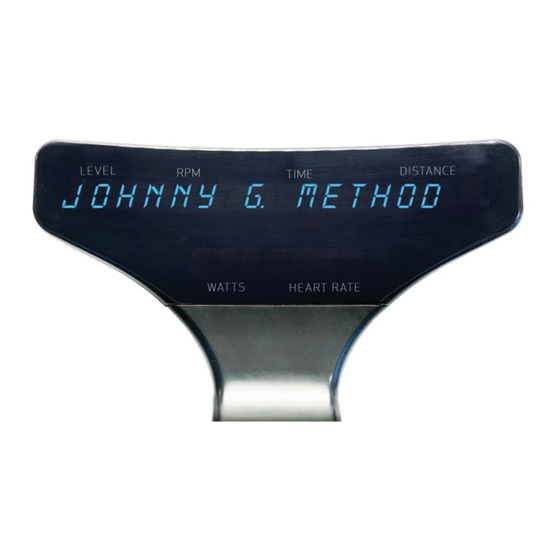

- Page 8 Any data collected during Warm Up Mode will be erased. • Home screen will appear and display: Level, RPM, Time, Distance, • Watts, Heart Rate. Press + or – Key on either Forward Control Pad or handlebar ends to • adjust resistance. Johnny G Spirit Bike...
- Page 9 Console HR LED color changes based on user percent of max HR (%MHR). Console HR LED is on right side of console. HR LED color spectrum is as follows: <59% = White • 60 – 69% = Blue • 70 – 79% = Green •...
- Page 10 RED ZONE TIME, PCT • Pressing Play Key will revert to WORKOUT RESULTS. Press + Key again to • advance and repeat screens. Pressing Play Key will reset display and revert to WARM UP Mode. • Johnny G Spirit Bike...
- Page 11 POWER ZONE: Summary displays percent of total time in each zone. Press Play Key to display results; press + Key repeatedly to scroll POWER • ZONE results. WHITE ZONE TIME, PCT • BLUE ZONE TIME, PCT • GREEN ZONE TIME, PCT •...
- Page 12 Any data collected during Warm Up Mode will be erased. • Home screen will appear and display: Level, RPM, Time, Distance, • Watts, Heart Rate. Press + or – Key on either Forward Control Pad or handlebar ends • to adjust resistance. Johnny G Spirit Bike...
- Page 13 Console Power Zone LED color changes based on user percent of max FTP. Console Power LED is on left side of console. Power Zone LED color spectrum is as follows: <55% FTP = White • 56 – 75% FTP = Blue •...
- Page 14 Key and Play Key for 3 seconds. This action will exit rider from Power Program and revert to warm up. To end workout, refer to instructions on Ending Ride or User and the workout summary on page 10. Johnny G Spirit Bike...
- Page 15 LAP PROGRAM The Lap Program allows riders to perform repeated measures of Time and Distance efforts. The program will compare your current lap with your previous lap. Rider may perform as many laps as desired, but only the last 5 laps will display in the workout results. To start: Reset the console then press and hold the Play Key for 3 seconds •...
- Page 16 THIS.LAP data displays for 5 seconds, then LAST.LAP for 5 seconds, then console exits to recovery phase and total workout display. User may continue using lap function, but number of laps saved • in memory for display during workout summary is last 5 laps completed. Johnny G Spirit Bike...
-
Page 17: Entering Maintenance Mode
MAINTENANCE MODE Maintenance Mode contains sensitive settings for your bike's console. Becoming familiar with the Maintenance Mode information used in this section important for your bike's proper operation. It is necessary that the console be powered in order to access the Maintenance Mode. Pedaling above 30RPM is all that is needed to illuminate the console. -
Page 18: Display Test
Press Play Key to change setting. • Default setting is ENGLISH. • SPD AVG and SPD PEAK in workout results will only display MPH. • Press + Key for next screen or reset console to exit Maintenance Mode. • Johnny G Spirit Bike... -
Page 19: Brake Test
BRAKE TEST Brake test controls are a sensitive setting for your bike's functionality. Proper training is required for this setting. The purpose of this setting is to test the magnetic resistance system. Press Play Key to enter Brake Test. MOTOR TEST AUTO is displayed. •... -
Page 20: Update Software
1 or above, 0 is not a valid number. Press Play Key to accept, bike number will stop flashing momentarily • then turn off indicating set. Press + Key for next screen or reset console to exit Maintenance Mode. • Johnny G Spirit Bike... -
Page 21: Demo Mode
AUTO PAIR HR The purpose of this setting is to turn ON or OFF the HR pairing function during the Warm Up Mode. Not all cycling classes are done using HR. Facilities have the option to simplify the user set-up and facilitate getting into the Manual Mode. - Page 22 NOTES Johnny G Spirit Bike...
- Page 23 NOTES...
- Page 24 JB950 Console Operation © 2019 All Rights Reserved Revision: 07.22.2019...
