Intuicom RTK Bridge-X Installation Manual page 5

• Configure the pinout on the Deutsch connector on the RTK Bridge–X to GeoSteer
data/power cable to match the appropriate pin-out. See Pin-out Diagram 1
Deutsch
3
6
1
4
4
• Using the Intuicom RTK Bridge–X to GeoSteer data/power cable (XRTKCAB-
AGGEO), connect the RTK Bridge–X data port to the NMEA A & Radio port on the
GeoSteer.
• Connect the SAE power connector to the supplied DC power adapter which is
connected to Battery power.

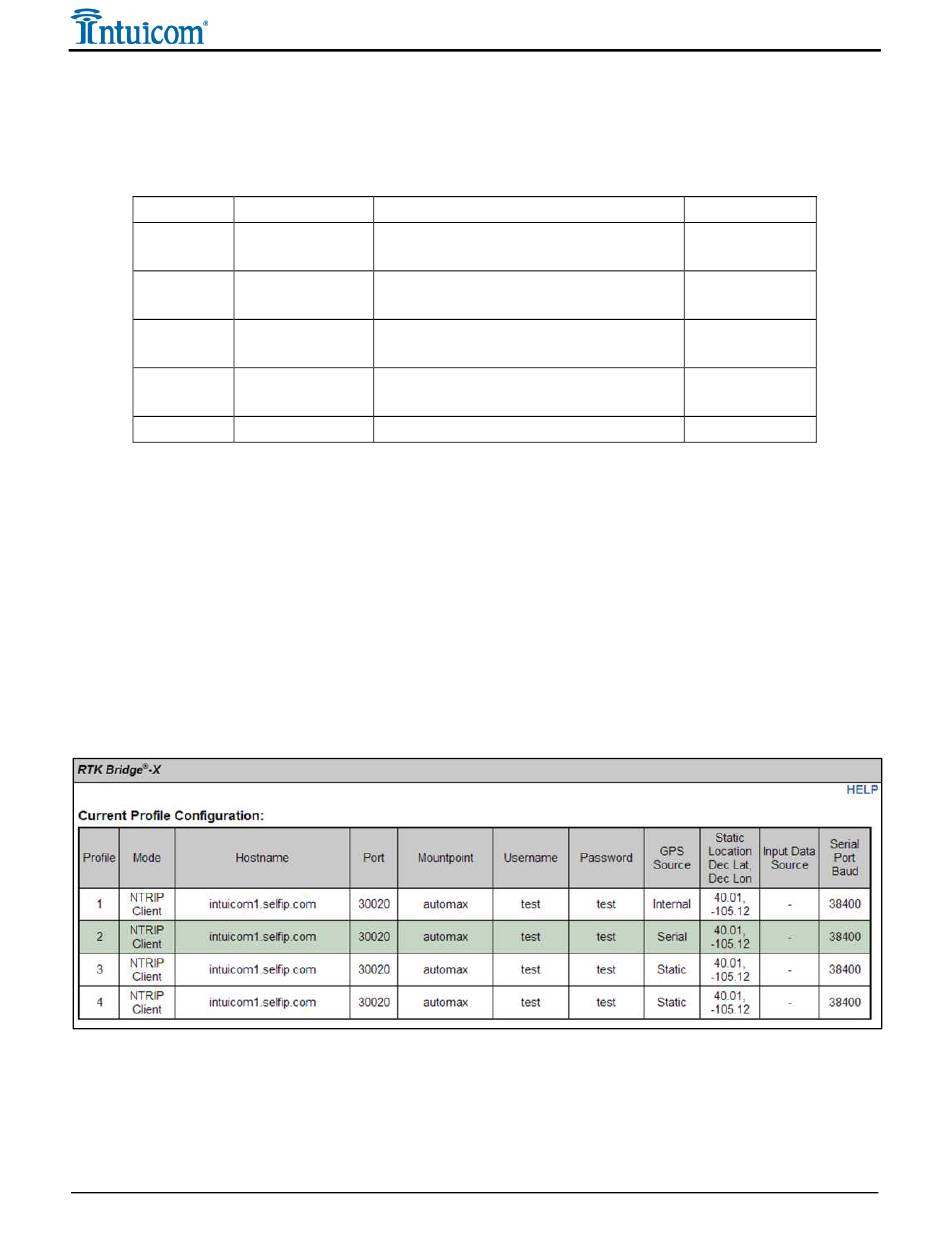

• The RTK Bridge-X should be configured to receive the GPS position from the data
port. In the Profiles page, in the profile that is to be used, under GPS Source, select
Serial. The RTK Bridge-X is now ready to receive the GPS position from the
GeoSteer.
• Apply power and connect to the GeoSteer.
Version 1.0
Pin-out Diagram 1
Cable Color
Red
Receive (from RTK Bridge-X to
Green
Xmit (to RTK Bridge-X from
White
Black
Brown
Section 2: Installation Instructions
Signal
Power
remote device)
remote device)
Power Ground
Signal Ground
4
GeoSteer
SAE
connector
1
2
SAE
Connector
3
Intuicom, Inc.
