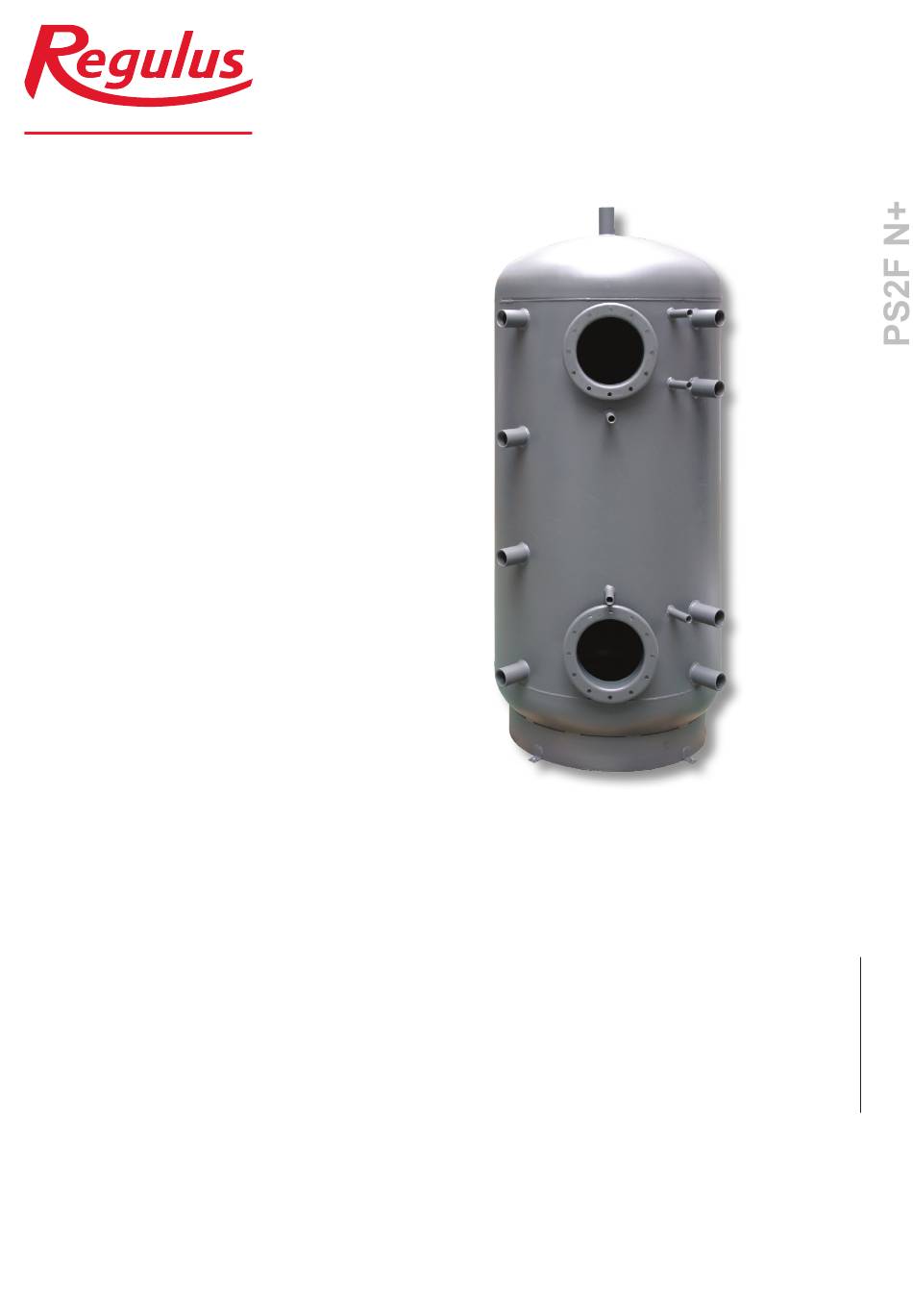

- Page 1 Installation and Operation Manual THERMAL STORES PS2F 300 N+, PS2F 500 N+, PS2F 800 N+, PS2F 1000 N+, PS2F 1500 N+ and PS2F 2000 N+ PS2F N+...
- Page 2 CONTENTS 1 Description ..............................1.1 Models ..............................1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packaging ............................2 General Information ............................3 Technical Data and Dimensions ........................4 Operation ................................ 5 Typical Layout Example with Thermal Store ....................6 Installation and Commissioning ........................
- Page 3 1 - Description PS2F N+ Thermal Stores are intended for storing and subsequent distribution of thermal energy from solid-fuel fired boilers, heat pumps, solar collectors, electric boilers etc. This thermal store shall be always connected to a sealed heating circuit with forced circulation. Thermal stores are fitted with two flanges; each can be fitted with a suitably sized tube heat exchanger depending on the selected application and required output.
- Page 4 3 - Technical Data and Dimensions Dimensions ØD1 CONNECTIONS pos. connection ØD Heat sources G 6/4" F G 6/4" F Heating system G 6/4" F G 6/4" F Control and safety G 1/2" F G 1/2" F G 1/2" F G 1/2"...
- Page 5 4 - Operation In the thermal store, heating water is heated up from several heat sources like various types of hot-water boilers, renewable energy sources (heat pumps, solar collectors), or electric heating elements. The thermal store shall be connected to a heat source through G 6/4” connecting fittings. Should it be connected to a solar thermal system, too, this shall be done through a suitably sized heat exchanger installed into the lower flange.
- Page 6 6 - Installation and Commissioning Installation shall meet valid rules and may be done by qualified staff only. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g.
- Page 7 Installing Insulation 1. Put the bottom insulation under the tank and place the tank following installation instructions. 2. Wrap the insulation around the tank carefully. Check that the insulation adheres to its body perfectly. This can be reached by rubbing and patting the insulation by hand from its center evenly in both directions until the insulation adheres to the tank’s surface completely and no bubbles are left.
- Page 8 This product is covered by warranty under the conditions listed in this Manual and in compliance with the Warranty Certificate. A Warranty Certificate is an integral part of this thermal store scope of supply. v1.3-12/2022 ©2022 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
