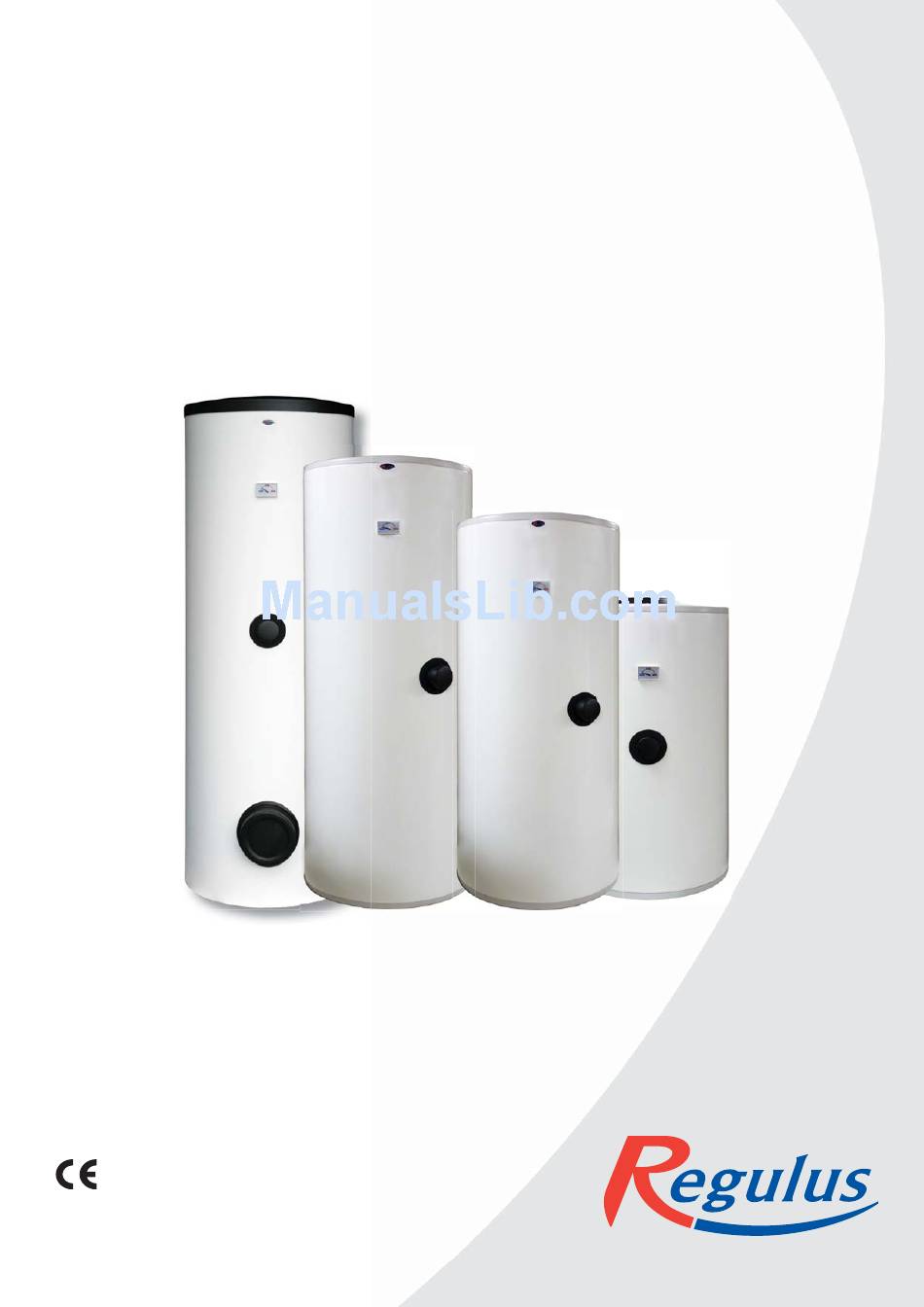

- Page 1 Installation and Operation Instructions STORAGE WATER HEATERS R2DC 160, R2DC 200, R2DC 250 and R2DC 300 v. 1.3...
-
Page 2: Thermal Insulation
4× lateral with G 1“ M (R2DC 160 - G 3/4“ F) thread, for the heating coils 2× lateral with G 3/4“ M (R2DC 160 - G 3/4“ F) thread, for cold water inlet and hot water outlet 2× lateral with G 1/2“ inner thread for temperature probes 1×... -
Page 3: Technical Data And Dimensions
DHW heating Δt=35 °C (80/60 - 10/45) - upper heating coil: ..418 (17) l/h (kW) DHW heating Δt=35 °C (80/60 - 10/45) - lower heating coil..467 (19) l/h (kW) Empty weight: ..............76 kg REGULUS - R2DC - www.regulus.eu │... - Page 4 DHW heating Δt=35 °C (80/60 - 10/45) - upper heating coil: ..590 (24) l/h (kW) DHW heating Δt=35 °C (80/60 - 10/45) - lower heating coil..590 (24) l/h (kW) Empty weight: ..............105 kg REGULUS - R2DC - www.regulus.eu │...
- Page 5 DHW heating Δt=35 °C (80/60 - 10/45) - upper heating coil: ..590 (24) l/h (kW) DHW heating Δt=35 °C (80/60 - 10/45) - lower heating coil..786 (32) l/h (kW) Empty weight: ..............120 kg REGULUS - R2DC - www.regulus.eu │...
- Page 6 DHW heating Δt=35 °C (80/60 - 10/45) - upper heating coil: ..590 (24) l/h (kW) DHW heating Δt=35 °C (80/60 - 10/45) - lower heating coil..860 (35) l/h (kW) Empty weight: ..............125 kg REGULUS - R2DC - www.regulus.eu │...
-
Page 7: Typical Installation Examples
Example I. gas boiler and solar system plynový kotel boiler bb bbb recirculation cold water R2DC R2DC Example II. solid-fuel boiler, solar system and accumulation tank kotel boiler bb bbb recirculation cold water R2DC REGULUS - R2DC - www.regulus.eu │... -
Page 8: Installation And Commissioning
The tank can be used with a solar system. In such a case, the inlet for hot heat-carrying liquid coming from the solar system shall be connected to the G 1” (R2DC 160 - G3/4”) upper sleeve of the heating coil and the lower outlet to the return piping to the solar system. -
Page 9: Maintenance, Replacement Of Magnesi- Um Anode Bar
This product is covered by warranty according to the conditions described in this Manual and according to the Warranty Certificate. A Warranty Certificate is an integral part of the supply. Tank transport or storing in a horizontal position is considered a warranty violation! REGULUS - R2DC - www.regulus.eu │... - Page 10 01/2014 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.eu 143 00 Praha 4 E-mail: sales@regulus.cz CZECH REPUBLIC...
