Owners Manual

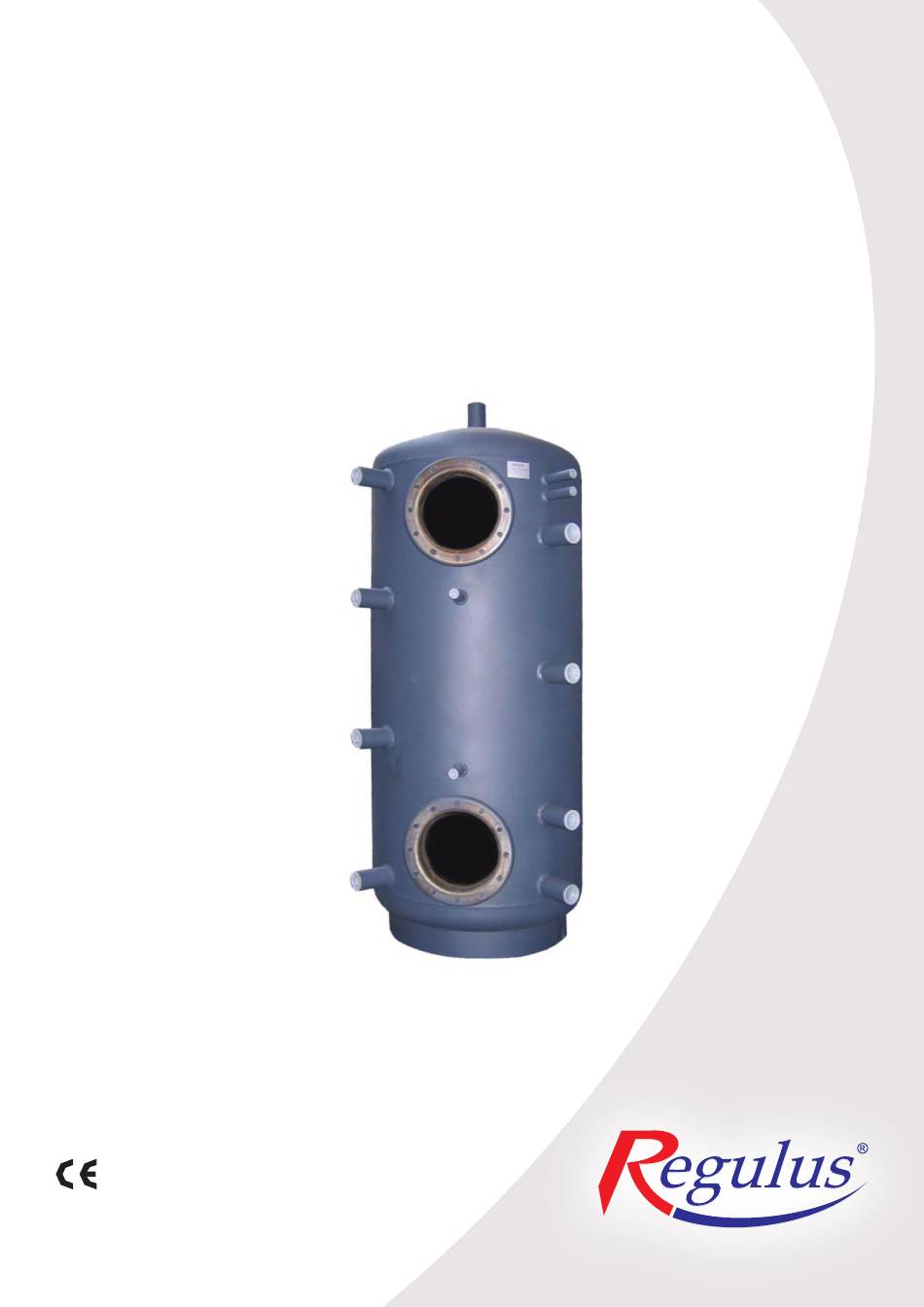

ACCUMULATION TANKS PS2F 300,
PS2F 500, PS2F 800, PS2F 1000, PS2F 1500,
PS2F 2000, PS2F 3000, PS2F 4000, PS2F 5000
EN
v. 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS2F 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Regulus PS2F 300

Summary of Contents for Regulus PS2F 300

  • Page 1 Owners Manual ACCUMULATION TANKS PS2F 300, PS2F 500, PS2F 800, PS2F 1000, PS2F 1500, PS2F 2000, PS2F 3000, PS2F 4000, PS2F 5000 v. 1.1...

  • Page 2: Table Of Contents

    CONTENTS 1. Description ..............................1.1 Models ..............................1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packing ............................... 2. General Information ............................3. Technical Data and Dimensions of PS2F Models ..................4. Operation ............................... 5.

  • Page 3: Description

    1. Description PS2F Accumulation Tanks are intended for accumulation and subsequent distribution of thermal energy from solid-fuel fired boilers, heat pumps, solar collectors, electric boilers etc. The accumulation tank shall be always connected to a closed heating circuit. A PS2F tank is fitted with two flanges, each of them can be used to accommodate a suitably sized tube heat exchanger.

  • Page 4: Technical Data And Dimensions Of Ps2F Models

    3. Technical Data and Dimensions of PS2F Models G 6/4“ G 6/4“ G 1/2“ G 1/2“ G 6/4“ G 1/2“ G 6/4“ G 6/4“ G 6/4“ G 1/2“ G 6/4“ G 6/4“ G 6/4“ ø R ø S ø T Tank code ..........

  • Page 5: Operation

    4. Operation In the accumulation tank heating water is heated up from several heat sources like various types of hot-water boilers, renewable energy sources (heat pumps, solar collectors), or electric heating rods. The accumulation tank shall be connected to a heat source through G 6/4” threaded fittings. Should the tank be connected to a solar system, this must be done through a properly sized heat exchanger installed into the lower flange.
  • Page 6 Example II. Solar collectors and a combination gas boiler. gas boiler with a storage water heater hot water cold water Example III. Solar collectors, a solid fuel boiler and el. heating rods. hot water cold water...

  • Page 7: Installation

    6. Installation Installation must meet valid rules and may be done only by qualified staff. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g.

  • Page 8: Installing Insulation On The Tank

    7. Installing Insulation on the Tank Instructions Product description Thermal insulation of soft polyurethane foam with a zipped PVC layer, or melamine or polystyrene boards with a batten and hard PS sheet, with a lid and a set of rosettes. Warning Insulation installation shall be done in two or three persons, depending on its size.
  • Page 9 Pictures showing how to mount soft-foam insulation with a PVC sheet on a tank.

  • Page 10: Maintenance

    8. Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9.

  • Page 11: Finned Tube Heat Exchangers

    10.3 Finned tube heat exchangers These heat exchangers are intended to transfer heat in accumulation tanks. They are manufactured for the best heat transfer from finned copper tubes. They differ in their size of heat-transfer surface, length, connection size, manner of winding and number of tubes.

  • Page 12: Flanges For Heat Exchangers

    10.4 Flanges for heat exchangers These flanges are used with respect to the screw joint diameter, see the table of heat exchangers. First of all, the heat exchanger shall be installed into the flange, then this assembly with a gasket shall be mounted into the tank. If no tube heat exchanger is desired, a blind flange with a gasket shall be mounted.
  • Page 14 Stamp print, signature of the salesman and address of the shop: Date of a professional installation by plumber: ........Stamp print, signature and address of the authorized person: 08/200 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.eu CZ-143 00 Praha 4...
