Terminal block
4
3
2
1

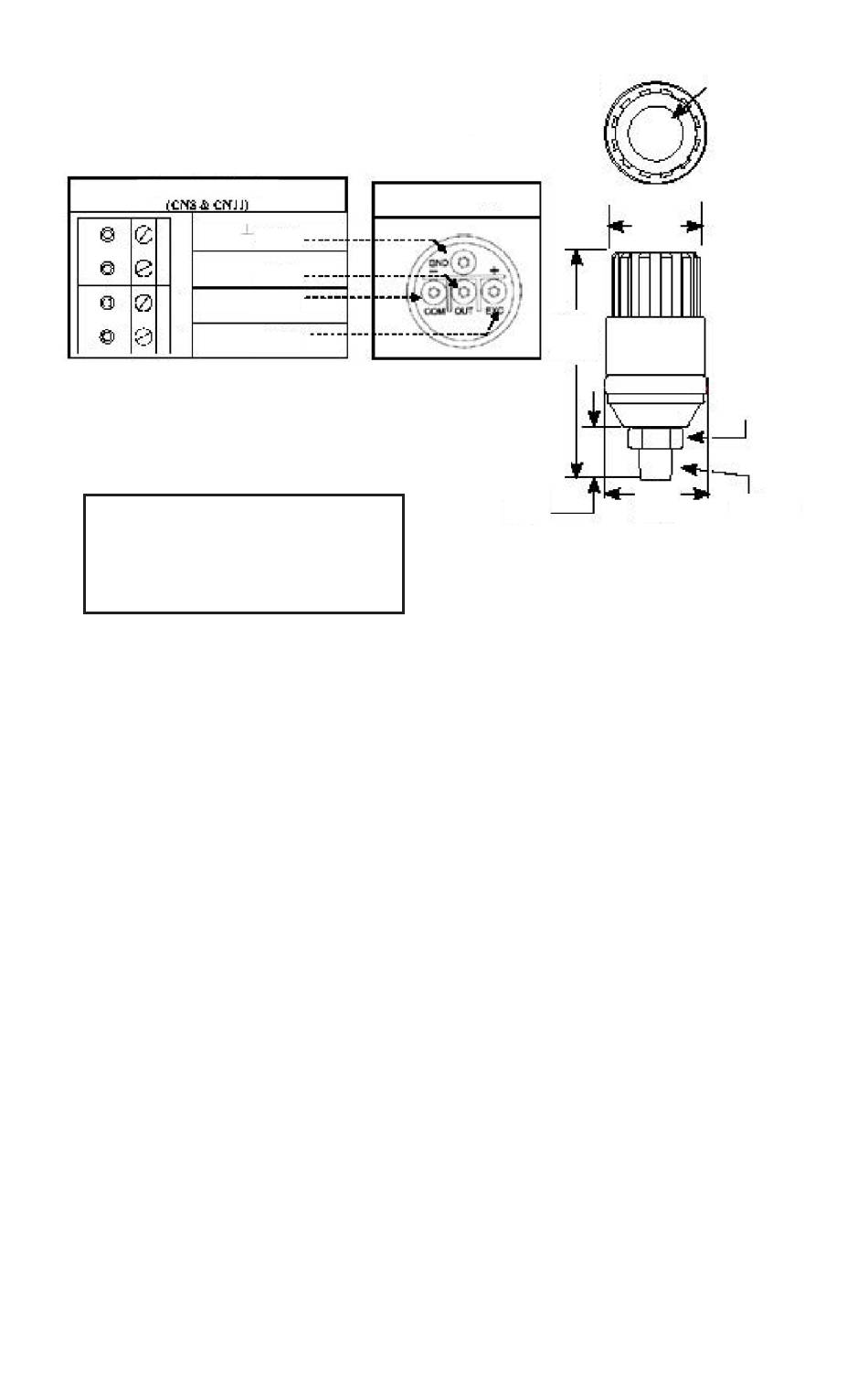

Chart 1. Electrical wiring chart
for High & Low Pressure Sensors
(Conduit version)
CAUTION:
Reverse excitation will permanently
damage unit. Please follow wiring
instructions carefully.
Conduit adapter
(GND)
(+OUT)
(COM)
(+EXC)
3.61
(91.74)
1.68
(42.57)
Dimensional Drawing
10
1/2 inch
conduit
opening
1.40
(35.48)
in.
(mm)
3/4" HEX
1.62
1/4" NPT
(41.22)
Figure 6
