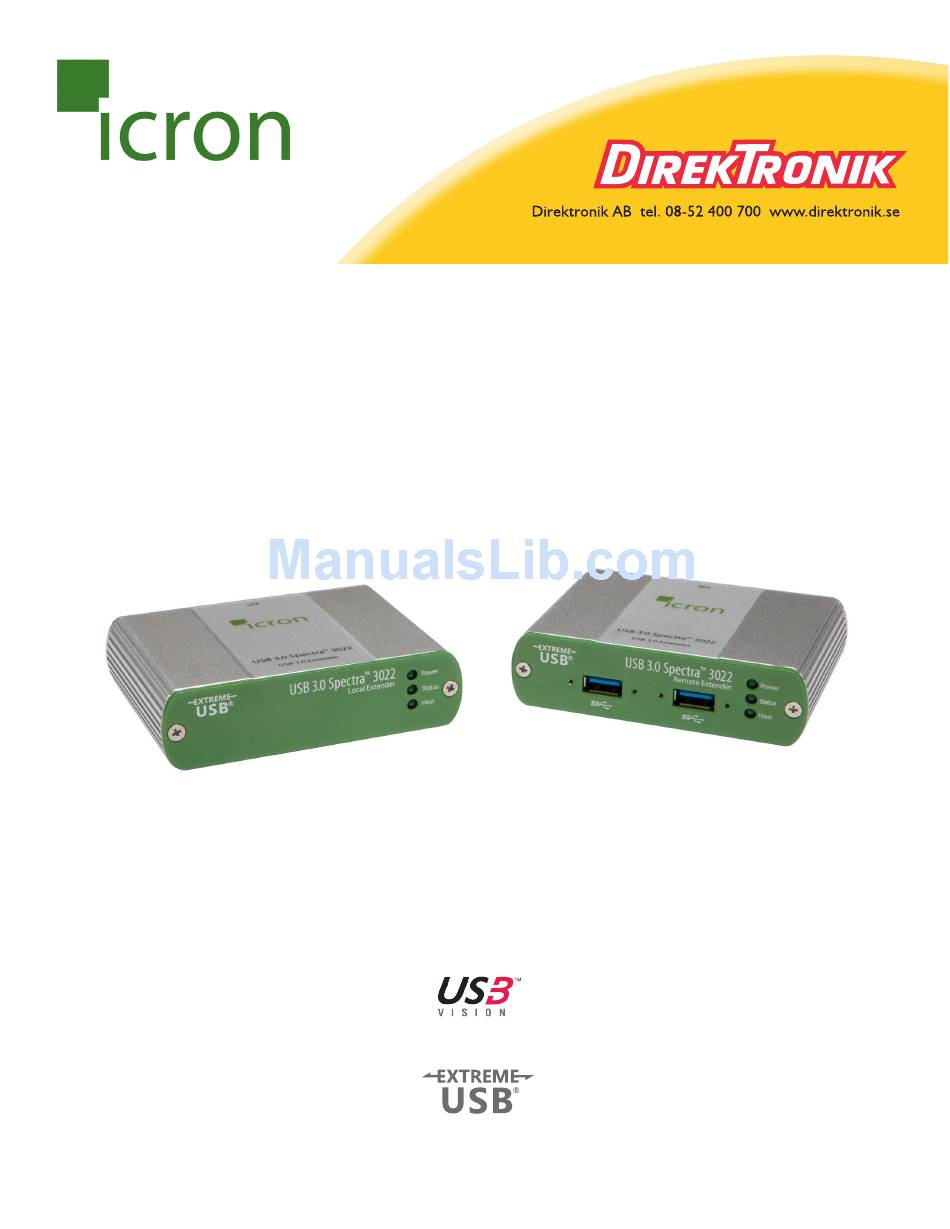

- Page 1 USB 3.0 Spectra 3022 ™ 2-Port USB 3.0 100m Multimode Fiber Extender System User Guide...
- Page 2 CE Statement We, Icron Technologies Corporation, declare under our sole responsibility that the Spectra 3022, to which this declaration relates, is in conformity with European Standard EN 55022, EN 55024, EN 61000-3-2, and EN 61000-3-3.
-
Page 3: Table Of Contents
Contents Introduction ......................3 Spectra 3022 Product Contents ..................... 3 Features ..............................3 The LEX Unit ............................4 The REX Unit ............................5 Installation Guide ....................6 Requirements ............................6 Fiber Optic Link Cabling........................6 Installing the Spectra 3022 System....................7 Preparing Your Site ..........................7 Preparing Your Computer......................... -
Page 4: Introduction
The Spectra 3022 incorporates Icron’s patented ExtremeUSB® technology, enabling users to extend beyond the standard 3m cable limit for USB 3.0 peripheral devices. With the Spectra 3022, USB 3.0 devices can be located up to 100 meters from the computer. -
Page 5: The Lex Unit
The LEX Unit The Local Extender (LEX) unit connects to the computer using a standard USB 3.0 cable. Power for this unit is provided by the USB on the host computer. Front View Rear View ITEM TYPE DESCRIPTION Power ON Unit is powered properly. -
Page 6: The Rex Unit
The REX Unit The Remote Extender (REX) unit provides USB Type A ports for USB 3.0 devices. The REX unit allows you to connect up to two USB 3.0 devices directly. The REX unit is powered by an external AC adapter and can supply up to 900mA to each USB port. -
Page 7: Installation Guide
Assembly Line Requirements To complete installation of the Spectra 3022, you will also require the following items that are not included with the product: • USB 3.0 compatible computer (host computer) with a USB 3.0 compliant operating system •... -
Page 8: Installing The Spectra 3022 System
Preparing Your Computer The Spectra 3022 does not support suspend modes of operation. As such, your computer should be configured to not go into “suspend mode” or to “suspend” the USB ports. - Page 9 For each of the plans listed: a. Click on Change Plan Settings Select “Never” for “Put the computer to sleep” for all the configurations presented. a. Click Change advanced power settings.
- Page 10 b. Expand “USB settings” c. Expand “USB selective suspend setting” Select “Disabled” . OS X To disable “suspend” settings on your computer: Open System Preferences and select Energy Saver.
- Page 11 For both Battery and Power Adapter power settings, move slider bar to “Never” for “Computer Sleep” . In the popup warning window, click OK.
-
Page 12: Connecting A Usb 3.0 Device
Install the supplied USB 3.0 cable between the LEX and a USB 3.0 port on the host computer. CAUTION: The Spectra 3022 will not operate on a USB 2.0 port; please ensure you connect to a USB 3.0 port. The USB 3.0 port will have a blue connector inside of it, whereas a USB 2.0 port will typically... -
Page 13: Checking The Installation
For Windows users, open Device Manager to confirm that the Spectra 3022 has installed correctly. Expand the entry for Universal Serial Bus controllers by clicking the + sign. If the Spectra 3022 has been installed correctly, you should find it listed as two “Superspeed Hub”s, or “3.0 Hub”s” . -
Page 14: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... - Page 15 5. Reconnect the REX unit to the AC power adapter. 6. In the Universal Serial Bus controllers section of Device Manager, check that the Spectra 3022 is recognized as two “Superspeed Hub”s or two 3.0 Hub”s It may be recognized as “Superspeed Hub” , note “3.0 Hub”...
-
Page 16: Contacting Technical Support
Icron Technologies Corporation product or service, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages. In no case shall Icron Technologies Corporation, its suppliers and licensors’... -
Page 17: Obtaining Warranty Service
Package the product appropriately for safe shipment and mark the RMA number on the outside of the package. The package must be sent prepaid to Icron Technologies Corporation. We recommend that you insure it or send it by a method that provides for tracking of the package. The repaired or replaced item will be shipped to you, at Icron Technologies Corporation’s expense, not later than thirty... -
Page 18: Technical Glossary
Technical Glossary USB Connectors USB cables have two classes of connectors. The Type A connectors are used to connect the cable from a USB device to a Type A port on a computer or hub. The Type B connectors are used to attach the USB cable from a USB host to a USB device or hub. -
Page 19: Specifications
Specifications Range Up to 100m (330 ft) USB Device Support & Throughputs USB 3.0 up to 5Gbps USB Host Support xHCI controllers (Intel, AMD, Renesas (NEC), Fresco, AsMedia) AC Adapters 100-240V AC Input, 5V DC Output, Locking Power Available to USB Device at REX 900mA for each USB Port Enclosure Material Anodized Aluminum... - Page 20 Icron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC Canada V5C 5T5 Tel: +1 604 638 3920 Fax: +1 604 638 3930 icron.com...
