Icron USB 3-2-1 Starling 3251C Quick Start Manual

USB 3-2-1 Starling™ 3251C
1-Port USB 3-2-1 Fixed Range
Point-to-Point Extender System
Quick
Start
Guide
Package Contents:
ƒ USB 3-2-1 Starling 3251C Local Extender
ƒ USB 3-2-1 Starling 3251C Remote Extender
ƒ USB 3.2 USB-C Cable
ƒ Custom Link Cable
ƒ Cable Pulling Eye
ƒ Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.

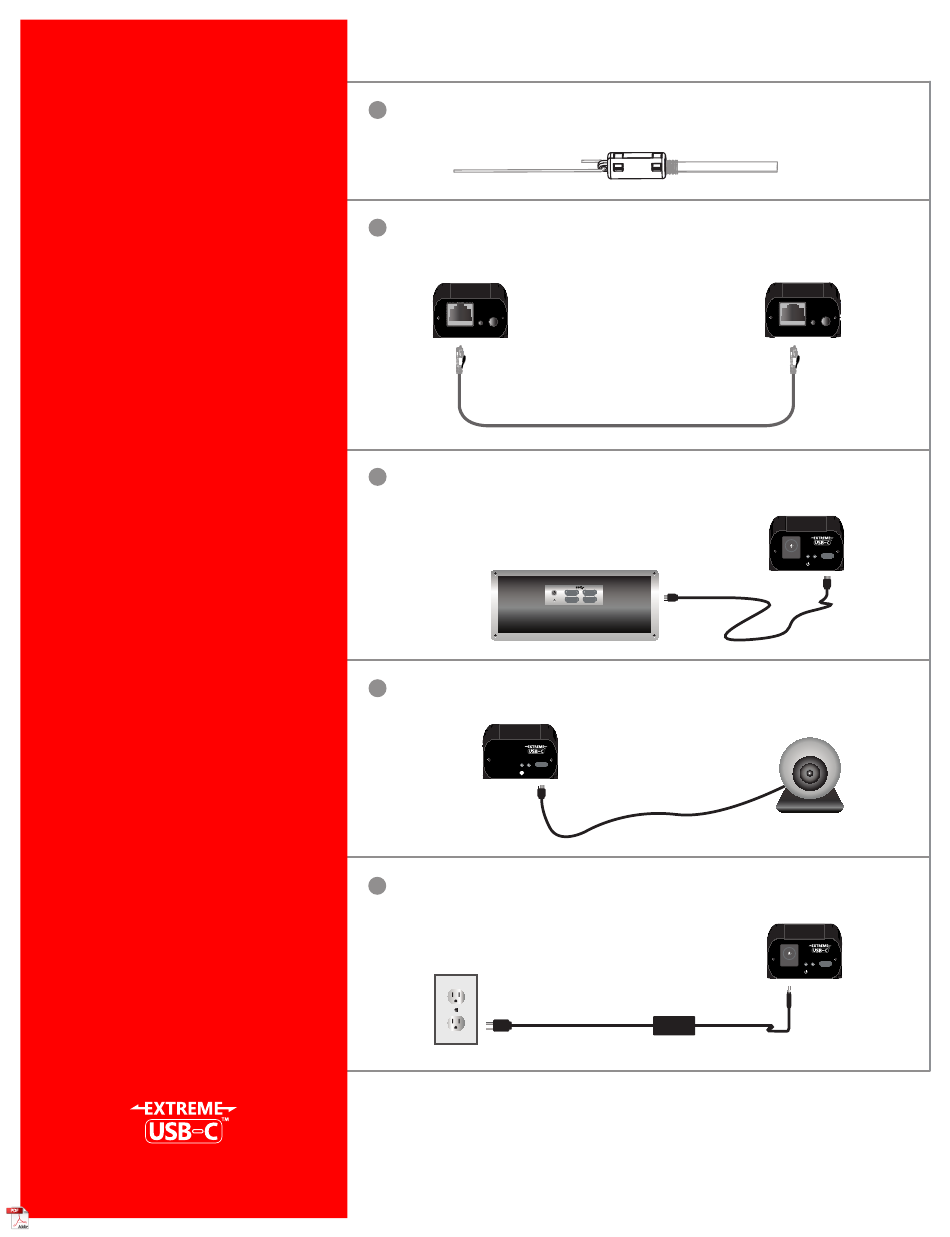

1
1 Recommended:
1
Use included Cable Pulling Eye to route included Link Cable through a conduit.
Place extenders where desired and connect the included Link Cable to the
2
LINK ports on the Local and Remote Extenders.
Local Extender (back view)
Link Mode Config
Only use the included cable the product is
rated for (10m, Plenum or Non-Plenum)
3 3
Connect the Local Extender HOST USB port to the computer's USB-C port
using the included USB-C Cable.
Connect the USB Device to the Remote Extender DEVICE USB port.
4
Remote Extender (front view)
Link Device
If Power LED illuminates amber indicating a warning, plug an approved 5V 3A
5
power supply (not included) into the Local Extender.
Includes the ExtremeUSB-C™ suite of features:
▪ Transparent USB extension supporting USB 3, 2 and 1
▪ True plug and play; no software drivers required
▪ Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
Computer
5V 3A AC Adapter (sold separately)
Remote Extender (back view)
Link Mode Config
Local Extender (front view)
5V DC Link Host
5V DC Link Host
