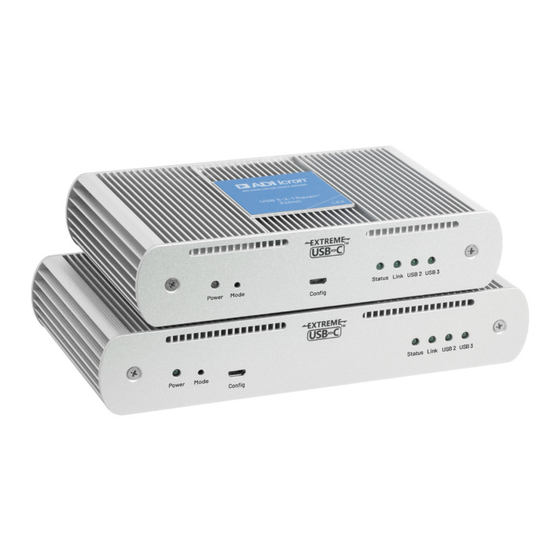

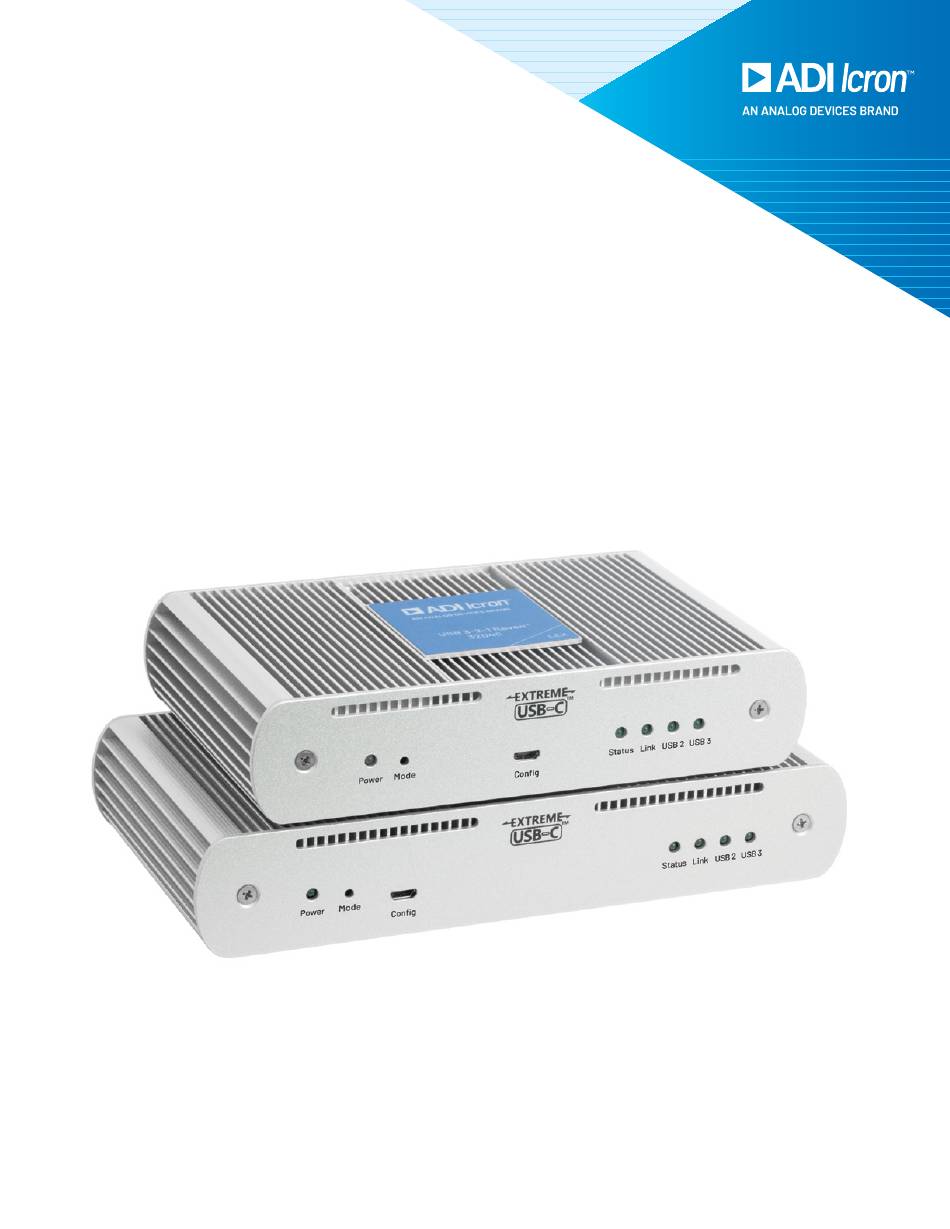

- Page 1 User Guide USB 3-2-1 Raven 3204C ™ 4-Port USB 3.1 (5Gbps) 100m CAT 6a/7 USB-C Point-to-Point Extender System...
- Page 2 CE Statement We, Icron, an Analog Devices brand, declare under our sole responsibility that the USB 3-2-1 Raven 3204C, to which this declaration relates, is in conformity with European Standards EN 55032, EN 55035, EN 61000, EN 62368-1 and RoHS Directive 2011/65/EU + 2015/863/EU.
-
Page 3: Table Of Contents
5 The LEX Unit 7 The REX Unit 8 Installation Guide Raven Series Category Cabling Guidelines 8 Requirements for Installing Raven 3204C System 9 Preparing Your Site 9 Installing the LEX Unit 10 Connecting the LEX to the REX 10... -
Page 4: Introduction
Quick Start Guide Features The Raven 3204C incorporates ExtremeUSB-C™ technology, enabling users to extend USB 3.1 beyond the standard 3m cable limit for USB 3.1 peripheral devices. This extender system is composed of two individual units: the LEX and the REX, and has the following key features. -
Page 5: The Lex Unit
The LEX Unit The LEX (Local Extender) unit connects to the computer using a standard USB-C cable (included). If the host supplies 15W, it can power the LEX. Alternately, power for this unit can be provided by the included 24V 1A adapter. Front Faceplate Power Mode... - Page 6 The LEX Unit Continued ITEM TYPE DESCRIPTION Link Port Accepts RJ45 connector for CAT 6a/7 cabling to connect the LEX to the REX. (RJ45) 1GbE Ethernet 100/1000Mbps LAN pass-through channel connects to a network or Ethernet device. USB Host Port USB 3 Type-C receptacle used to connect LEX to the USB 3 host computer.
-
Page 7: The Rex Unit
The REX Unit The REX unit provides four USB 3 ports: 2 Type-C (5Gps data only) and 2 Type-A ports for standard USB devices. Up to 30 devices may be connected by attaching USB hubs to the REX. Powered by an external AC 24V 2.71A adapter, the REX supplies 3A per USB-C port and 1.2A per USB-A port. -
Page 8: Installation Guide
The REX Unit Continued ITEM TYPE DESCRIPTION Link Port Accepts RJ45 connector for CAT 6a/7 cabling to connect the REX to the LEX. (RJ45) 1Gb Ethernet 100/1000Mbps LAN pass-through channel connects to a network or Ethernet device. Device Ports Accepts all USB 3.2 1x1, 2.0 and 1.1 devices.* (Type A) Device Ports Accepts all USB 3.2 1x1, 2.0 and 1.1 devices.*... -
Page 9: Requirements For Installing Raven 3204C System
NOTE: If you are using surface cabling, the Raven 3204C supports a maximum distance of 100m. Install the CAT 6a/7 cabling as desired and terminate it with the appropriate RJ45 ends. If using premise cabling, (in-building network infrastructure), ensure your cabling is installed between the two locations and does not exceed 100m and that it meets CAT 6a/7 specification. -
Page 10: Installing The Lex Unit
LEX and REX units may not be installed properly or is defective. 2. For Windows users (10 or 11), open Device Manager to confirm that the Raven 3204C system has been installed correctly. Expand the entry for Universal Serial Bus controllers by clicking the “+” sign. If installed correctly, you should find two separate instances of “Generic USB Hub”... -
Page 11: Connecting A Usb Device
Compatibility The USB 3-2-1 Raven 3204C complies with USB 2.0 and USB 3.2 Gen 1x1 specifications governing the design of USB devices. However, there is no guarantee that all USB devices or hosts will be compatible as there are a number of different characteristics that may impact the operation of USB devices over extended distances. -
Page 12: Usb Extender Mounting Options
USB Extender Mounting Options The bottom of the Raven 3204C enclosures features four convenient pre-drilled holes for optional mounting. Based on your requirements, choose from two available mounting options: 1. USB Extender Mounting Kit (Purchased separately) Order Part #10-00620 Raven Silver Mounting Kit 2. -
Page 13: Option 2: Usb Extender Direct Surface Mounting
The stencil illustrations pictured below are only 50% of the original size. Access each stencil file (to scale) by clicking the illustration or link. ø 4.0mm (5/32”) 3204C Series LEX Stencil 42.0mm (1.6”) 130.5mm (5.1”) https://www.icron.com/pdf/3204c-series-lex-stencil.pdf ø 4.0mm (5/32”) 3204C Series REX Stencil 42.0mm (1.6”) 163.0mm (6.4”) https://www.icron.com/pdf/3204c-series-rex-stencil.pdf... -
Page 14: Troubleshooting
The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problems after following these instructions, please contact Icron Technical Support by visiting icron.com/support and create an online Support Ticket for further assistance. - Page 15 » The host computer’s USB 3 controller has malfunctioned. 5. If the problem is not resolved, contact Technical Support at icron.com/support. The USB 3 LED is » The USB cable connecting the 1. Ensure that the included USB 3 cable is being used...
- Page 16 6. If the second device does not operate as a USB 3 device, the extender may be malfunctioning. Contact Technical Support at icron.com/support. 7. If the second device operates as a USB 3 device as expected, then the first device may not be compatible with this extender.
- Page 17 PROBLEM CAUSE SOLUTION All LEDs are » Unit is or was operating at an 1. Check ambient temperature. Ensure temperature flashing and unsafe temperature. does not exceed 50°C (122°F). the system is operational. 2. Power cycle the unit to remove LED status. All LEDs are »...
-
Page 18: Specifications
Specifications RANGE Point-to-Point Up to 100m (330 ft) over CAT 6a/7 Cable USB DEVICE SUPPORT USB Bandwidth Up to 5Gbps Device Compatibility All Device Types and Classes (Control, Interrupt, Bulk, and Isochronous*) Host Compatibility OHCI, UHCI, EHCI, xHCI Available Current at REX Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port Maximum Devices Supports up to 30 devices... -
Page 19: Warranty Information
Hardware Remedies Icron’ s entire liability and the Licensee’ s exclusive remedy for any breach of warranty shall be, at Icron’ s option, either (a) return of the price paid, or (b) repair or replacement of hardware, which will be warranted for the remainder of the original warranty period or 30 days, whichever is longer. -
Page 20: Contacting Technical Support
Package your product appropriately for safe shipment and mark the RMA number on the outside of the package. The package must be sent prepaid to Icron to the address listed below. We recommend that you insure your shipment or ensure your shipping method provides package tracking. The repaired or replaced item will be shipped to you, at Icron’... -
Page 21: Technical Glossary
Technical Glossary Category 6a/7 (CAT 6a/7) Network Cabling Category 6a/7 cable is commonly also referred to as CAT 6a or CAT 7. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to Electromagnetic Interference (EMI). - Page 22 Icron | An Analog Devices Brand 4664 Lougheed Hwy., Suite 221 Burnaby, BC V5C 5T5 Canada t +1 604.638.3920 Visit icron.com For sales/general inquiries, visit icron.com/contact. For technical support, visit icron.com/support.
